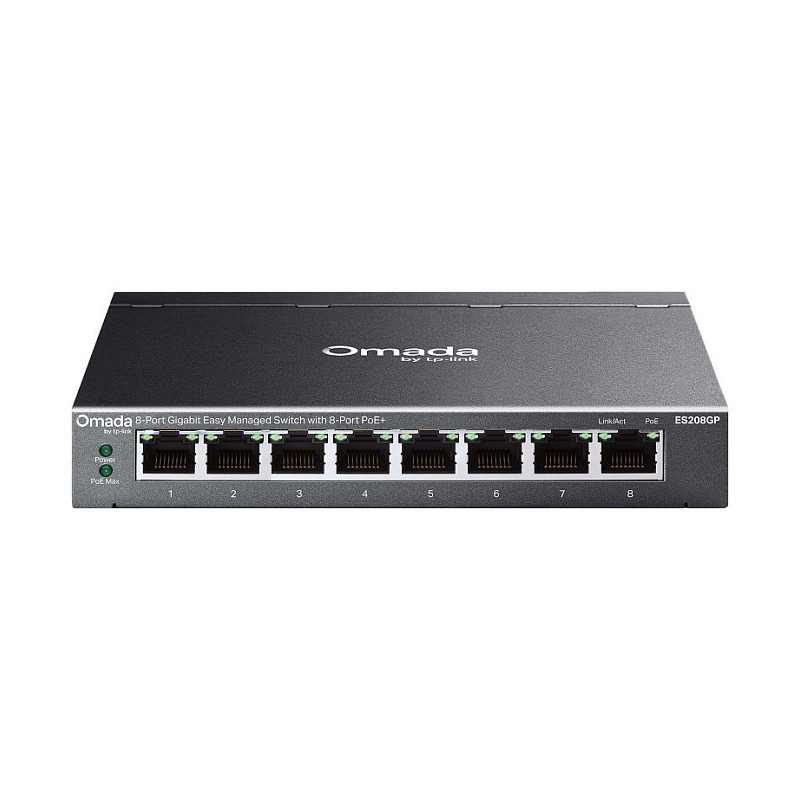

TP-Link Omada ES208GP network switch

TP-Link Omada ES208GP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 53 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs: 4000

Optical fiber

Transmission distance (max): 0.25 km

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 0.5 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Form factor: DIN rail
Product colour: Black
LED indicators: Yes

Power

Power source: DC
DC input voltage: 53 V
Input current: 1.31 A

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 64 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 158 mm
Depth: 100.7 mm
Height: 25.4 mm

Packaging content

Cables included: Power
Feature: Quick start guide

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
