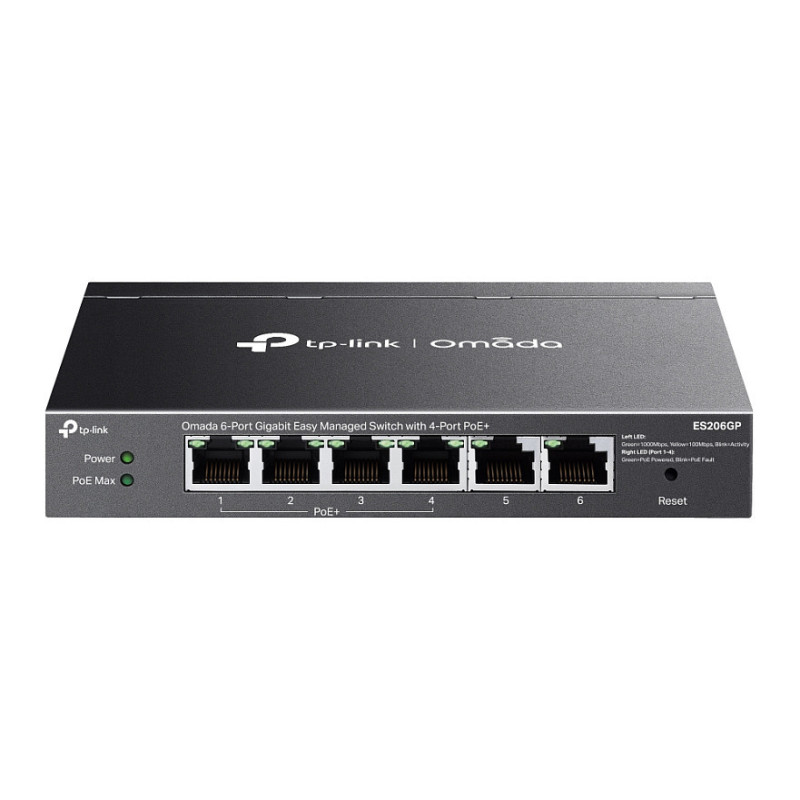

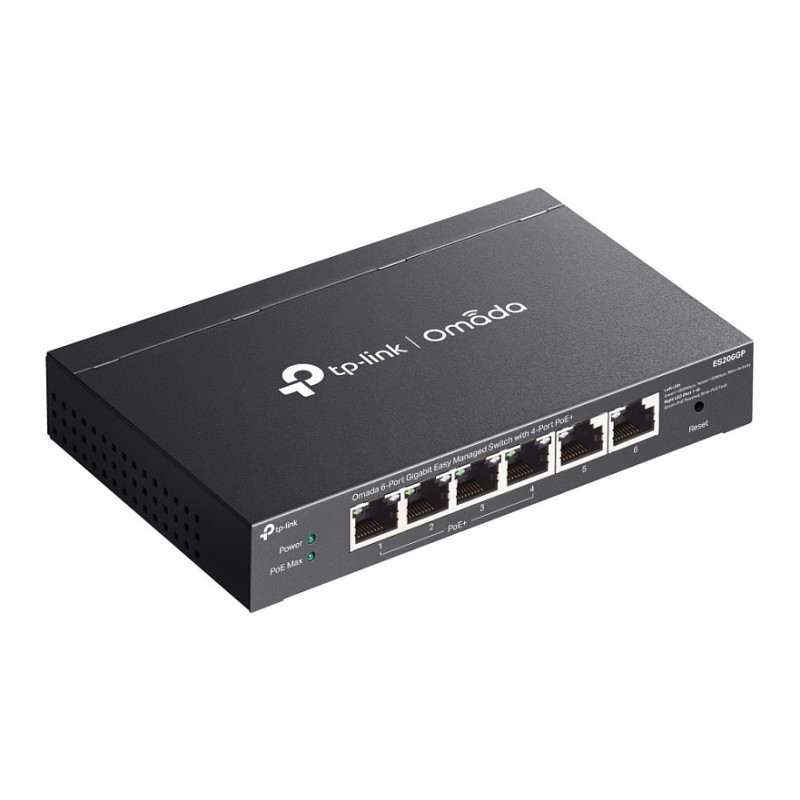

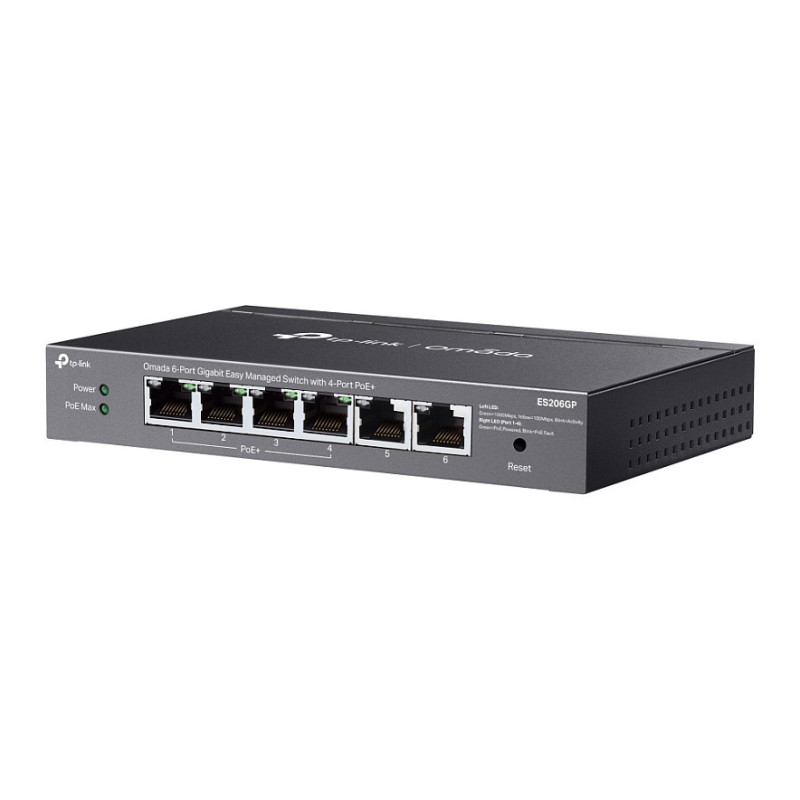

TP-Link Omada ES206GP network switch

TP-Link Omada ES206GP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Unified static configuration

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 6
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 6

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
Feature: Zero Touch Provisioning (ZTP)
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Fast leave
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN

Optical fiber

Transmission distance (max): 0.25 km

Data transmission

Switching capacity: 12 Gbit/s
Forwarding rate: 7.4 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection
Queue scheduling algorithms: Weighted Round Robin (WRR)

Design

Product colour: Black
Feature: Reset button
LED indicators: Yes

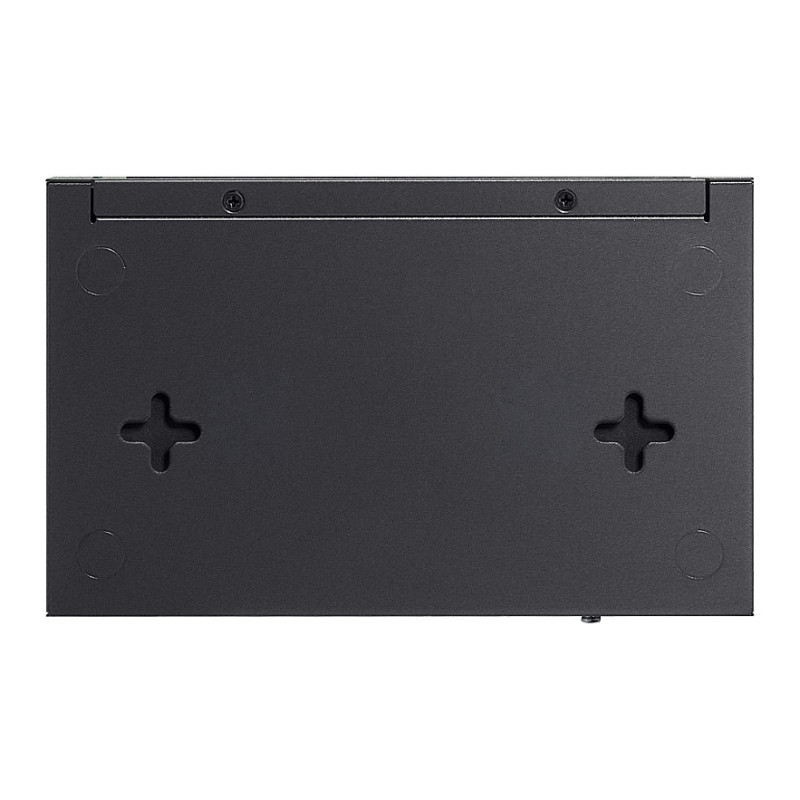

Feature: Wall mountable

Performance

Feature: Firmware upgradeable
Feature: Fanless

Power

Power source: DC
Feature: Power supply included
DC input voltage: 53.5 V
Input current: 1.31 A
Feature: Surge protection
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 65 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 158 mm
Depth: 101 mm
Height: 25 mm

Packaging content

Feature: User guide

Packaging data

Feature: AC adapter included
Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
