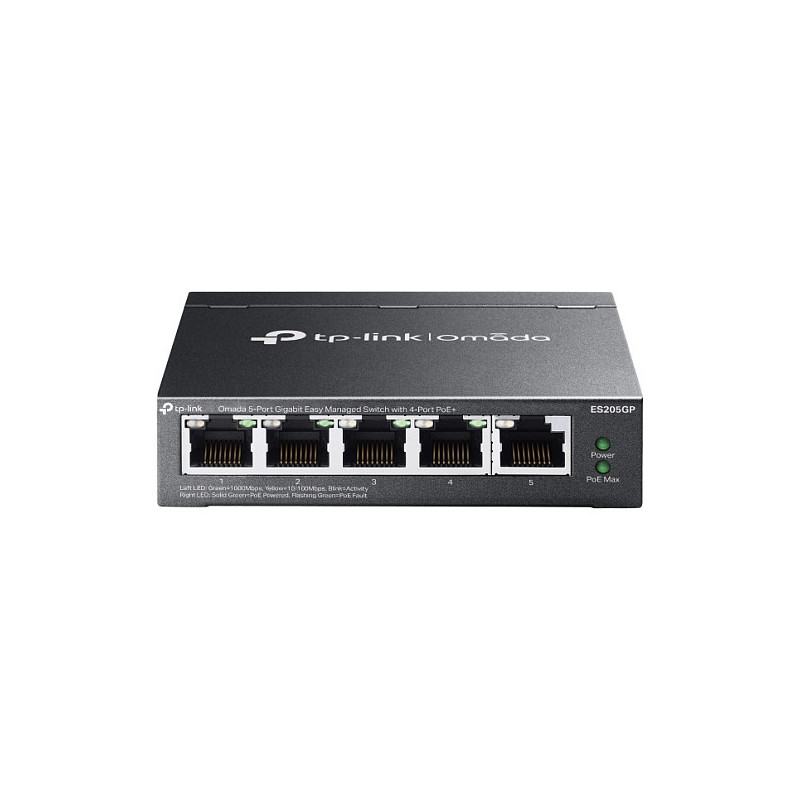

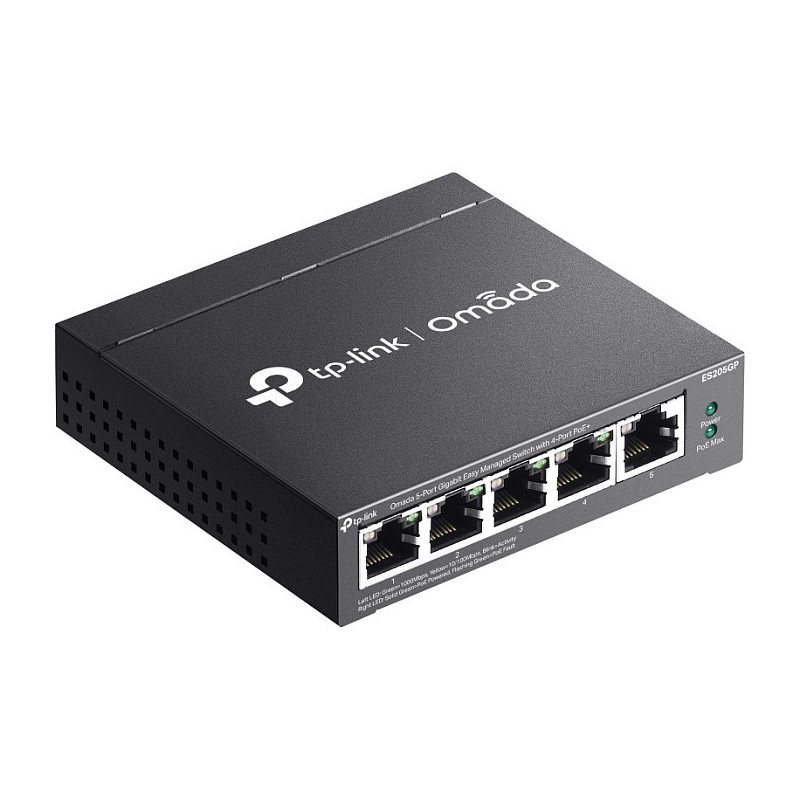

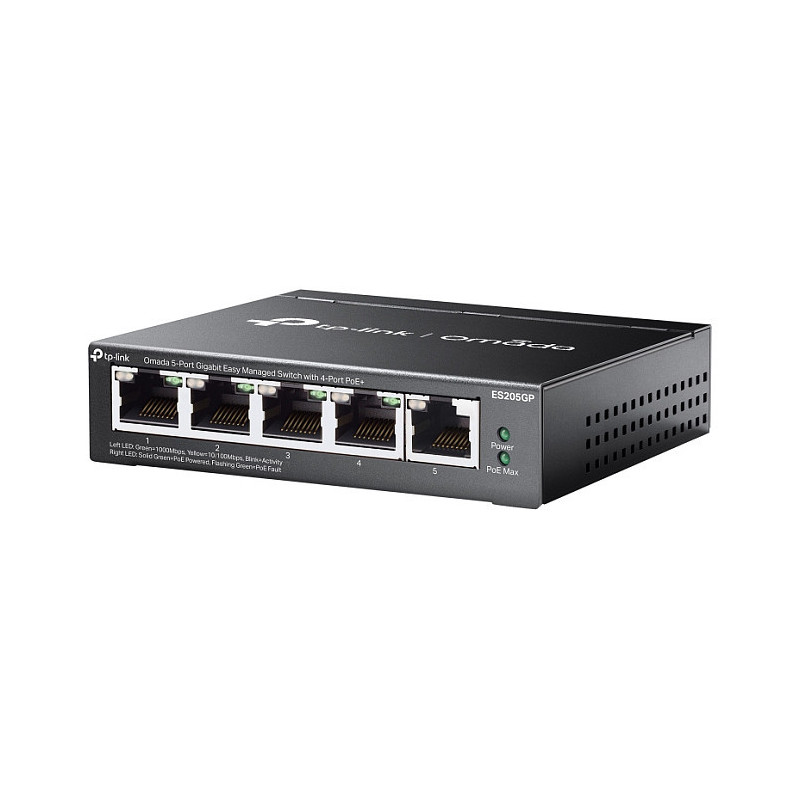

TP-Link Omada ES205GP network switch

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)


Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN

Optical fiber

Transmission distance (max): 0.25 km

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.4 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection

Design

Product colour: Black

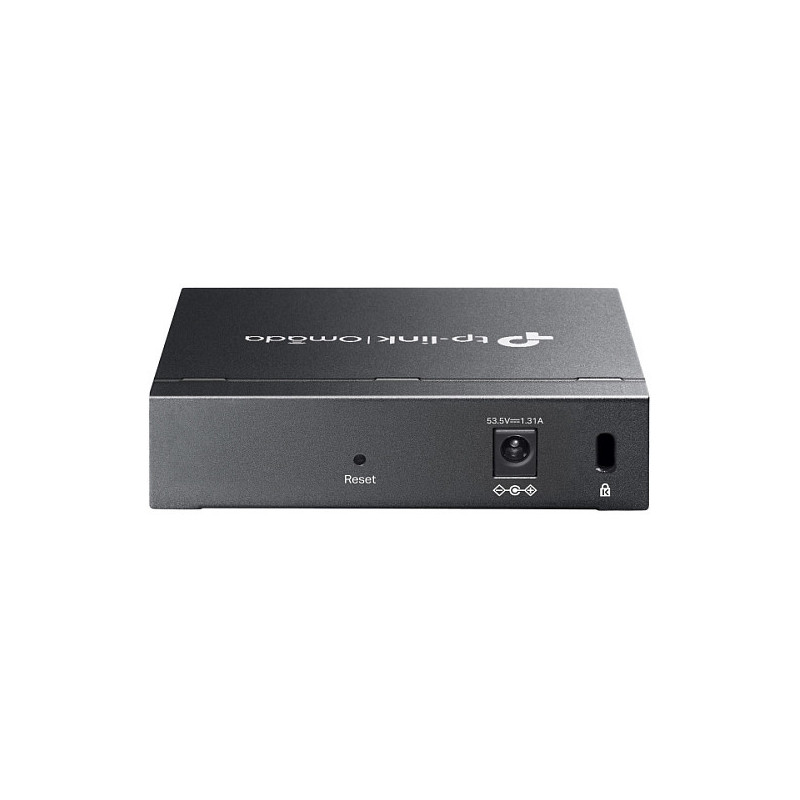

Feature: Reset button
LED indicators: Yes

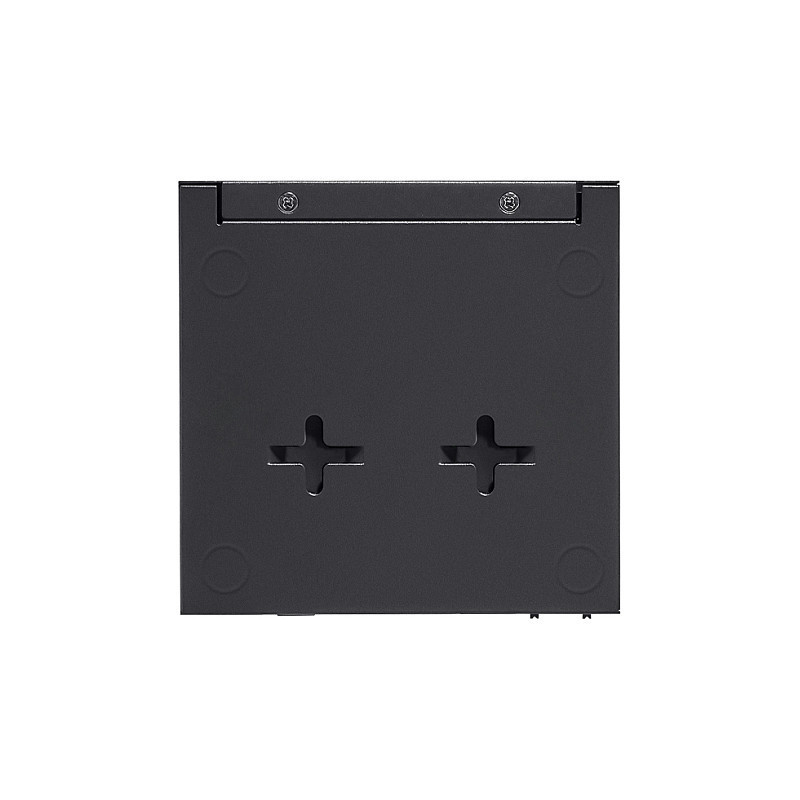

Feature: Wall mountable

Performance

Feature: Fanless

Power

Power source: AC/DC
Feature: Power supply included
DC input voltage: 53.5 V

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 65 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 100 mm
Depth: 98 mm
Height: 25 mm

Packaging content

Feature: User guide

Packaging data

Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
