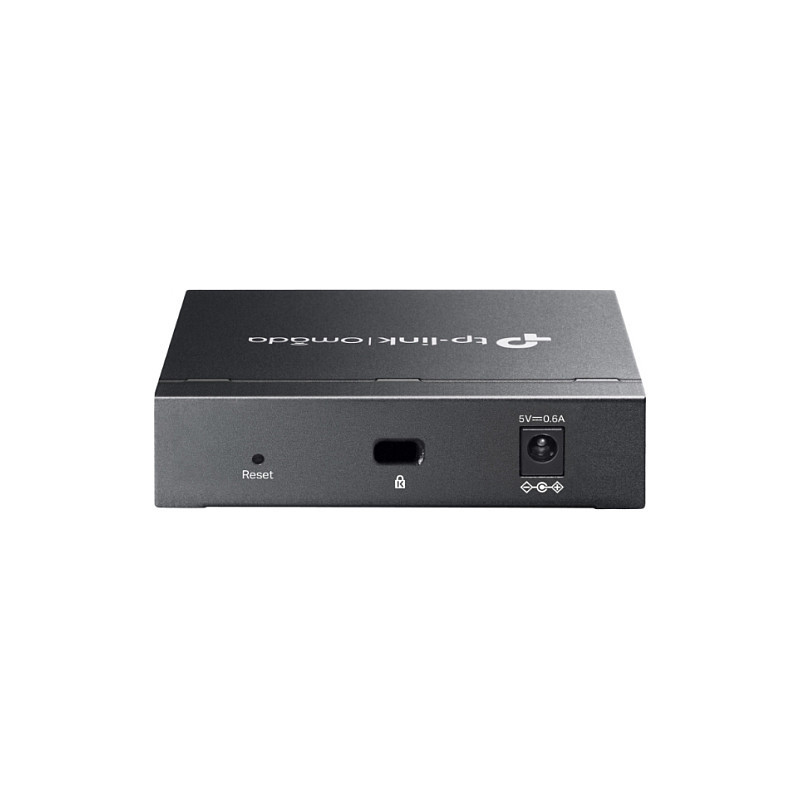

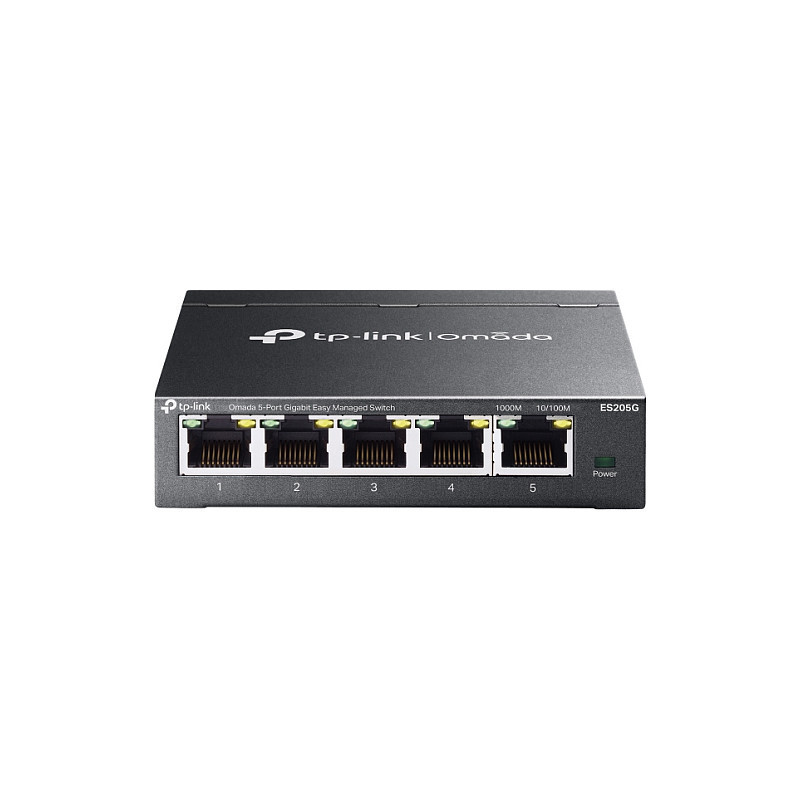

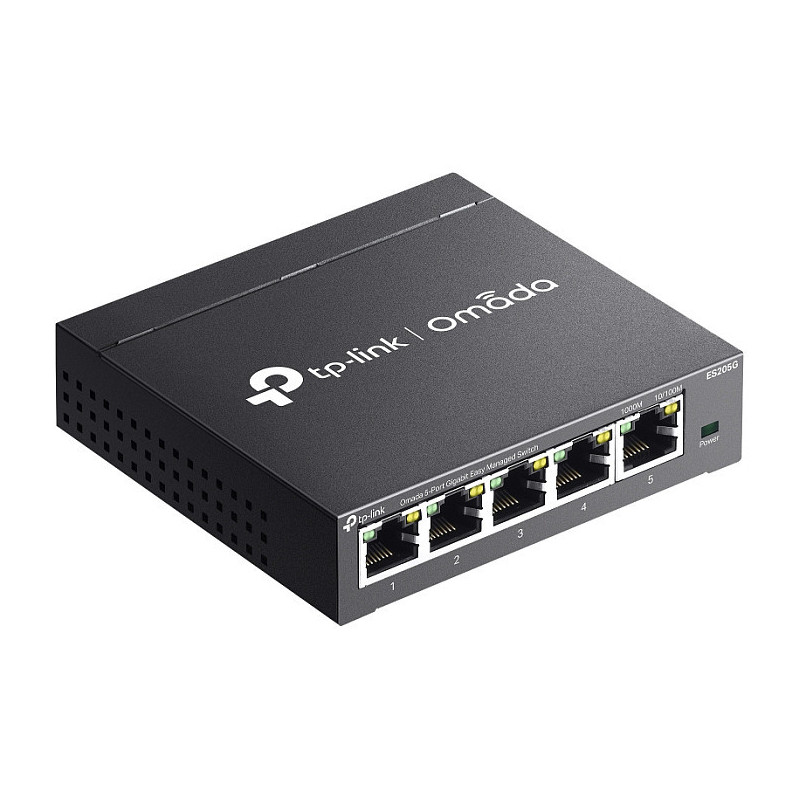

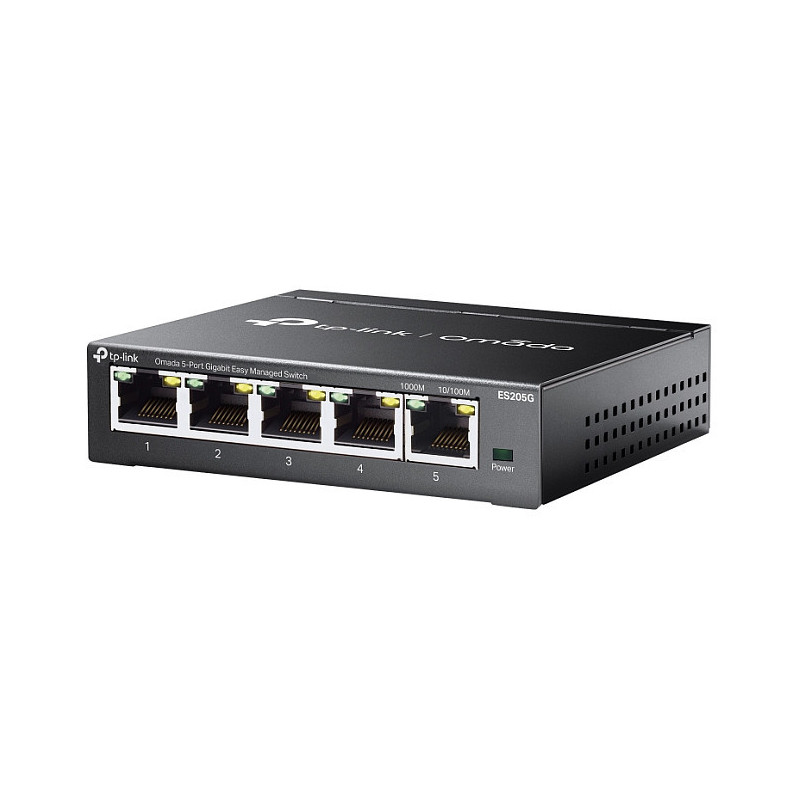

TP-Link Omada ES205G network switch

TP-Link Omada 5-Port Gigabit Easy Managed Switch. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x. DC input voltage: 5 V. Wall mountable

Omada 5-Port Gigabit Easy Managed Switch

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.4 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection

Design

Product colour: Black
Feature: Reset button
LED indicators: Yes

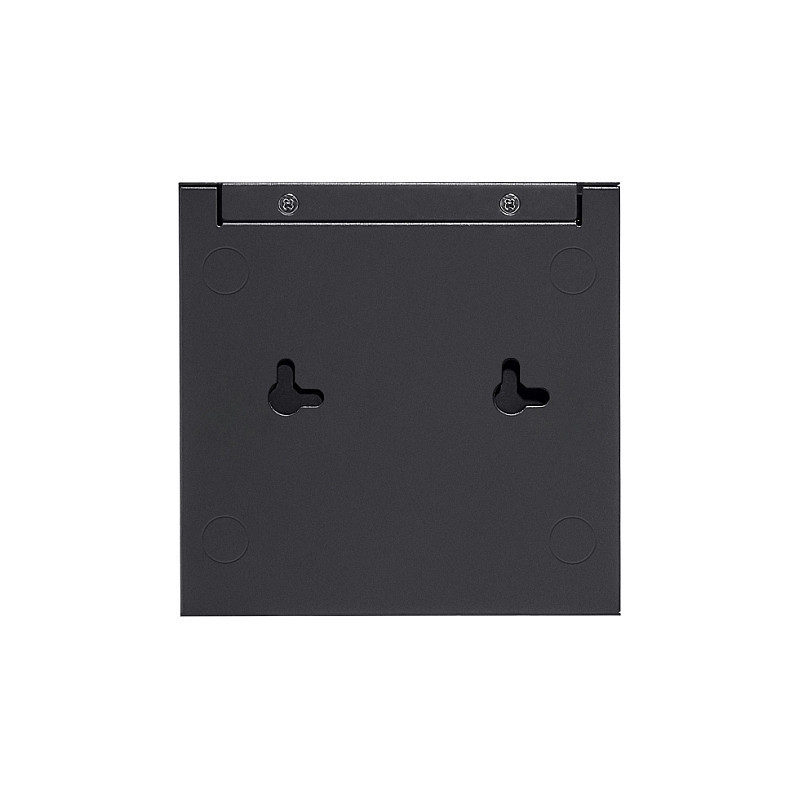

Feature: Wall mountable

Performance

Feature: Fanless

Power

Power source: AC/DC
Feature: Power supply included
DC input voltage: 5 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 100 mm
Depth: 98 mm
Height: 25 mm

Packaging content

Feature: User guide

Packaging data

Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
