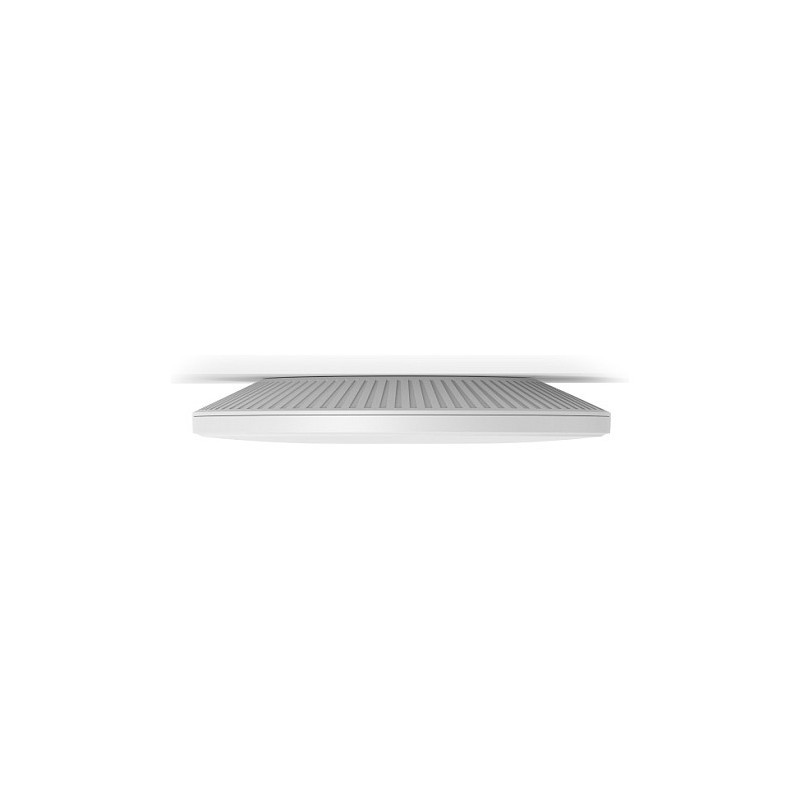

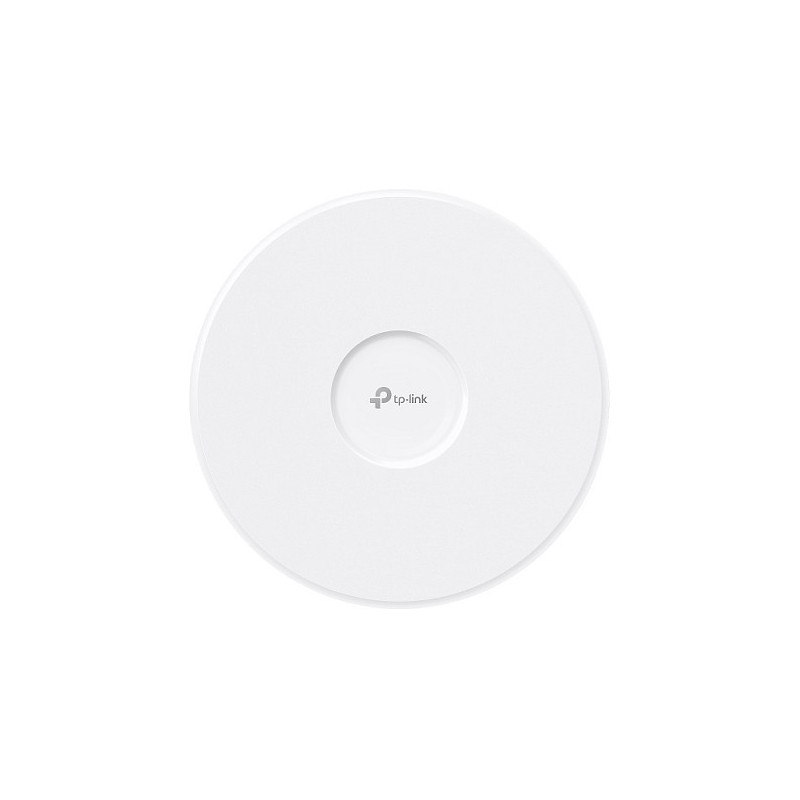

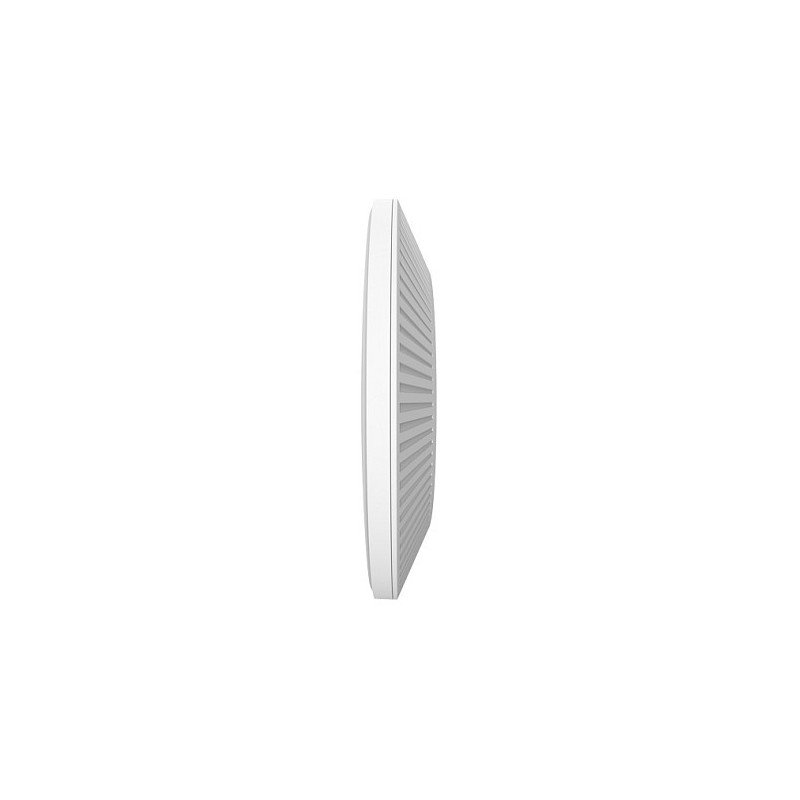

TP-Link Omada EAP783 wireless access point

TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 19000 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.

Two 10G PoE++ Ports
Boosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.

Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimize interference for your network.

Intelligent Power Management
Offers more reliable network operation for your business.

Centralized Cloud Management
Manage the whole network locally or from the cloud.

Omada Mesh Technology
More flexible and convenient wireless deployment.△

PoE++ Power
Supports both 12V DC and 802.3bt PoE++ for flexible installations.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 19000 Mbit/s
Maximum data transfer rate (2.4 GHz): 1376 Mbit/s
Maximum data transfer rate (5 GHz): 5760 Mbit/s
Maximum data transfer rate (6 GHz): 11520 Mbit/s
Ethernet LAN data rates: 10000 Mbit/s
Frequency band: 2.4 - 6 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Number of users: 760 user(s)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support
Feature: Rate limiting
Feature: Flow control support
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Access Control List (ACL)

Ports & interfaces

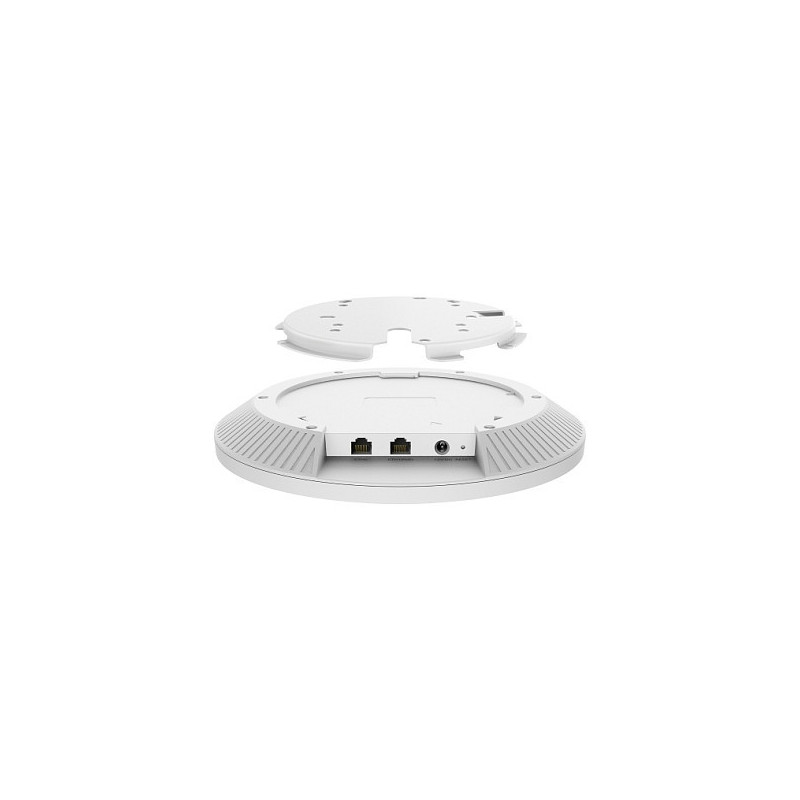

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 12 V

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal

Weight & dimensions

Width: 280 mm
Depth: 280 mm
Height: 46.5 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
