TP-Link Omada EAP772 wireless access point

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 9300 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,.... Ethernet LAN data rates: 2500 Mbit/s. Product colour: White
Ultra-Thin Enterprise WiFi 7 Access Point
- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1× 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology

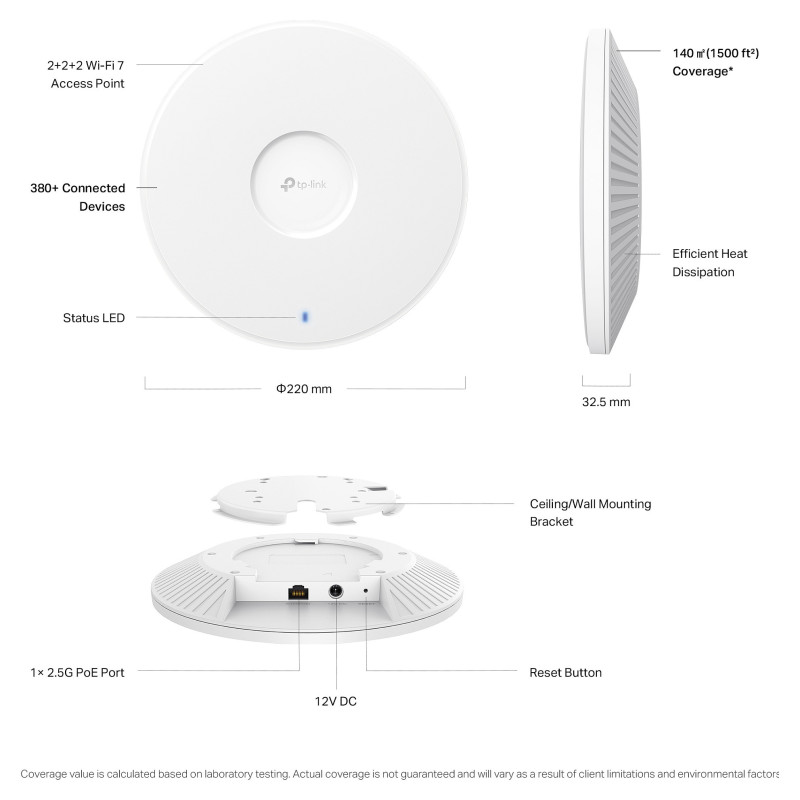

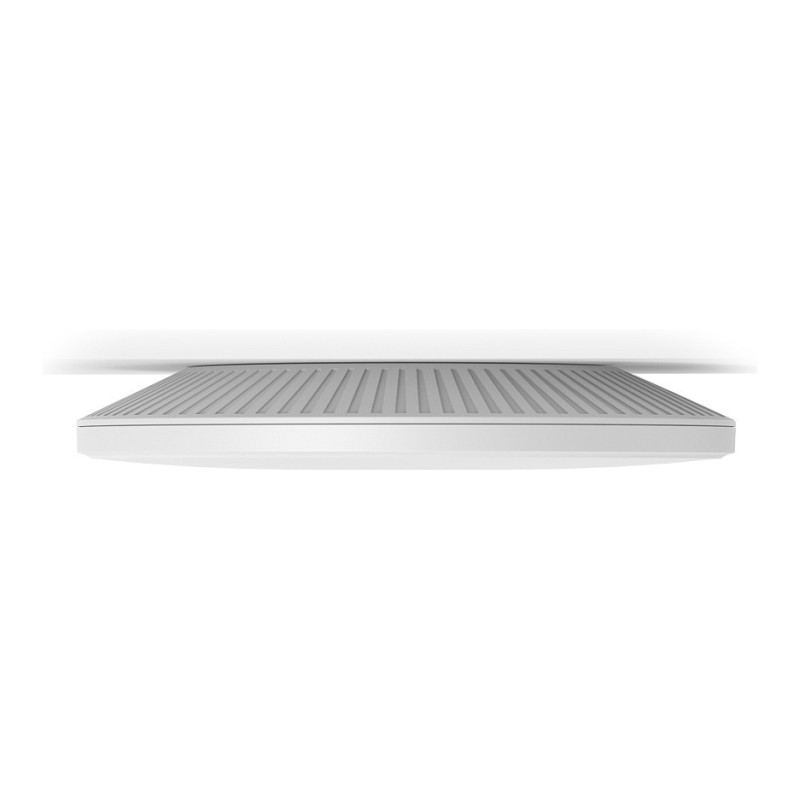

Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 9300 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2880 Mbit/s
Maximum data transfer rate (6 GHz): 5760 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Number of users: 380 user(s)
Feature: Bluetooth
Bluetooth version: 5.2
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming

Security

Security algorithms: SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 24
Feature: Remote Authentication Dial-In User Service (RADIUS)
Feature: Access Control List (ACL)

Management features

Feature: Web-based management

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Design

Placement: Ceiling, Wall
Product colour: White
LED indicators: Yes

Antenna

Antenna type: Internal

Certificates

Certification: CE, FCC, RoHS, IC

Weight dimensions

Width: 220 mm
Depth: 220 mm
Height: 32.5 mm

Packaging content

Quantity per pack: 1 pc(s)

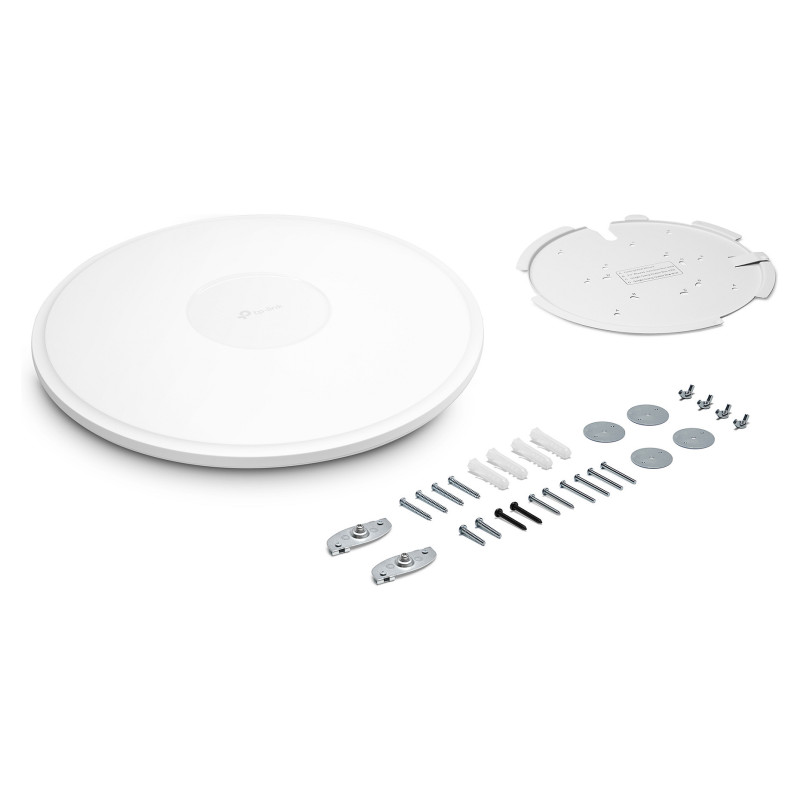

Feature: Mounting kit

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
