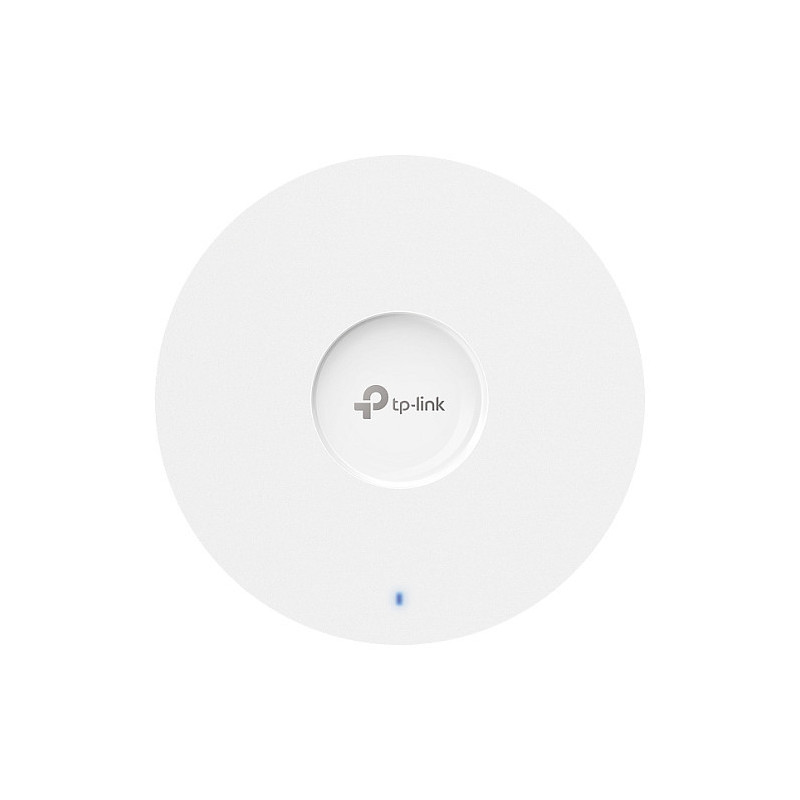

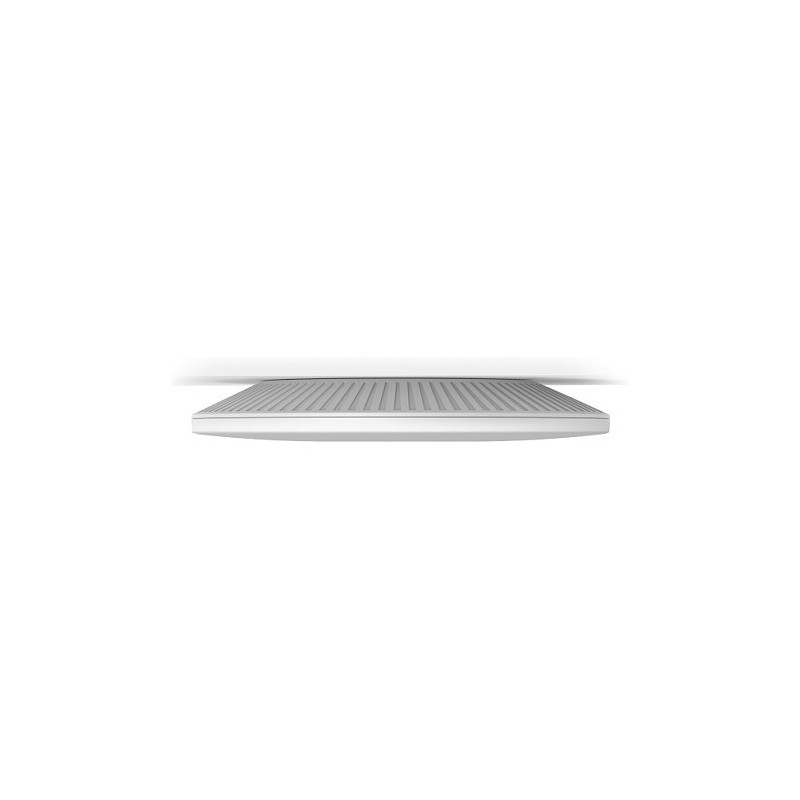

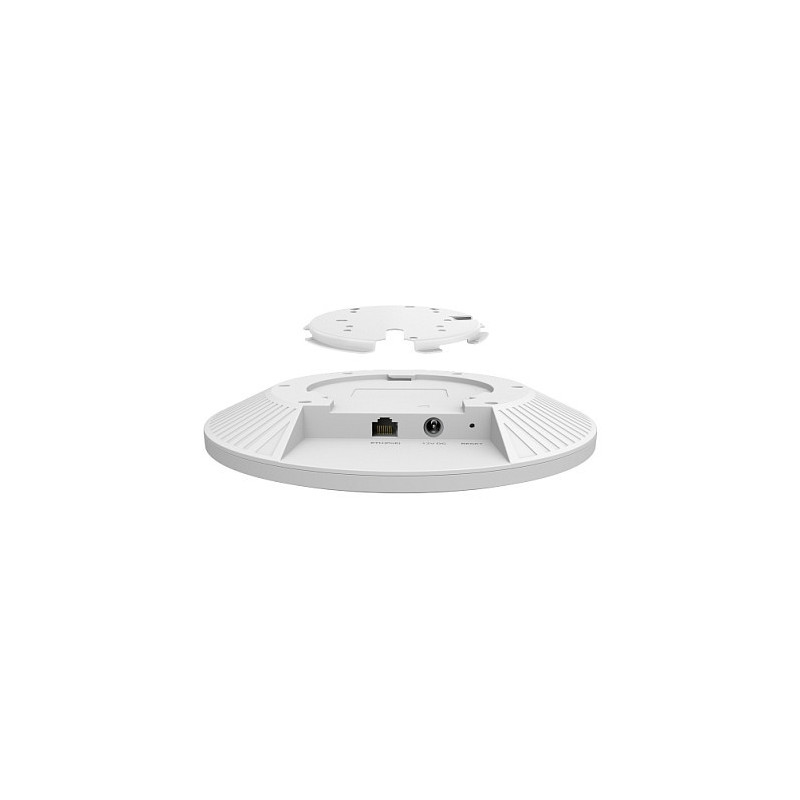

TP-Link Omada EAP683 UR wireless access point

TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 6000 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 6000 Mbit/s
Maximum data transfer rate (2.4 GHz): 1148 Mbit/s
Maximum data transfer rate (5 GHz): 4804 Mbit/s
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Frequency band: 2.4 - 6 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Number of users: 510 user(s)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Fast roaming
Feature: VLAN support
Feature: Rate limiting
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming

Security

Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Feature: Access Control List (ACL)

Management features

Feature: Syslog
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 12 V

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna gain level (max): 5 dBi

Weight & dimensions

Width: 220 mm
Depth: 220 mm
Height: 32.5 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
