TP-Link Omada EAP673 wireless access point

TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5400 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
High-End Business WiFi 6 to Power Up Your Business
AX5400 Ceiling Mount Wi-Fi 6 Access Point
AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz; 574 Mbps on 2.4 GHz
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Auto Channel Selection and Power Adjustment
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment§
Seamless Roaming
Uninterrupted streaming when moving between APs§
PoE+ Powered
Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations
Designed for Business Environments
Requiring High-Performance WiFi
Hospitality
High-quality and full coverage Guest WiFi
Education
High-security WiFi to connect more devices
Shopping Mall
Seamless marketing WiFi coverage to boost business
Office
Stable, seamless, and high-security WiFi coverage
Meeting Room
Faster streaming, downloading, video conferencing, and more
High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Blazing-Fast AX5400 Wi-Fi 6 Speeds
High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Deployment Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Boosted Network Security and Efficiency
Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 5400 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 4804 Mbit/s
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users: 250 user(s)
Automatic channel selection: Yes
Automatic channel scanning: Yes
MIMO: Yes
MIMO type: Multi User MIMO
VLAN support: Yes
Virtual LAN features: VLAN mapping
Rate limiting: Yes
Flow control support: Yes
Band steering: Yes
Airtime Fairness (ATF): Yes
Quality of Service (QoS) support: Yes
BeamForming: Yes

Security

Security algorithms: SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise

Management features

Web-based management: Yes
Syslog: Yes
Firmware upgradeable: Yes

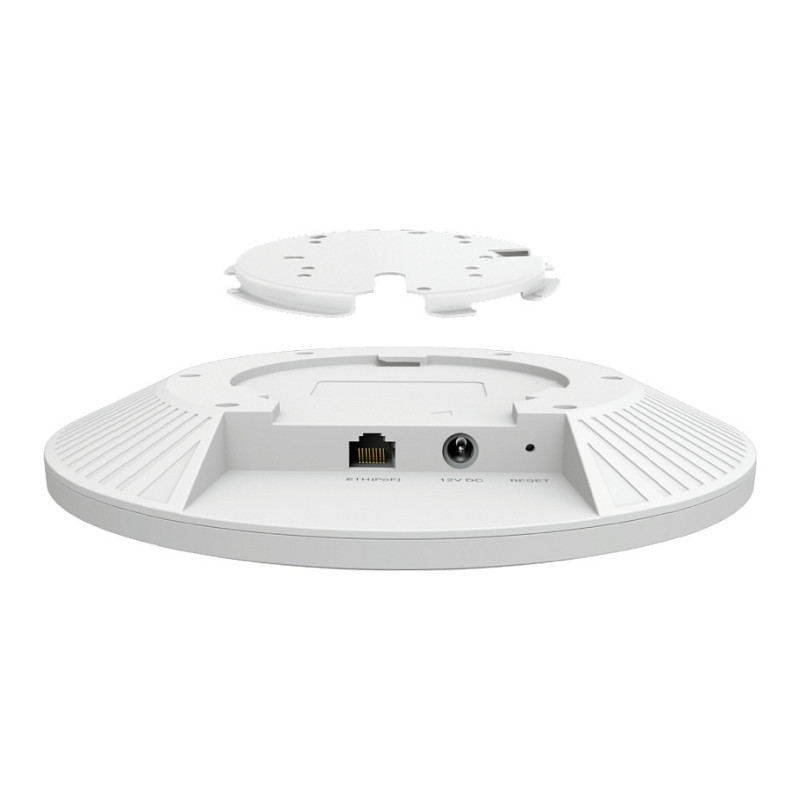

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
DC voltage range: 12 V

Design

Placement: Ceiling, Wall
Product colour: White
Reset button: Yes
LED indicators: Yes

Antenna

Antenna type: Internal

Weight dimensions

Width: 220 mm
Depth: 220 mm
Height: 32.5 mm

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
