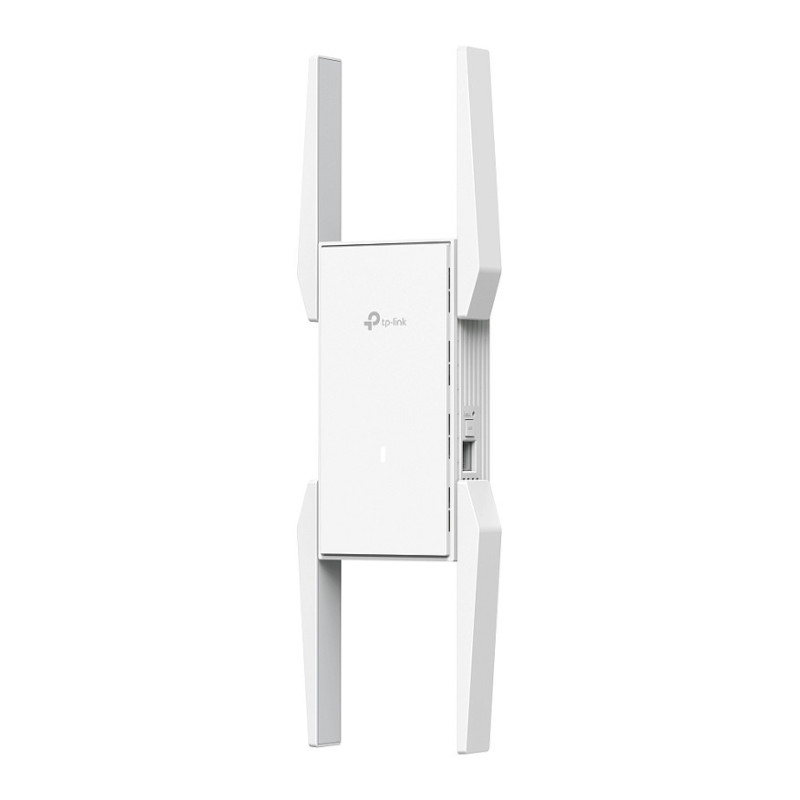

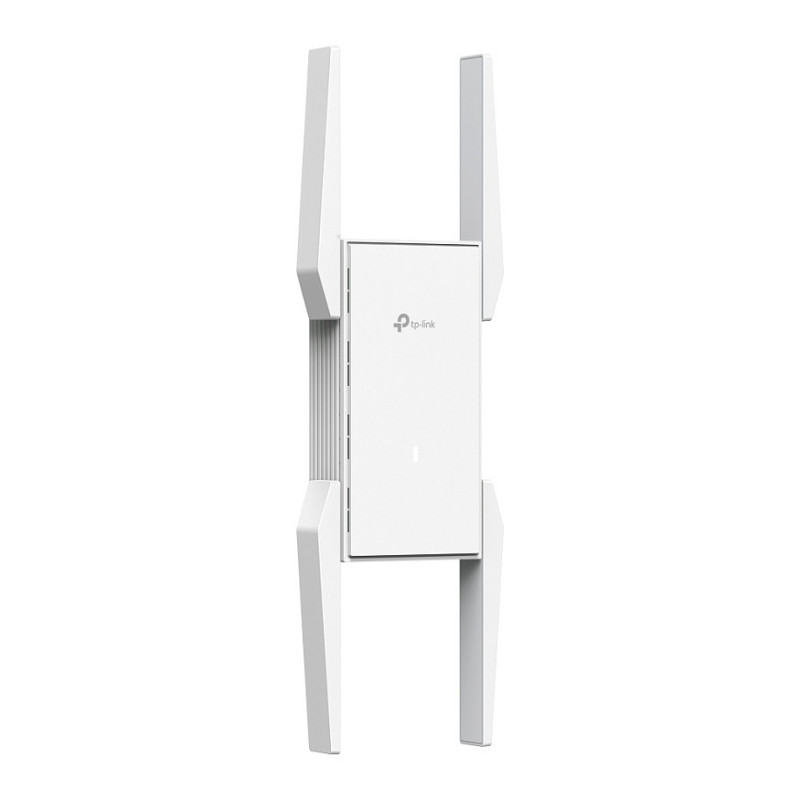

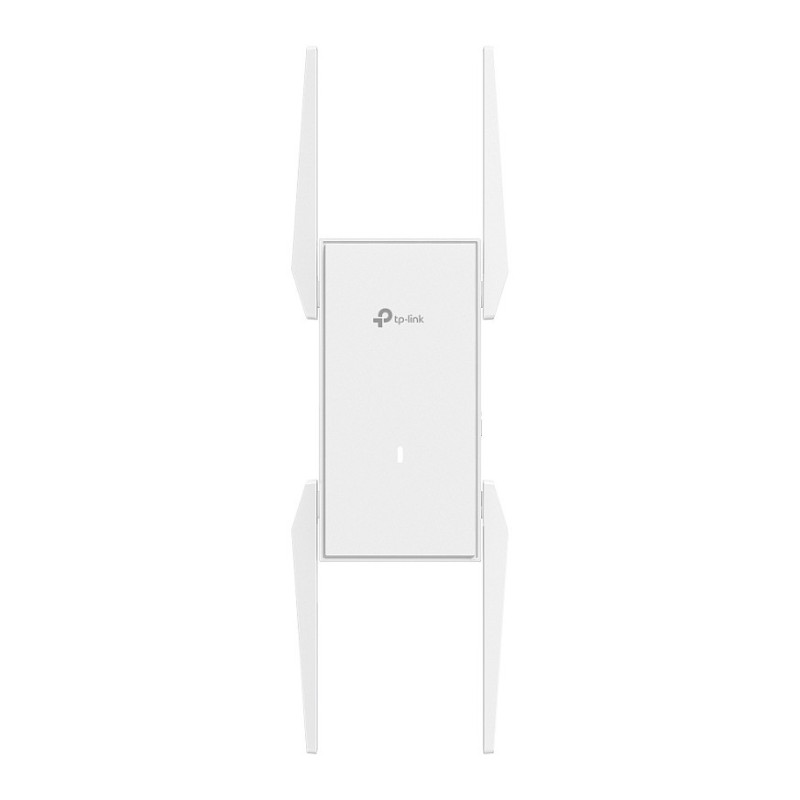

TP-Link Omada EAP673-Extender

TP-Link Omada EAP673-Extender. Type: Network repeater, Ethernet LAN data rates: 10,100,1000 Mbit/s, Number of users: 250 user(s). Antenna gain level (max): 5 dBi, Antenna type: External, Transmitting power (CE): <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <30 dBm (5 GHz, band3, EIRP). Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi data rate (max): 4800 Mbit/s. Product colour: White, Housing material: Polycarbonate (PC), Quantity per pack: 1 pc(s). AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (max): 18 W

Seamless Coverage to Remove Dead Zones
EAP673-Extender, featuring four high-gain antennas and mesh technology, eliminates dead zones, extending coverage by 1500 ft² (140 m²) . Enjoy seamless roaming for uninterrupted connectivity.

Effortless Installation with AC Power
Overcome cabling challenges with EAP673-Extender, delivering seamless Wi-Fi via AC power. Enjoy stable, high-performance coverage—no extra wires needed.

AP Mode for Flexible Deployment
EAP673-Extender's built-in AP mode delivers a robust, stable Wi-Fi signal without a PoE switch or infrastructure renovations, enhancing flexibility and reducing costs.

Performance

Type: Network repeater
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: BeamForming
Number of users: 250 user(s)

Antenna

Antennas quantity: 4
Antenna gain level (max): 5 dBi
Antenna type: External
Transmitting power (CE): <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <30 dBm (5 GHz, band3, EIRP)
Transmitting power (FCC): <25 dBm (2.4 GHz) <28 dBm (5 GHz)

Network

Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max): 4800 Mbit/s
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Security algorithms: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Wi-Fi Multimedia (WMM)/(WME)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Design

Product colour: White
Housing material: Polycarbonate (PC)
Quantity per pack: 1 pc(s)
Feature: Reset button

Management features

Feature: Airtime scheduling

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 18 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 160 mm
Depth: 80 mm
Height: 37.8 mm
Weight: 436.6 g

Packaging content

Feature: Quick start guide

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), JRF, RCM, RoHS, UL, VCCI
