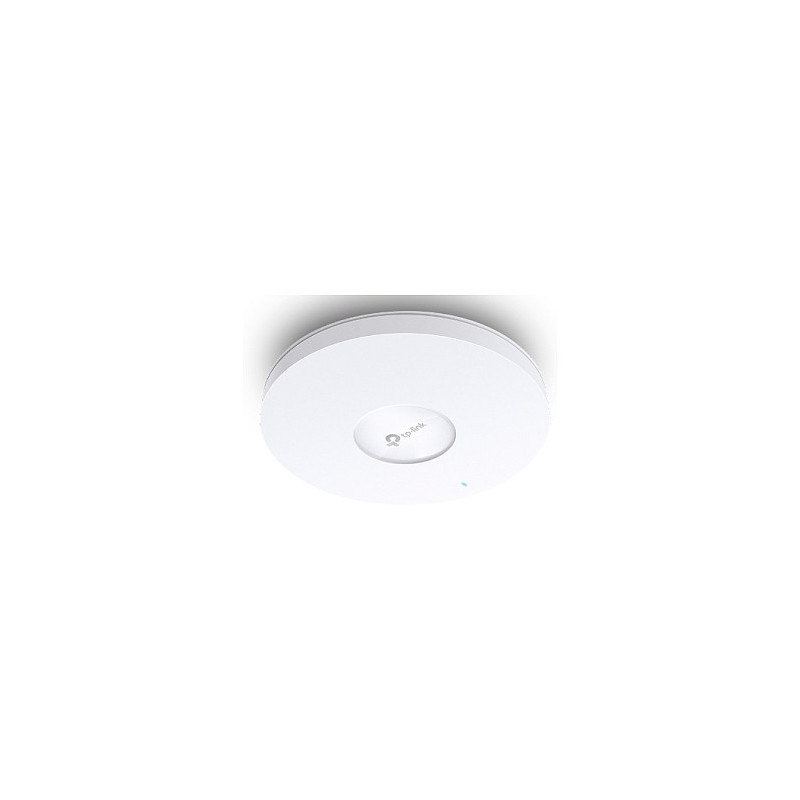

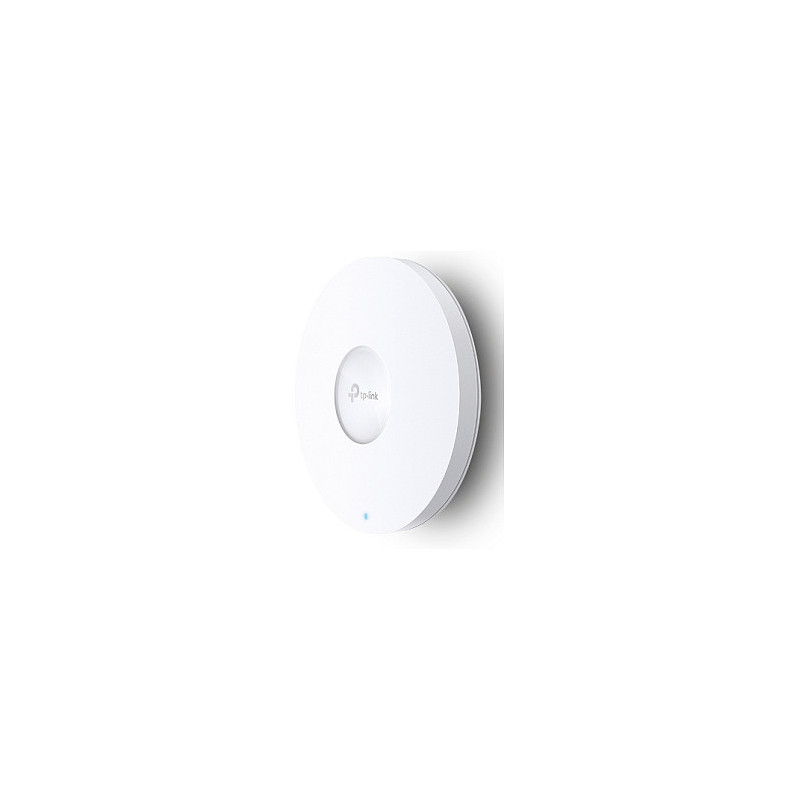

TP-Link Omada EAP653 UR wireless access point

TP-Link Omada EAP653 UR. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2976 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

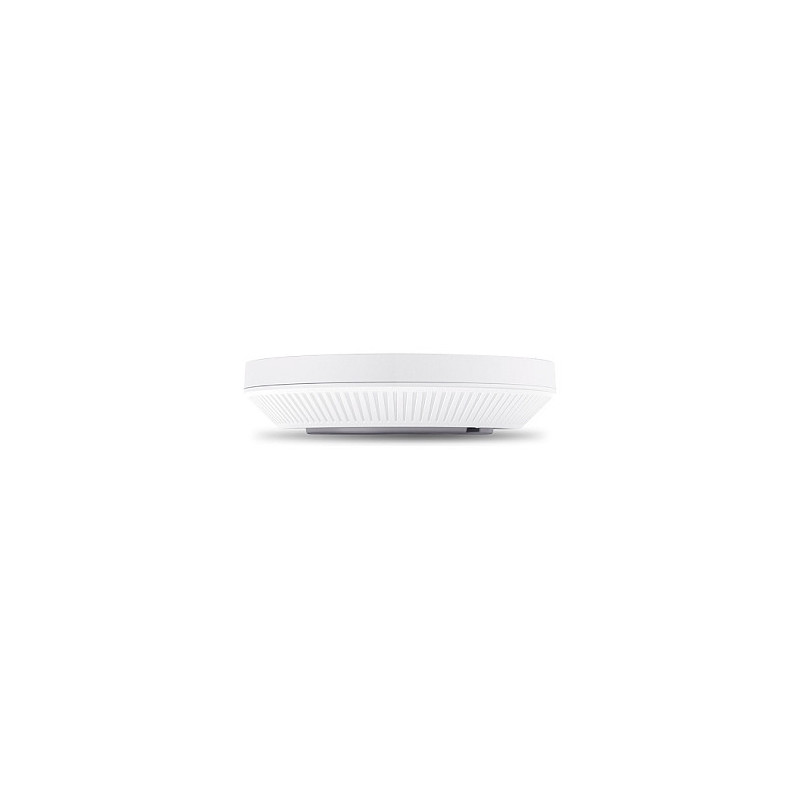

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.


Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login

Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2976 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Cabling technology: 10/100/1000Base-T(X)
Number of users: 250 user(s)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Fit AP mode features: Mesh networking
Feature: VLAN support
Feature: Rate limiting
Feature: Flow control support
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming
Transmitting power (CE): 27 dBm
Transmitting power (FCC): 22 dBm

Security

Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3
Feature: MAC address filtering

Management features

Feature: Web-based management
Feature: Syslog
Feature: Firmware upgradeable

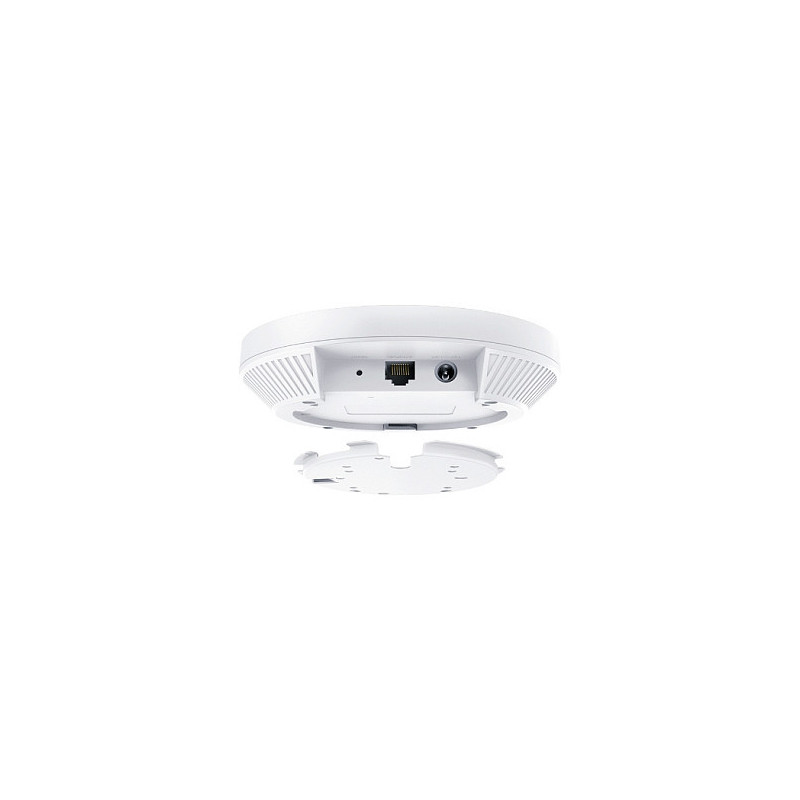

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 12 V

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal

Weight & dimensions

Width: 160 mm
Depth: 160 mm
Height: 33.6 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
