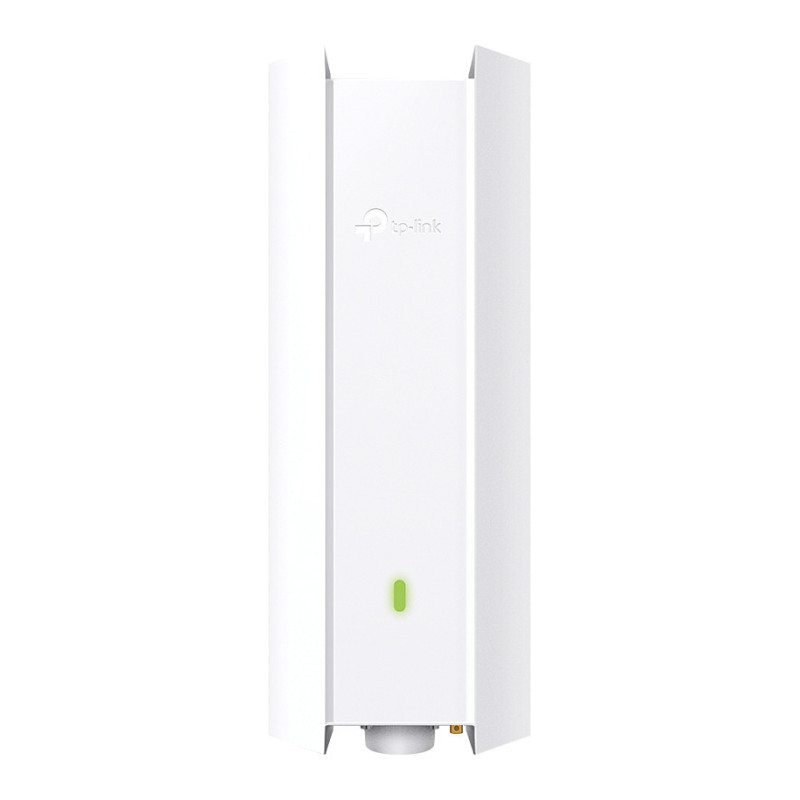

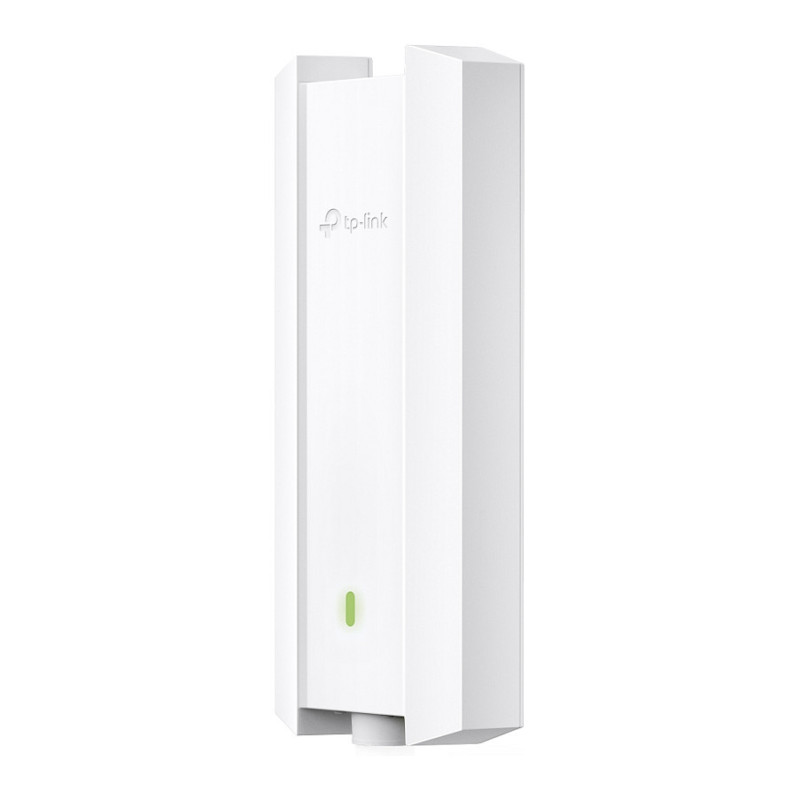

TP-Link Omada EAP623-Outdoor HD

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Long-Range, High-Speed WiFi 6
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.
Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD's intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.
Flexible Deployment with Omada Mesh and PoE Support
Seamless Integration into Omada SDN

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1800 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Number of users: 1020 user(s)
Automatic channel selection: Yes
Automatic channel scanning: Yes
MIMO: Yes
MIMO type: Multi User MIMO
VLAN support: Yes
Rate limiting: Yes
Band steering: Yes
Airtime Fairness (ATF): Yes
Quality of Service (QoS) support: Yes
BeamForming: Yes
Transmitting power (CE): < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
Transmitting power (FCC): < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

Security

Security algorithms: SNMP, SNMPv2, SNMPv3, SSH
MAC address filtering: Yes
Remote Authentication Dial-In User Service (RADIUS): Yes
Access Control List (ACL): Yes

Management features

Web-based management: Yes
Syslog: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Passive PoE

Design

Placement: Pole
Product colour: White
Reset button: Yes
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 2

Certificates

Certification: CE, FCC, RoHS

Weight dimensions

Width: 280.4 mm
Depth: 106.5 mm
Height: 56.8 mm

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -30 - 70 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
