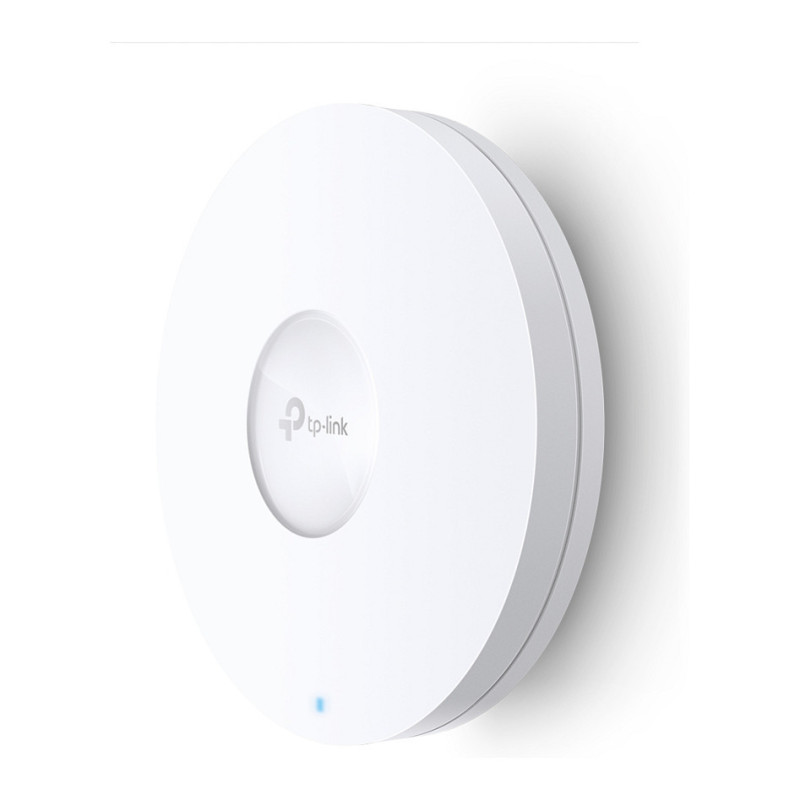

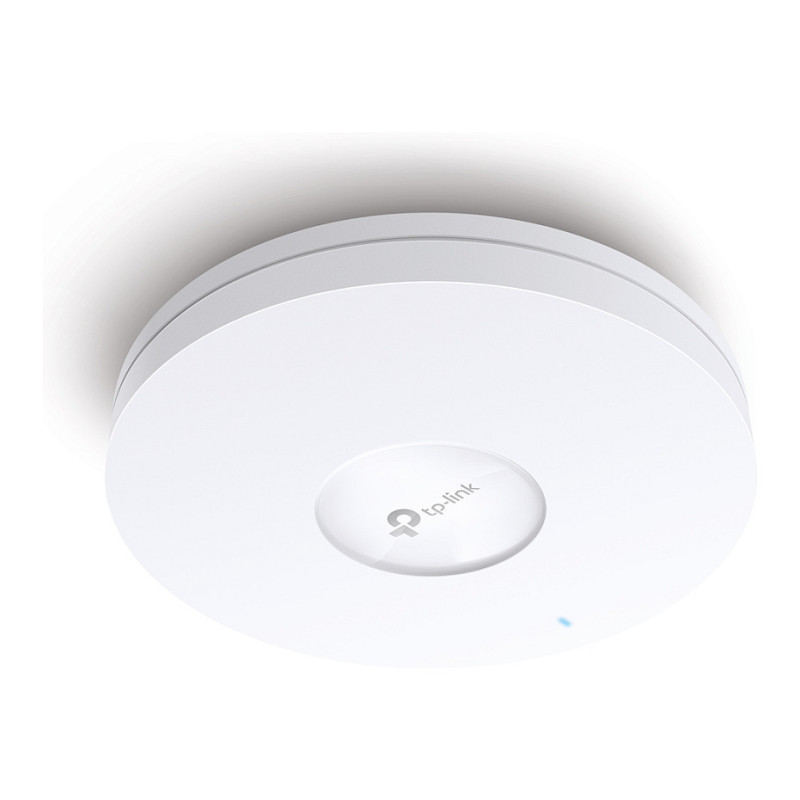

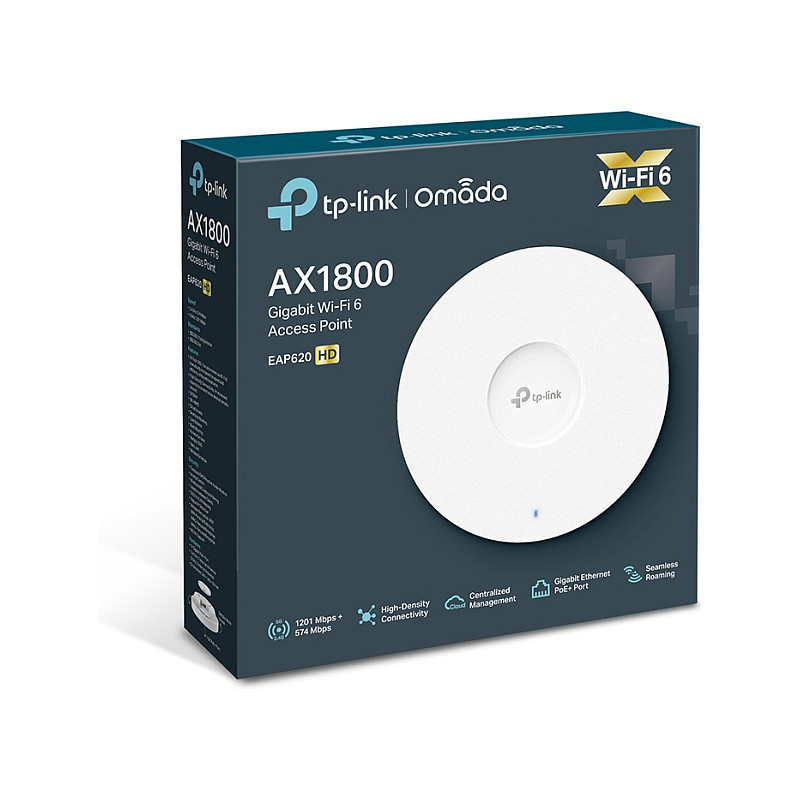

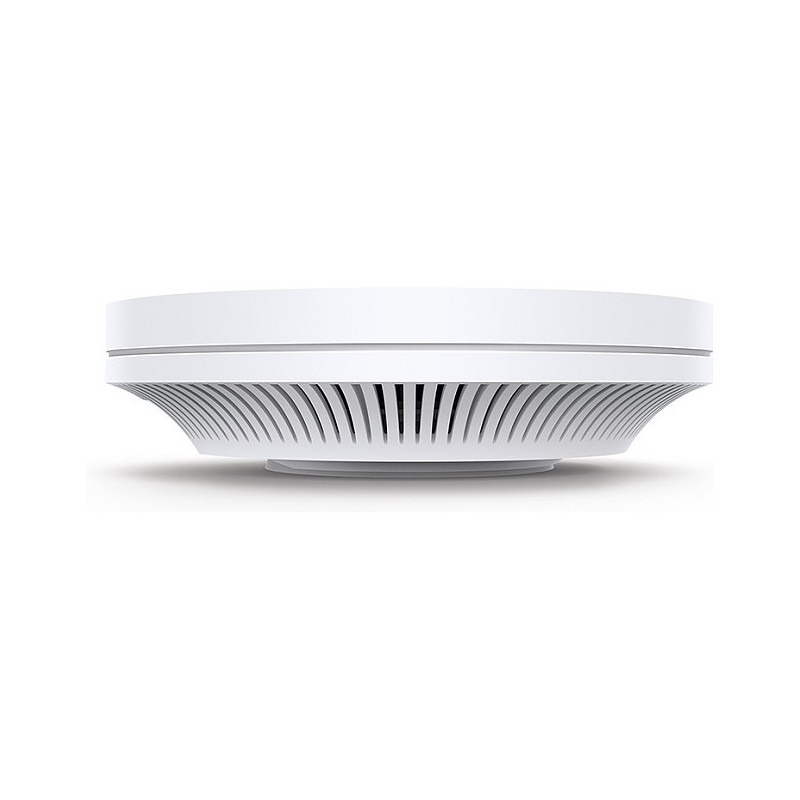

TP-Link Omada EAP620 HD wireless access point

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1201 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Number of users: 1020 user(s)
Automatic channel selection: Yes
Automatic channel scanning: Yes
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Fit AP mode features: Mesh networking
VLAN support: Yes
Rate limiting: Yes
Flow control support: Yes
Band steering: Yes
Airtime Fairness (ATF): Yes
Quality of Service (QoS) support: Yes
BeamForming: Yes
Transmitting power (CE): 20/23 dBm
Transmitting power (FCC): 23 dBm

Security

Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
MAC address filtering: Yes
Remote Authentication Dial-In User Service (RADIUS): Yes
Access Control List (ACL): Yes

Management features

Web-based management: Yes
Syslog: Yes
Firmware upgradeable: Yes

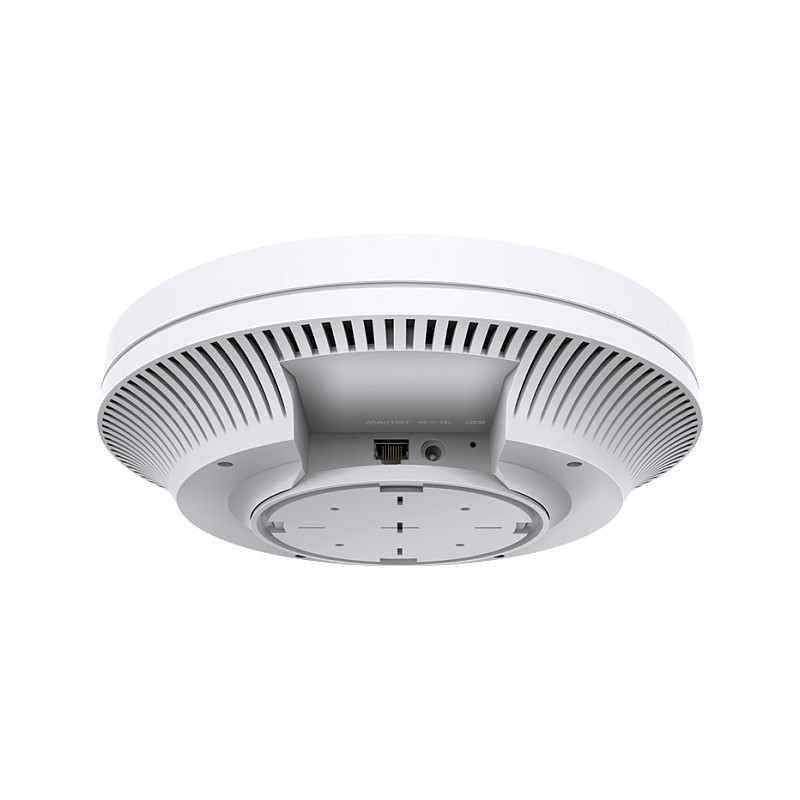

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
DC voltage range: 12 V

Design

Placement: Ceiling, Wall
Product colour: White
Reset button: Yes
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional

Certificates

Certification: CE, FCC, RoHS

Weight dimensions

Width: 160 mm
Depth: 160 mm
Height: 33 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
