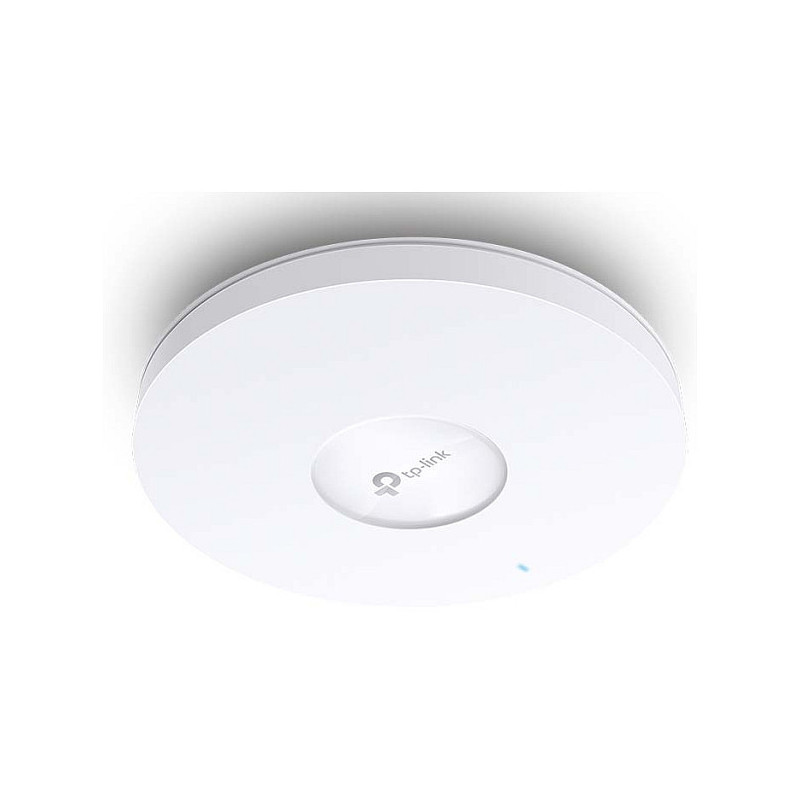

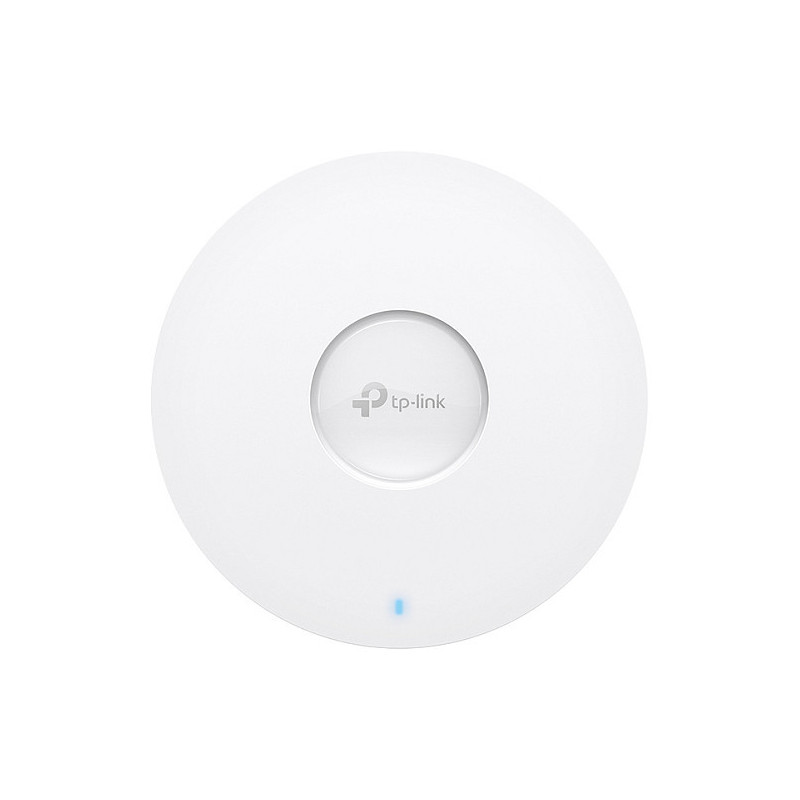

TP-Link Omada EAP610 wireless access point

TP-Link Omada AX1800 Wireless Dual Band Ceiling Mount Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1775 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
What This Product Does
EAP610 is an AX1800 Ceiling Mount WiFi 6 Access Point, and is ideal for networking upgrade to WiFi 6, such as offices, campuses, retails, and hotels. With WiFi 6 technology, it provides faster speeds, less lag, and higher capacity. The advanced functions including Omada Mesh, Seamless Roaming, MU-MIMO, Captive Portal further boost network security, efficiency, and coverage.
Additionally, this product is integrated into Omada Software Defined Networking (SDN) system, and can be centrally managed with cloud access via Omada Hardware Controller or Software Controller. The ability to control, adjust, and visualize the entire network from any connected PC makes centralized business Wi-Fi management efficient than ever before.
Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.
- Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps (simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz) brings 50% faster speeds than WiFi 5†. In addition, every application feels more fluid with drastically improved WiFi speeds, powered by 4 spatial streams, 1024 QAM, and longer OFDM symbol times.
- Higher Efficiency for More Devices
WiFi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments such as typical office spaces, lodging, and small clinics. Enjoy faster speeds on more devices with less lag.

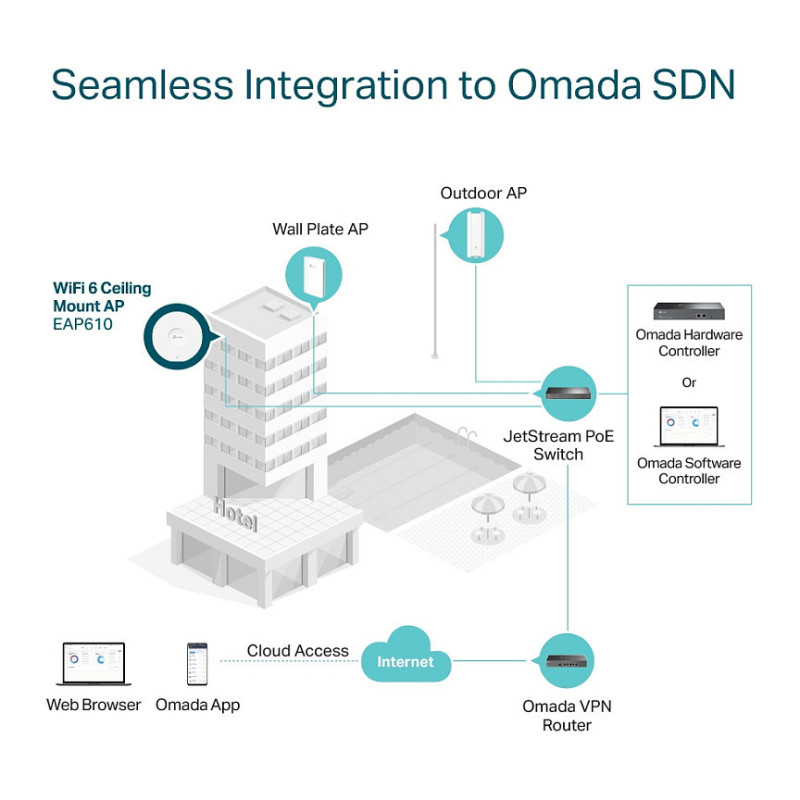

Software Defined Networking (SDN) with Cloud Access
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
- Hardware or Software Controllers
- Centralized Cloud Management
- Multi-Site Cloud Management
- Intelligent Monitoring
Easy Deployment Higher Performance by Omada Mesh
- Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-towire areas.
- Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when an AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

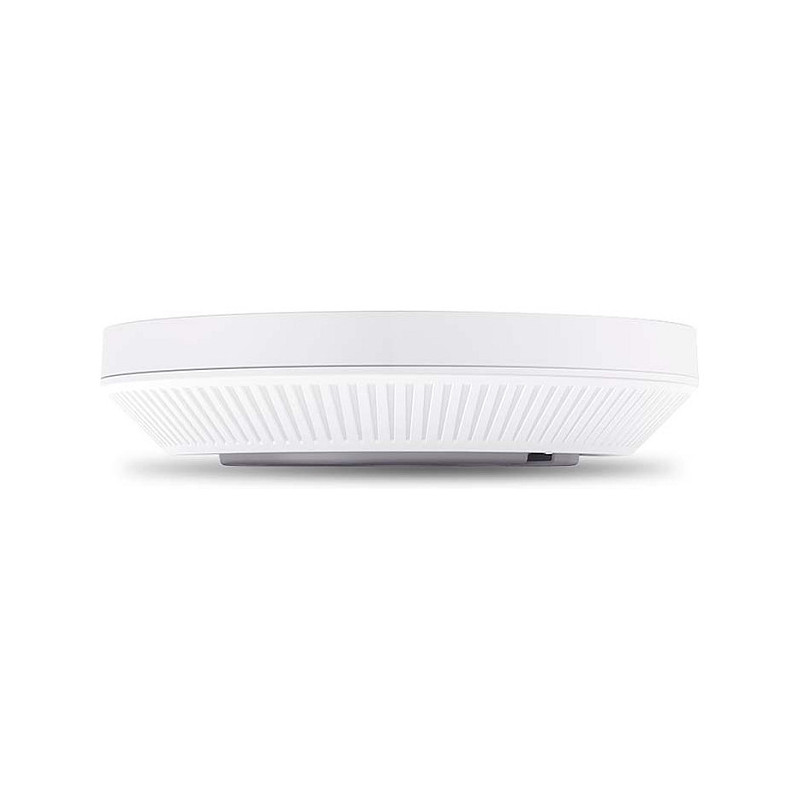

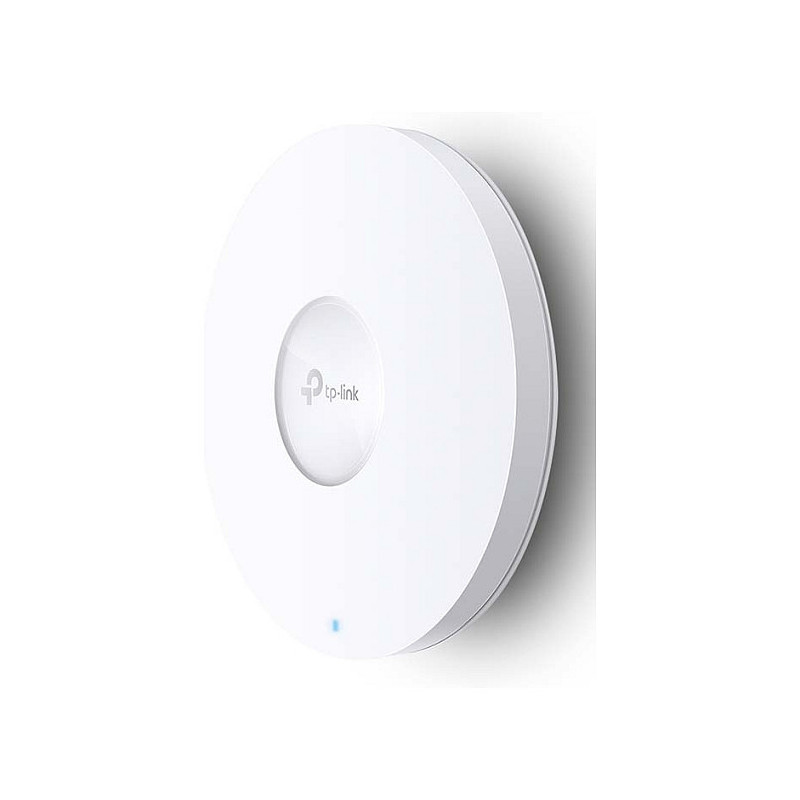

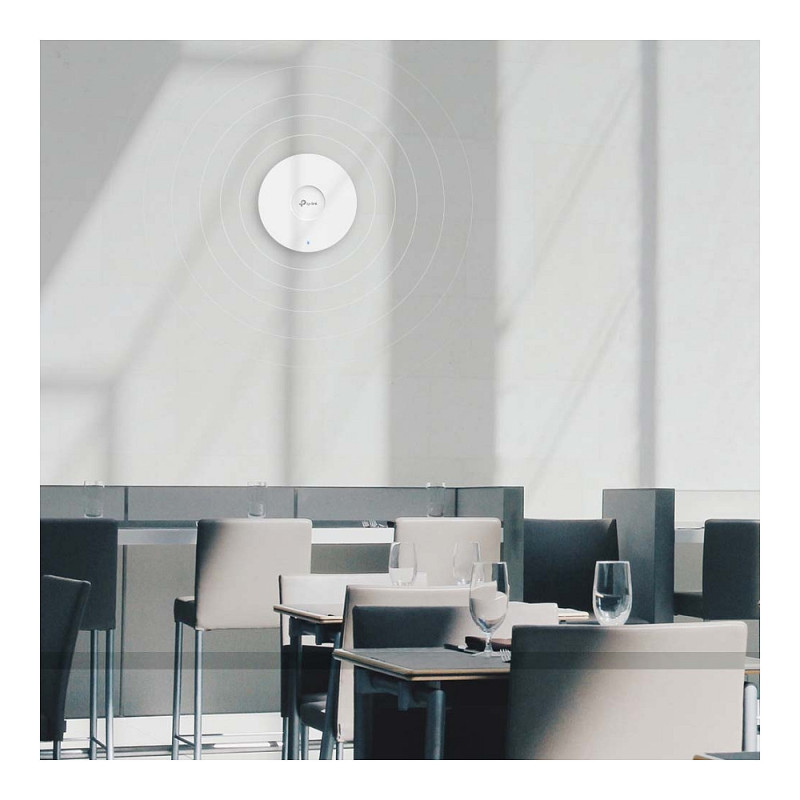

Easy to Install with Refined Industrial Design and PoE Support
EAP610 supports both DC and 802.3at PoE+ for flexible installations. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and easy.
Boosted Network Security and Efficiency
- Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
- Captive Portal with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook WiFi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
- WPA3 for Worry-Free Open Public Networks
With advanced enterprise security and Enhanced Open™, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
- Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
- Load Balance
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
- Airtime Fairness
Increases average network throughput in heavily congested environments.

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1775 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Automatic channel selection: Yes
Automatic channel scanning: Yes
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Fit AP mode features: Mesh networking
VLAN support: Yes
Rate limiting: Yes
Flow control support: Yes
Band steering: Yes
Airtime Fairness (ATF): Yes
Quality of Service (QoS) support: Yes
Transmitting power (CE): <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, EIRP)
Transmitting power (FCC): <25 dBm (2.4 GHz); <25 dBm (5 GHz)

Security

Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
MAC address filtering: Yes
Access Control List (ACL): Yes

Management features

Web-based management: Yes
Syslog: Yes
Firmware upgradeable: Yes

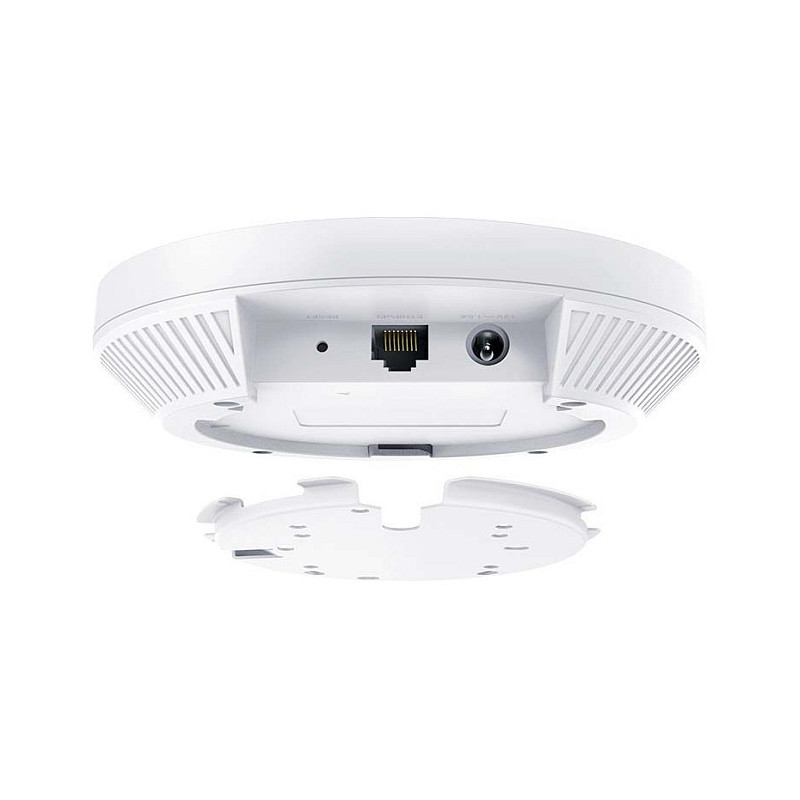

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Passive PoE
DC voltage range: 12 V

Design

Placement: Ceiling, Wall
Product colour: White
Reset button: Yes
LED indicators: Yes

Antenna

Antenna type: Internal

Certificates

Certification: CE, FCC, RoHS

Weight dimensions

Width: 160 mm
Depth: 160 mm
Height: 33.6 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
