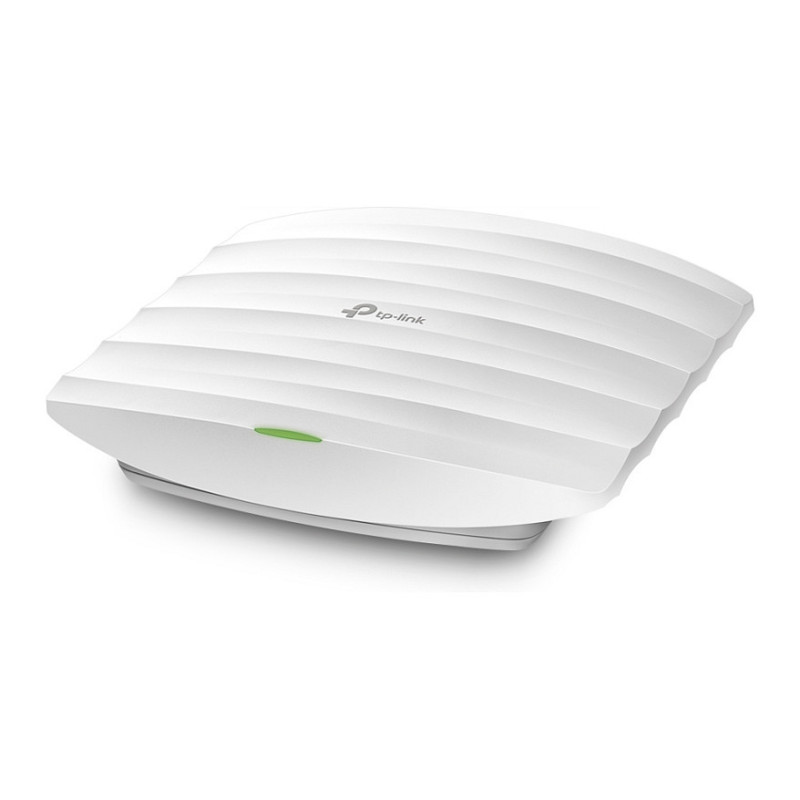

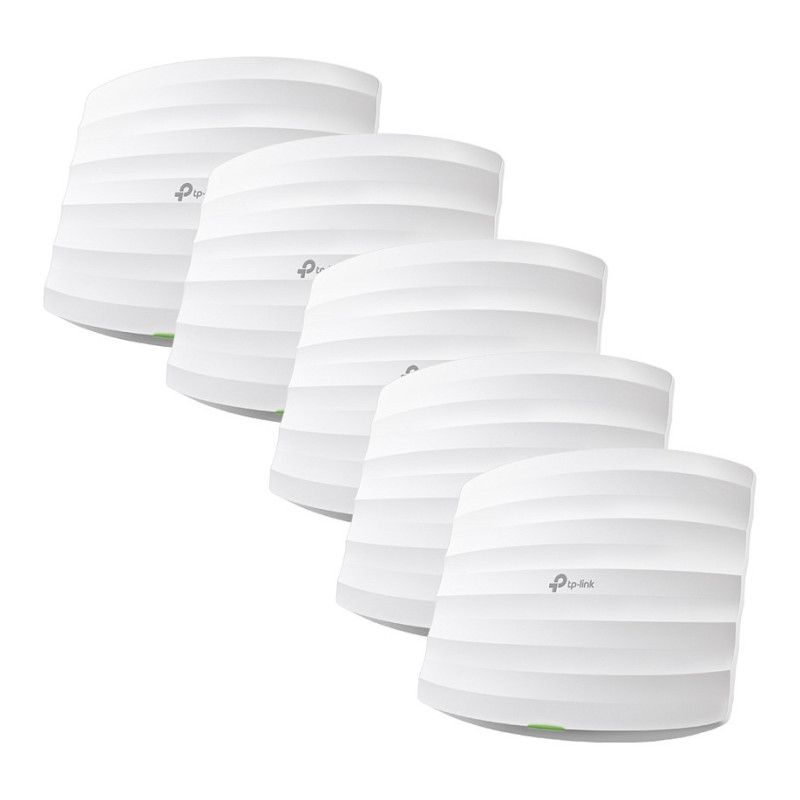

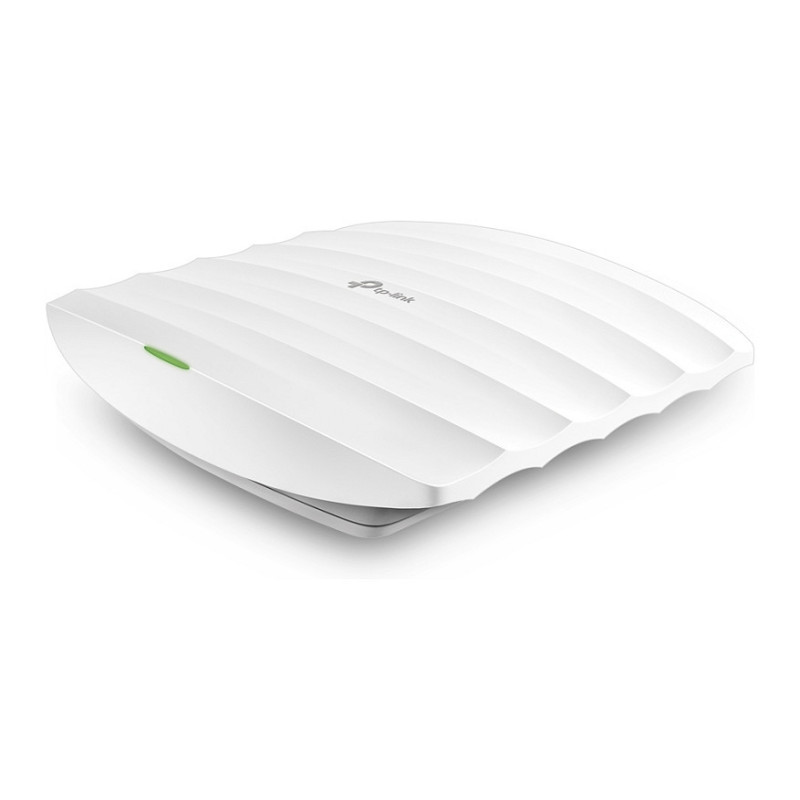

TP-Link Omada EAP245(5-PACK) wireless access point

TP-Link Omada EAP245(5-PACK). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1750 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.

Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1750 Mbit/s
Maximum data transfer rate (2.4 GHz): 450 Mbit/s
Maximum data transfer rate (5 GHz): 1300 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4, 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Cabling technology: 10/100/1000Base-T(X)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Virtual LAN features: SSID-based VLAN assignment
Feature: Rate limiting
Feature: Wireless isolation
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming
Transmitting power (CE): 20 - 23 dBm
Transmitting power (FCC): 24 dBm
Transmitting power: 27 dBmW

Security

Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 16
Feature: Access Control List (ACL)

Protocols

Management protocols: HTTP/HTTPS

Management features

Feature: Web-based management
Feature: Syslog

Ports & interfaces

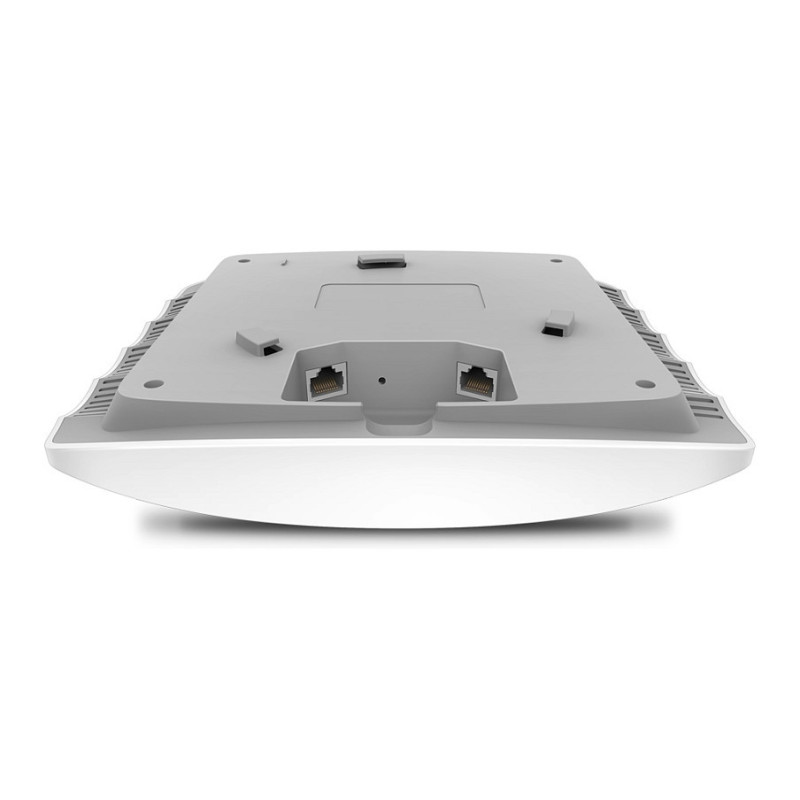

Ethernet LAN (RJ-45) ports: 2

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
AC input voltage: 48 V
Input current: 1.5 A
Power consumption (typical): 12.3 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antenna gain level (max): 4 dBi

Performance

Compatible operating systems: Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

Certificates

Compliance certificates: Federal Communications Commission (FCC), CE, RoHS

Weight & dimensions

Width: 180 mm
Depth: 180 mm
Height: 47.5 mm

Packaging data

Package width: 257.5 mm
Package depth: 285.5 mm
Package height: 283.5 mm
Package weight: 3.54 kg

Packaging content

Quantity per pack: 5 pc(s)
Feature: PoE adapter included
Cables included: AC
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Logistics data

Harmonized System (HS) code: 85176990
