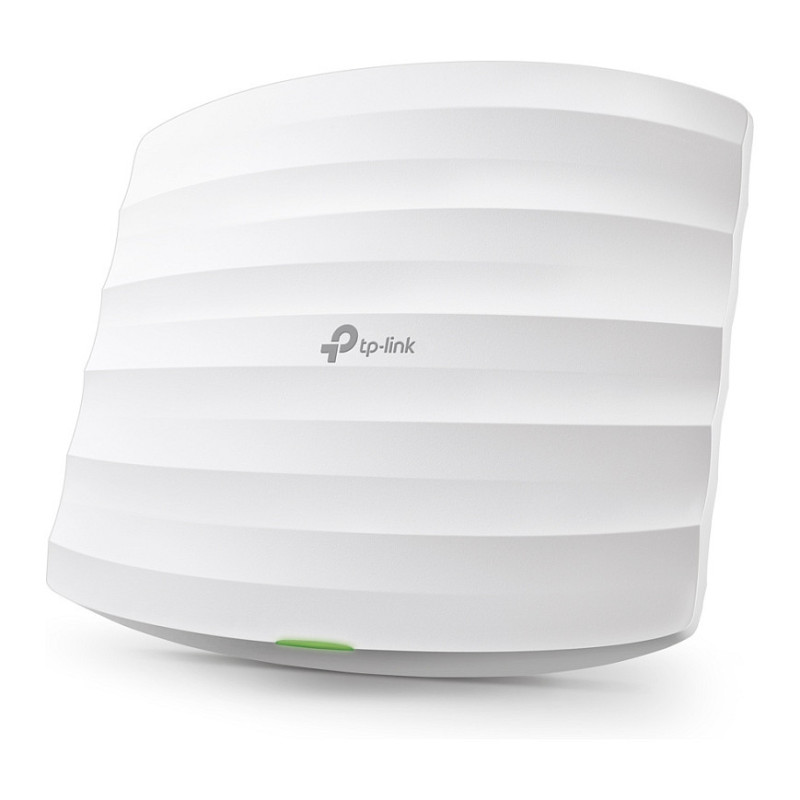

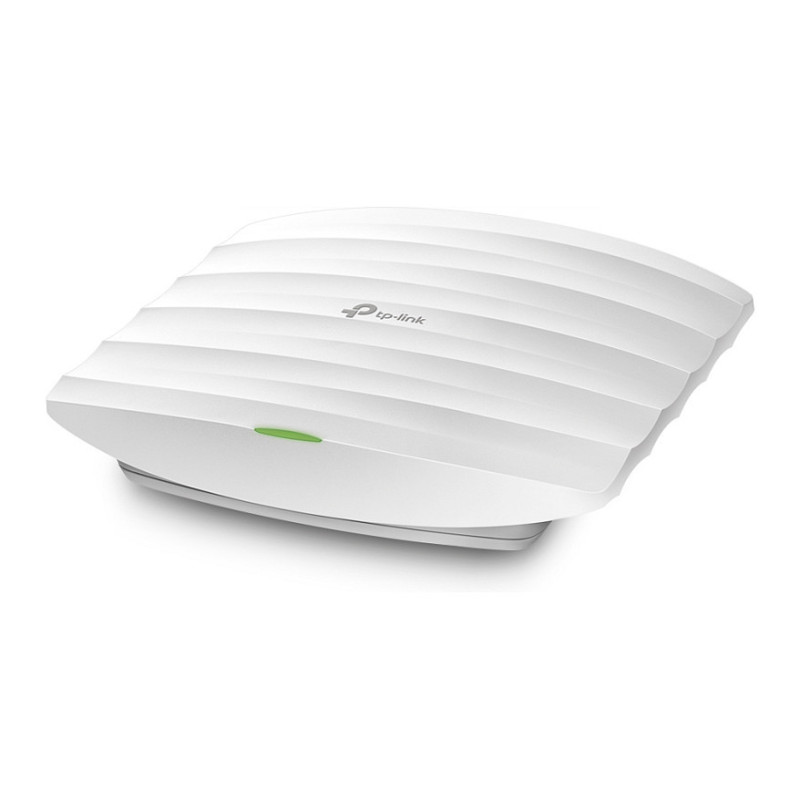

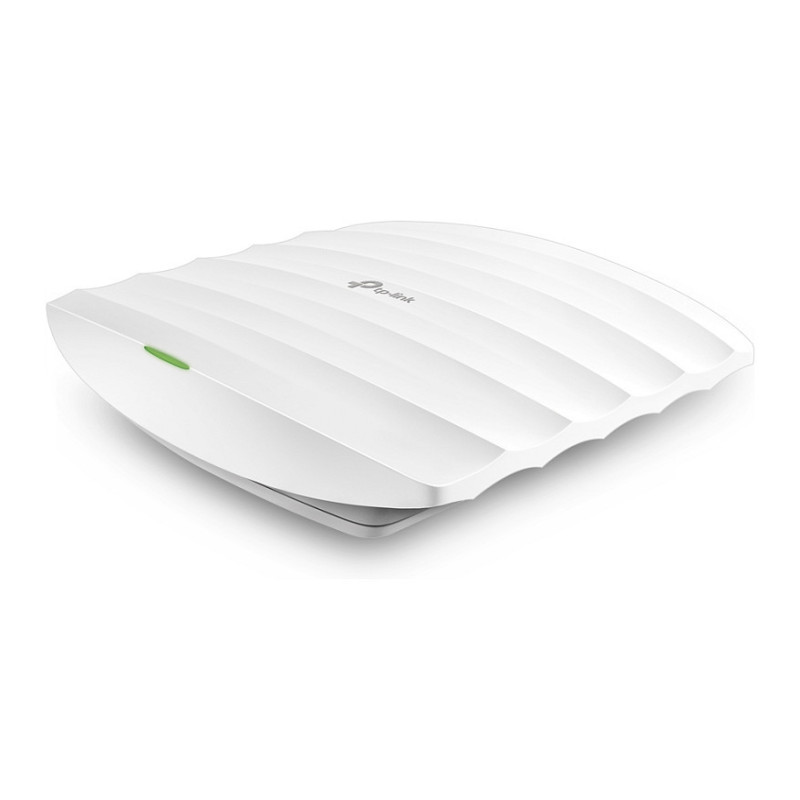

TP-Link Omada EAP225 wireless access point

TP-Link Omada EAP225. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1350 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1350 Mbit/s
Maximum data transfer rate (2.4 GHz): 450 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology: 10/100/1000Base-T(X)
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Virtual LAN features: VLAN mapping
Feature: Rate limiting
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming
Transmitting power (CE): 23 dBm
Transmitting power (FCC): 24 dBm

Security

Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 16
Feature: Access Control List (ACL)

Management features

Feature: Web-based management
Feature: Syslog

Ports & interfaces

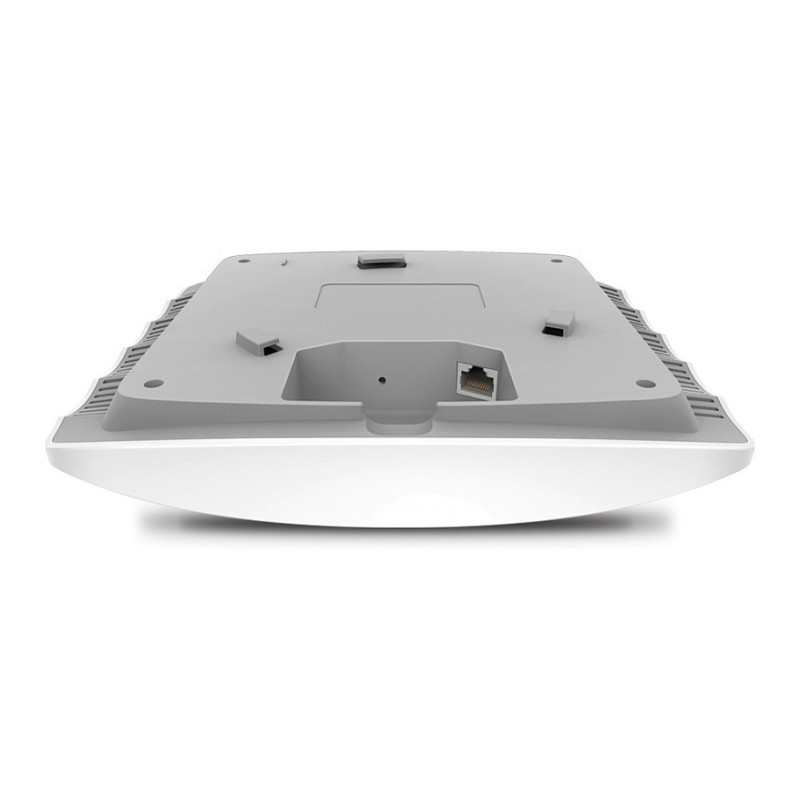

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
Output voltage: 12 V
Output current: 1.5 A
Power consumption (typical): 10.15 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: On/off switch
Feature: Reset button
LED indicators: Power, WLAN

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 5
Antenna gain level (max): 5 dBi

Performance

Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Width: 205.5 mm
Depth: 181.5 mm
Height: 37.1 mm

Packaging data

Package width: 228 mm
Package depth: 340 mm
Package height: 65 mm
Package weight: 910 g
Package type: Box

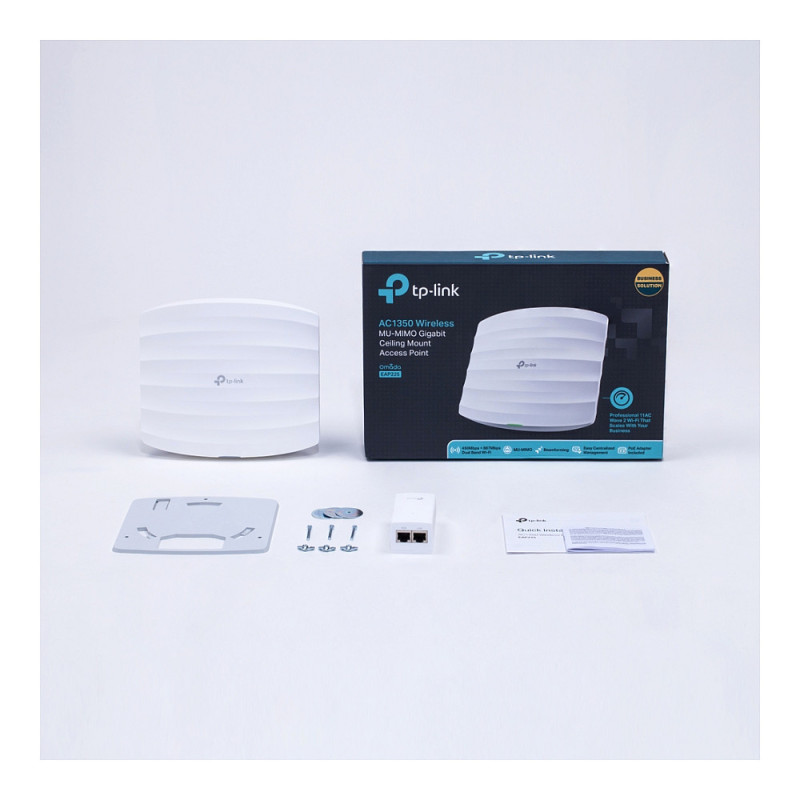

Packaging content

Quantity per pack: 1 pc(s)
Feature: AC adapter included
Feature: PoE adapter included
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Logistics data

Harmonized System (HS) code: 85176990
