TP-Link Omada EAP211-Bridge KIT

TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 1000 m. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 7 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Connectivity technology: Wired & Wireless

EAP211-Bridge KIT
Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 0.62 mi (1 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing

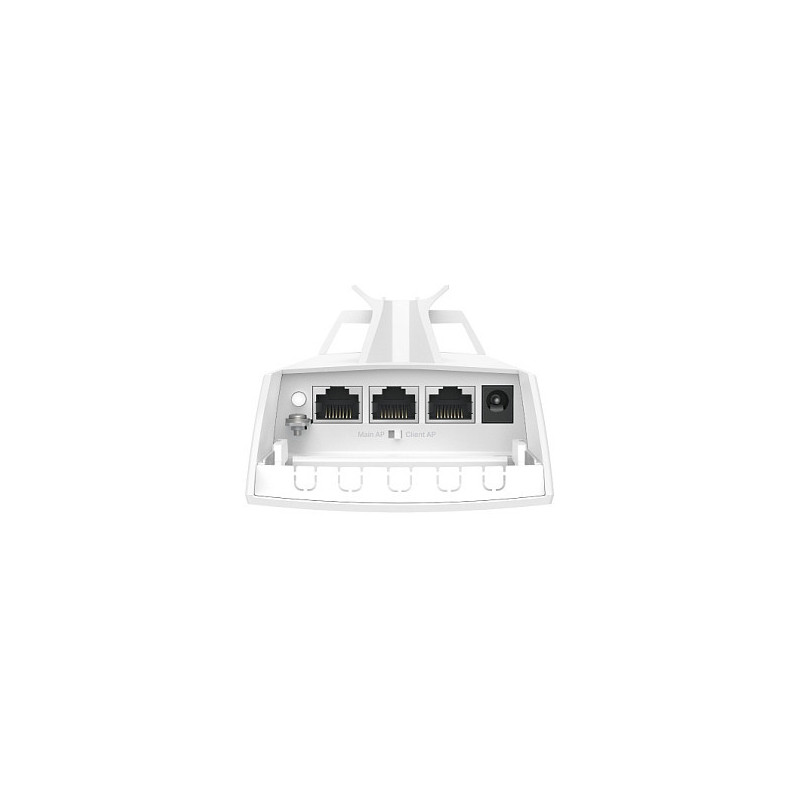

- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management

Data transmission

Maximum data transfer rate: 867 Mbit/s
Maximum transfer distance: 1000 m

Antenna

Antenna design: Internal
Antenna type: 2x2
Antenna gain level (max): 7 dBi

Wireless LAN features

Feature: Wi-Fi
Wi-Fi band: Single-band (5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Frequency band: 5 GHz

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)

Ports & interfaces

Connectivity technology: Wired & Wireless
Ethernet LAN (RJ-45) ports: 3
Feature: DC-in jack

Security

Security algorithms: SNMP, SNMPv2, SNMPv3, SSH
Feature: MAC address filtering

Management features

Feature: Web-based management

Features

Product type: Network bridge

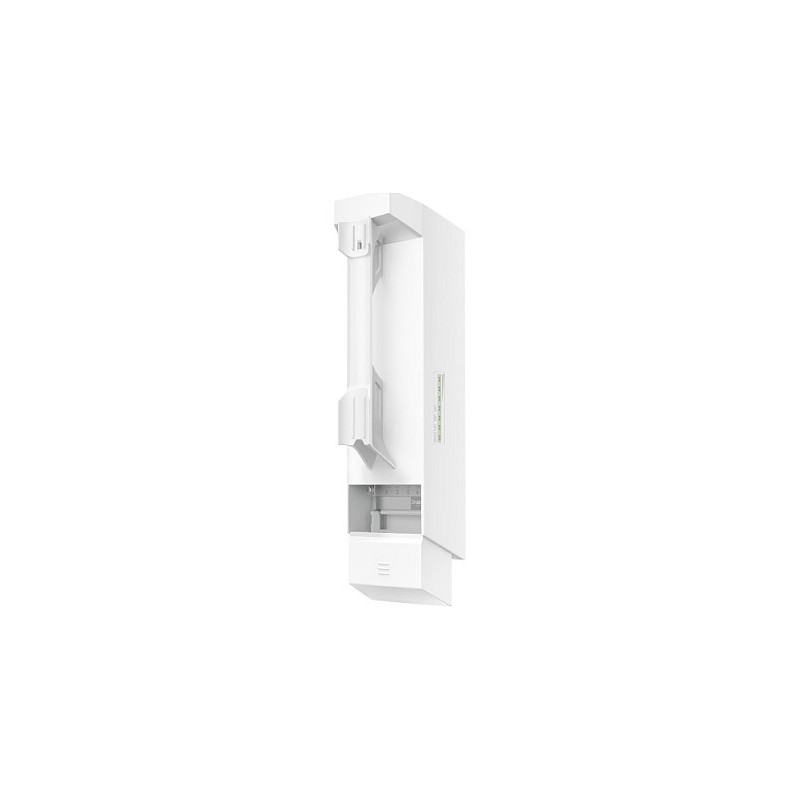

Mounting type: Pole
Product colour: White
LED indicators: Power
Feature: Reset button
International Protection (IP) code: IP65
Feature: Quality of Service (QoS) support

Power

Power source type: DC, PoE
DC input voltage: 12 V
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage: 24 V

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Certificates

Certification: CE, FCC, RoHS

Weight & dimensions

Width: 224 mm
Depth: 79 mm
Height: 60 mm

Packaging content

Feature: PoE+ Injector(s)
Cables included: AC
