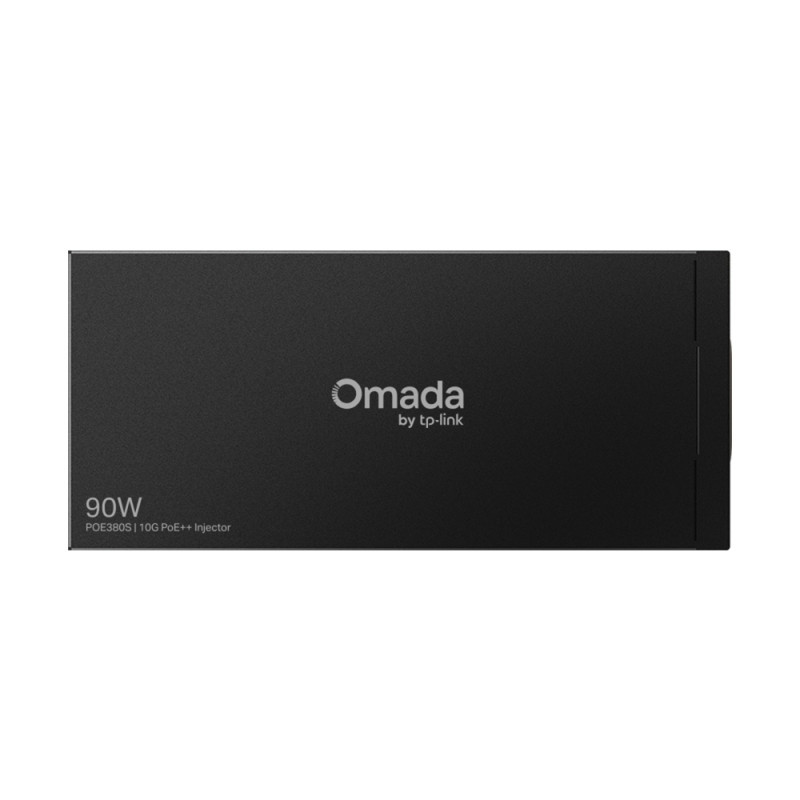

TP-LINK Omada 10G PoE++Injector POE380S
Product reference:
18-TL-POE380S
TP-LINK Omada 10G PoE++Injector POE380S
TP-LINK Omada 10G PoE++Injector POE380S
Product reference:
18-TL-POE380S
TP-LINK Omada 10G PoE++Injector POE380S
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
The Omada PoE++ Injector POE380S fully complies with IEEE 802.3af/at/bt standards with up to 90W (802.3bt type 4) power supply. It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.
- 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, no configuration required
- Integrated power supply
- Durable metal casing
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| Interface | • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W) • 1× AC socket |
| Network Media | •10Base-T/100Base-TX: UTP category 5 cable or above (max. 100 m) EIA/TIA-568 100Ω STP (max. 100m) •1000Base-T/2.5GBase-T: UTP category 5e cable or above (max. 100 m) EIA/TIA-568 100Ω STP (max. 100m) •5GBase-T: UTP category 5e cable or above (max. 100 m) EIA/TIA-568 100Ω STP (max. 100m) •10GBase-T: UTP category 6 cable or above (max. 50 m) STP category 6a cable or above (max. 90m) EIA/TIA-568 100Ω STP (max. 90m) |
| Max. Power Consumption | • Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 90 W) |
| Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation • Plug-and-Play |
| LED | • Power • PoE |
| Dimensions ( W x D x H ) | 6.1×2.8×1.7 in (155×70×42 mm) |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • POE380S • Power Cord • Installation Guide |
| Environment | • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
