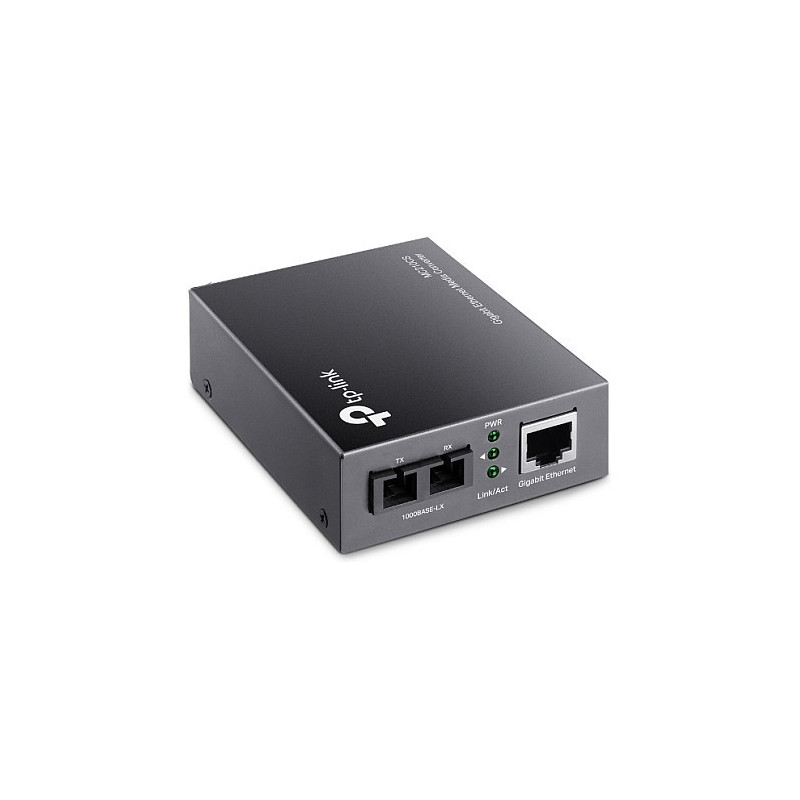

TP-Link MC210CS network media converter

TP-Link Gigabit Single-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 15000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 5.5 W

- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 15km

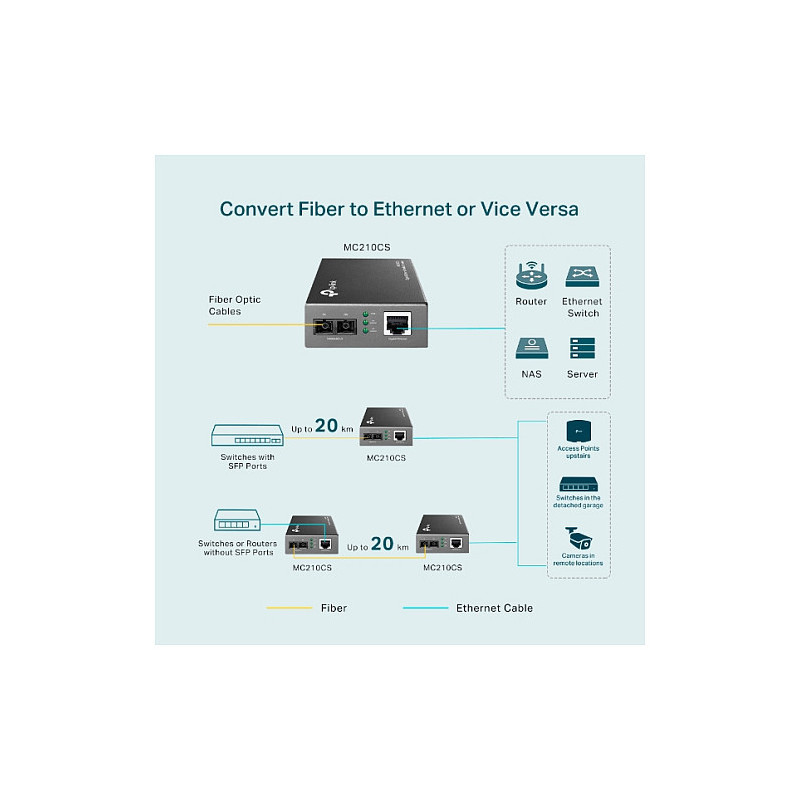

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19' system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full
Cable types supported: Cat6

Performance

Maximum transfer distance: 15000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode

Features

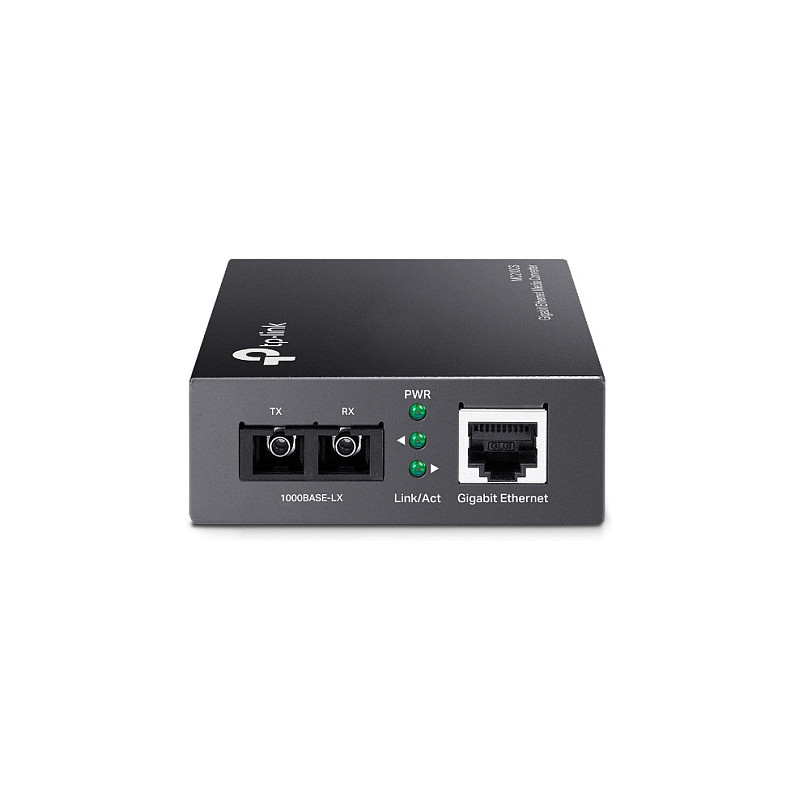

LED indicators: Activity, Power
Product colour: Black

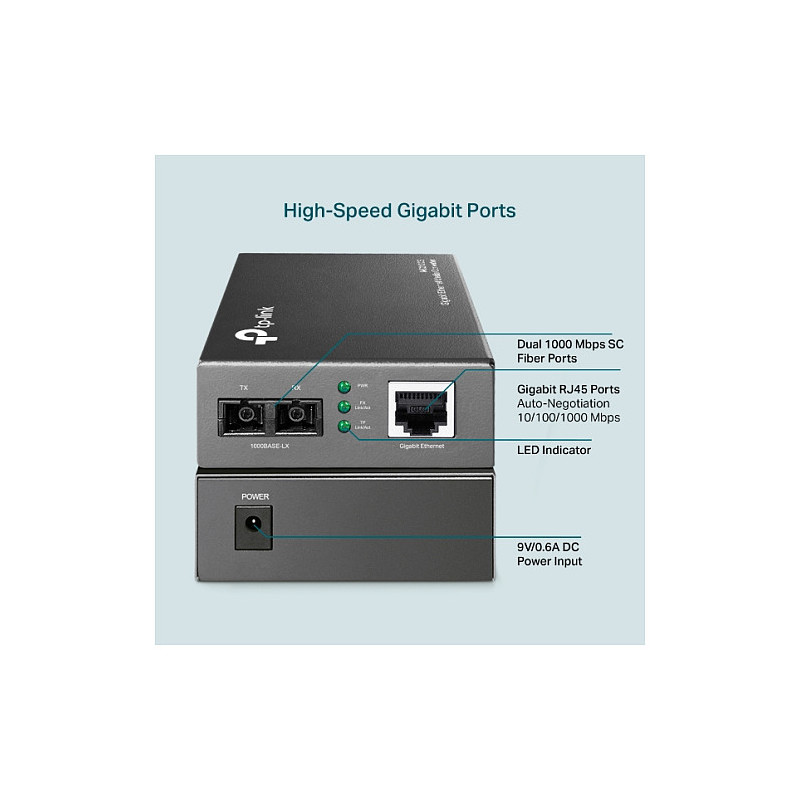

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1

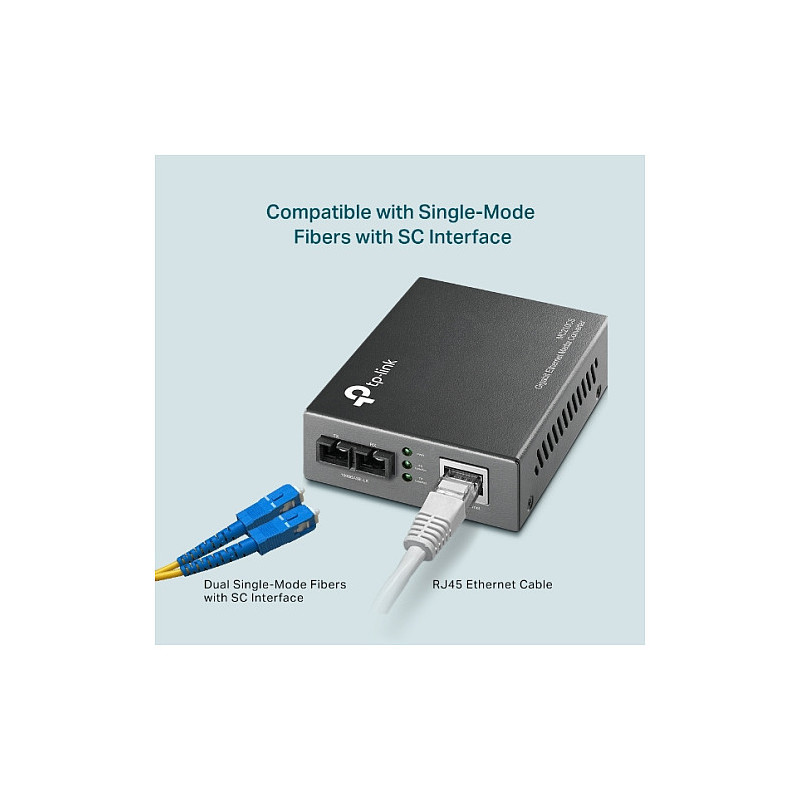

Fiber optic connector: SC

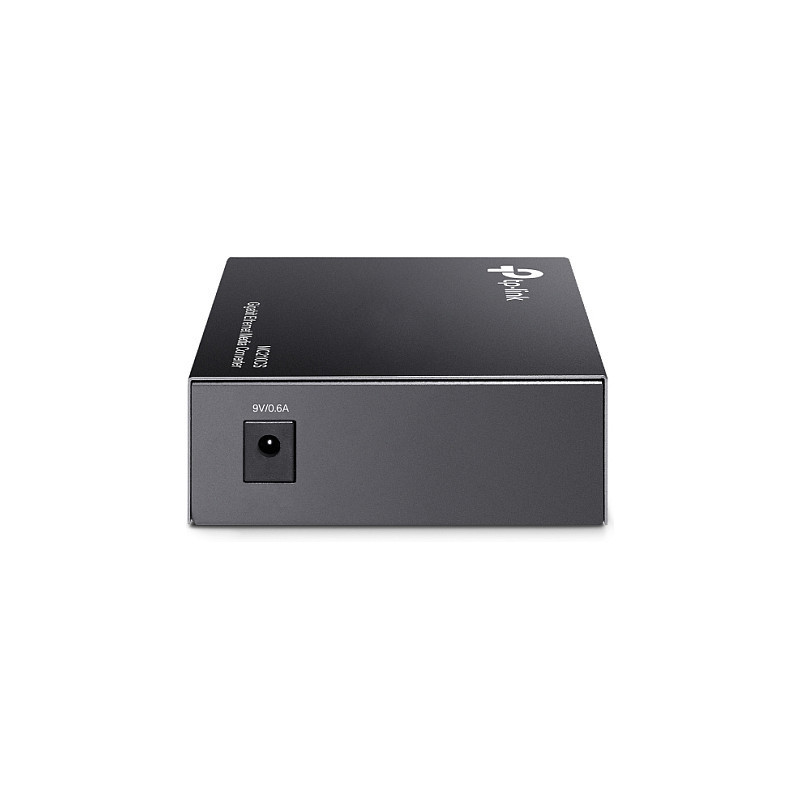

Power

Power consumption (max): 5.5 W

Weight & dimensions

Width: 94.5 mm
Depth: 73 mm
Height: 27 mm

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Packaging data

Package width: 165 mm
Package depth: 204 mm
Package height: 65 mm
Package weight: 430 g

Certificates

Compliance certificates: RoHS
Certification: FCC, CE
