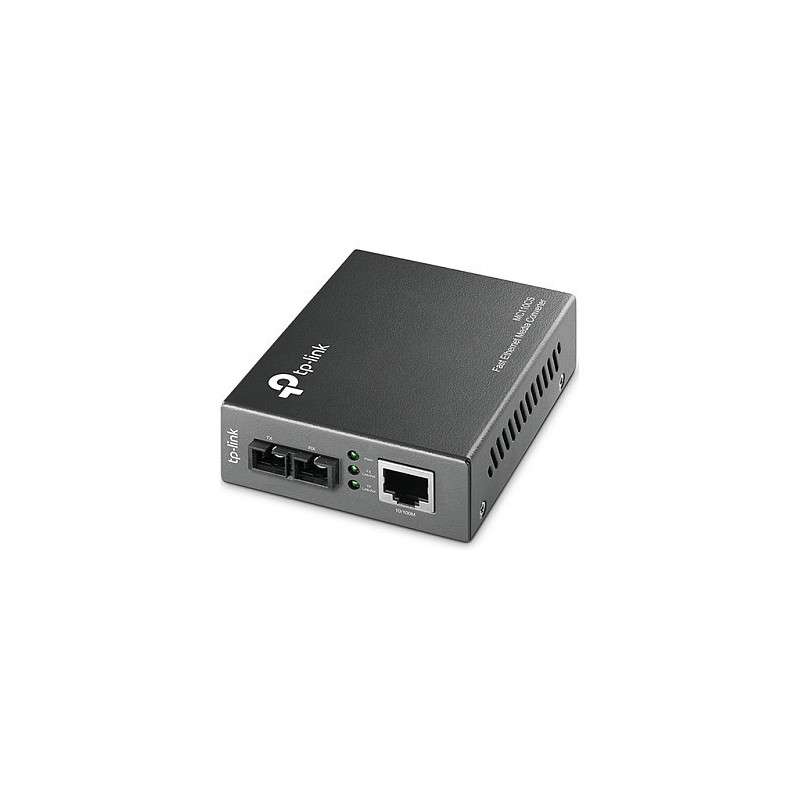

TP-Link MC110CS network media converter

TP-Link 10/100Mbps Single-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 20000 m, Wavelength: 1310 nm. LED indicators: Power, Speed, Product colour: Black, Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 1.52 W
What This Product Does
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Fiber ethernet cabling technology: 100BASE-FX
Auto MDI/MDI-X: Yes
Cabling technology: UTP 3, 4, 5e, 5
Cable types supported: Cat3, Cat4, Cat5, Cat5e

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm

Features

Internal: No
LED indicators: Power, Speed
Product colour: Black
Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Ports interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Power consumption (max): 1.52 W

Weight dimensions

Width: 94.5 mm
Depth: 73 mm
Height: 27 mm

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Packaging data

Package width: 165 mm
Package depth: 204 mm
Package height: 65 mm
Package weight: 380 g

Certificates

Certification: FCC, CE

Other features

Dimensions (WxDxH): 94.5 x 73 x 27 mm
I/O ports: 1x 100M SC1x 100M RJ45
Full duplex: Yes
