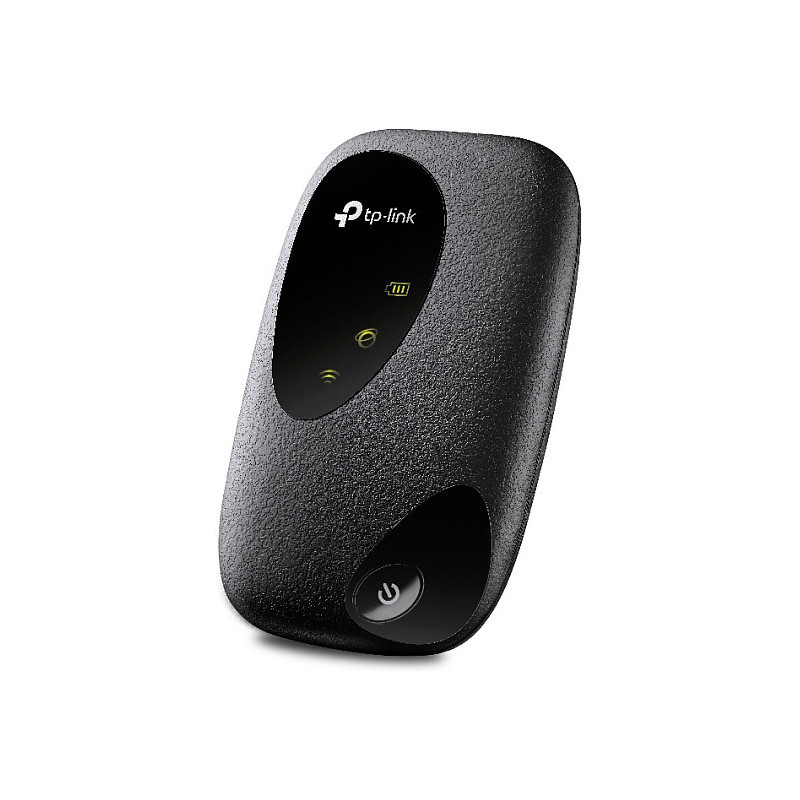

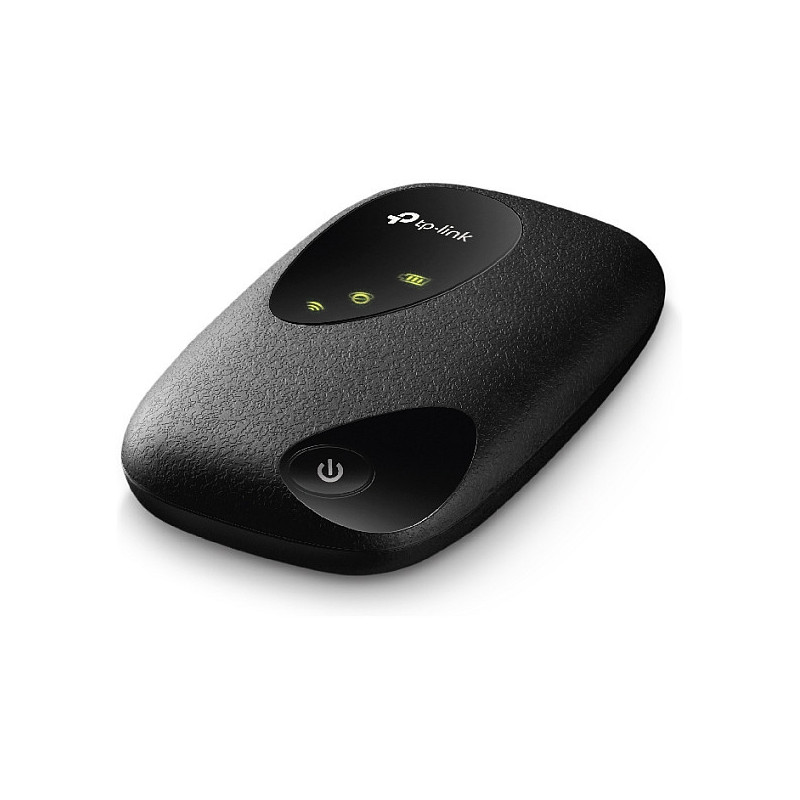

TP-Link M7000 cellular network device

TP-Link 4G LTE Mobile Wi-Fi. Device type: Cellular network router, Product colour: Black, LED indicators: Power, WLAN. Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), WLAN data transfer rates supported: 300 Mbit/s. Data network: 3G, 4G, LTE, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE-FDD. USB port type: Micro-USB

Do More with A Faster Connection
The M7000 supports the latest generation 4G FDD/TDD-LTE networks, providing convenient carry-on Wi-Fi in most countries and regions. Now you can enjoy lag-free HD video, fast file downloads, and stable video chats regardless of where life takes.

Share with Friends Internet Access for up to 10 Devices Simultaneously
This compact device works seamlessly with an impressive range of wireless gadgets. The M7000 can easily share a 4G/3G connection with up to 10 wireless devices like tablets, laptops, and mobile phones at the same time.

Power through Your Day with up to 8 Hours of Sharable 4G
With its powerful 2000mAh battery, the M7000 can provide up to 8 hours of wireless connectivity, making it the perfect companion for travel, business trips, outdoor activities, and more.

Get Your Network Up and Running in Seconds

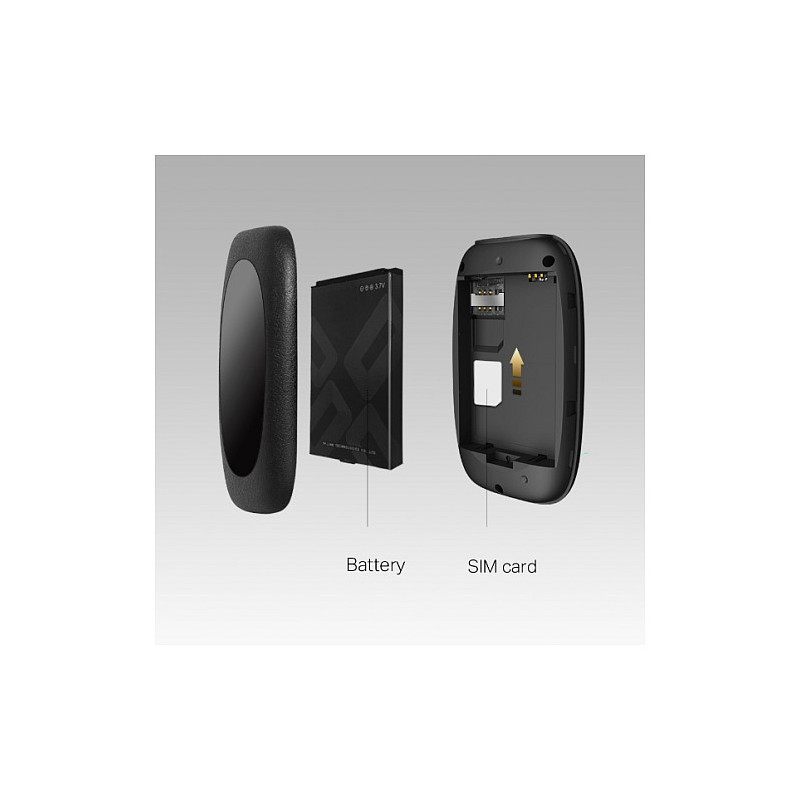

M7000 features a compact and user-friendly design, all you need is to insert a SIM card and press the power button. Your high-speed 4G hotspot will be operational within a half-minute.

Easy Management with the tpMiFi App
With the tpMiFi App, you can easily access and manage the M7000 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your Wi-Fi and send messages.

Design

Device type: Cellular network router
Product colour: Black
Feature: Reset button
LED indicators: Power, WLAN

Ethernet LAN features

Ethernet LAN interface type: Not available
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: DHCP client
Feature: DHCP server

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 300 Mbit/s

Mobile network

Data network: 3G, 4G, LTE
3G standards: HSPA, HSPA+, UMTS
4G standard: LTE-FDD
3G bands supported: 850,900,2100 MHz
4G bands supported: 800,850,900,1800,2100,2300,2500,2600 MHz
UMTS bands supported: 850,900,2100 MHz
SIM card type: MicroSIM

Ports & interfaces

USB port type: Micro-USB
Feature: USB port

Security

Security algorithms: SSID, WPA-PSK, WPA2-PSK

Certificates

Certification: CE, RoHS

Packaging content

Cables included: Micro-USB

Performance

Feature: Web-based management
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported: Yes
Mobile operating systems supported: Android, Windows Phone, iOS

Power

Power source type: Battery
Output voltage: 5 V
Output current: 1 A
Battery capacity: 2000 mAh

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 94 mm
Depth: 56.6 mm
Height: 19.7 mm

Packaging data

Package width: 135 mm
Package depth: 95 mm
Package height: 50 mm
Package weight: 150 g

Logistics data

Harmonized System (HS) code: 85176990
