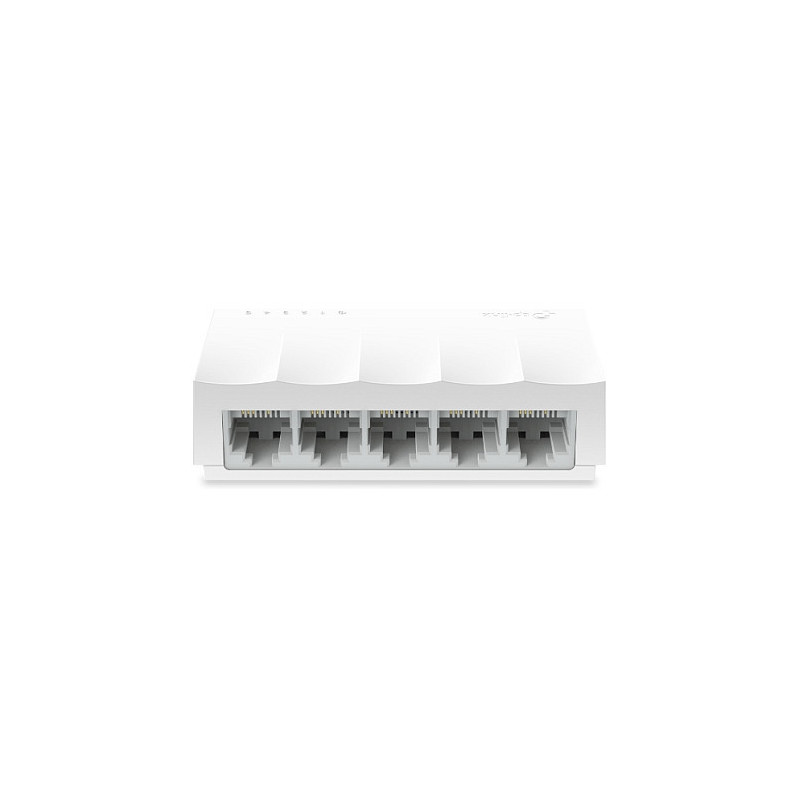

TP-Link LS1005

TP-Link 5-Port 10/100Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration required
Fanless design ensures quiet operation

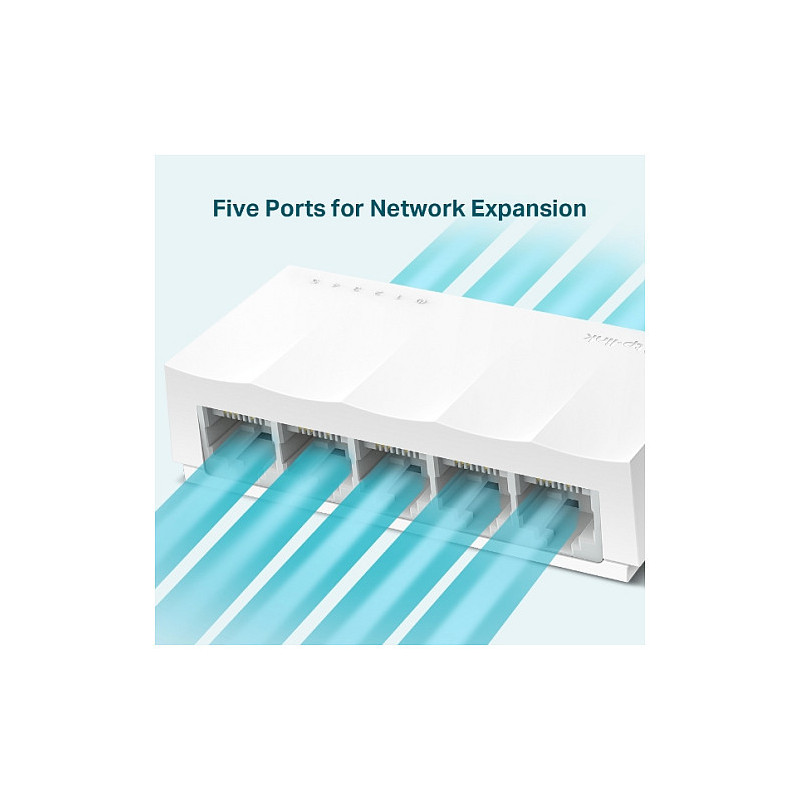

Easily Expand Your Network and Save Energy
5-Port 10/100 Mbps Desktop Switch

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use.

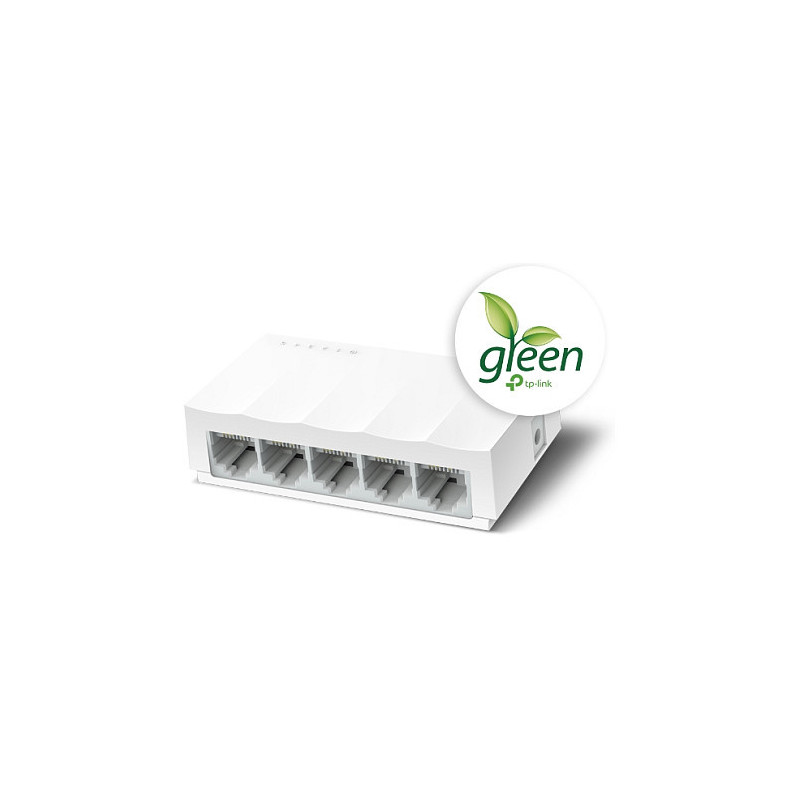

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it's a win-win!

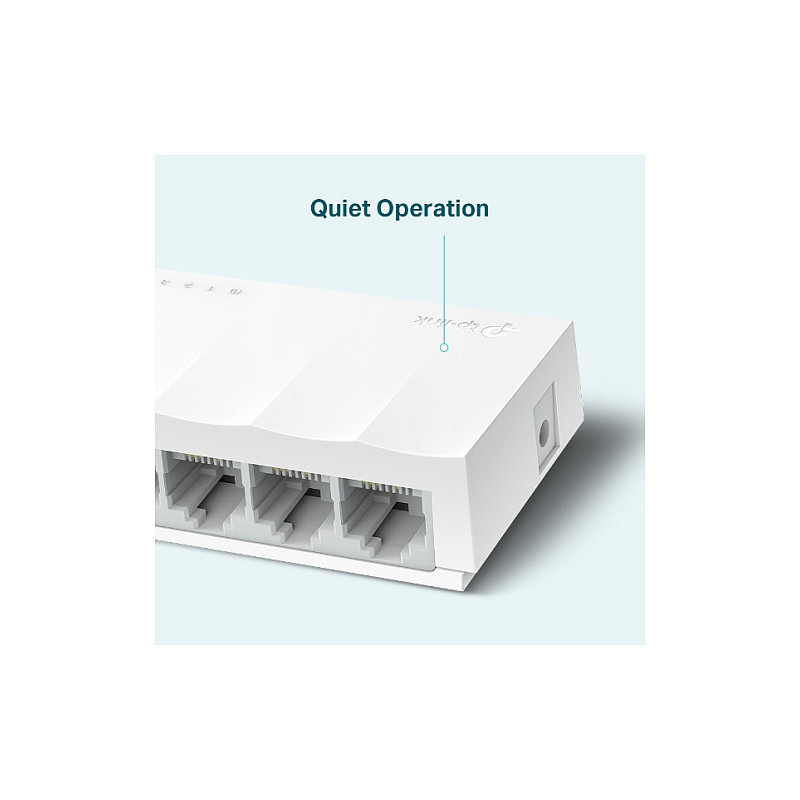

Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.

Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 0.7 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 2000

Design

Product colour: White
Housing material: Plastic
LED indicators: Activity, Link, Power

Power

Power source: DC
Feature: Power supply included
Input current: 0.6 A
Input voltage: 5 V
Power consumption (max): 1.65 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 5.627 BTU/h

Weight & dimensions

Width: 83.6 mm
Depth: 45.7 mm
Height: 22.8 mm

Packaging content

Feature: Quick start guide

Packaging data

Package type: Box
Package width: 82 mm
Package depth: 88 mm
Package height: 84 mm
Package weight: 80 g

Certificates

Certification: CE, FCC, RoHS

Logistics data

Harmonized System (HS) code: 85176990
