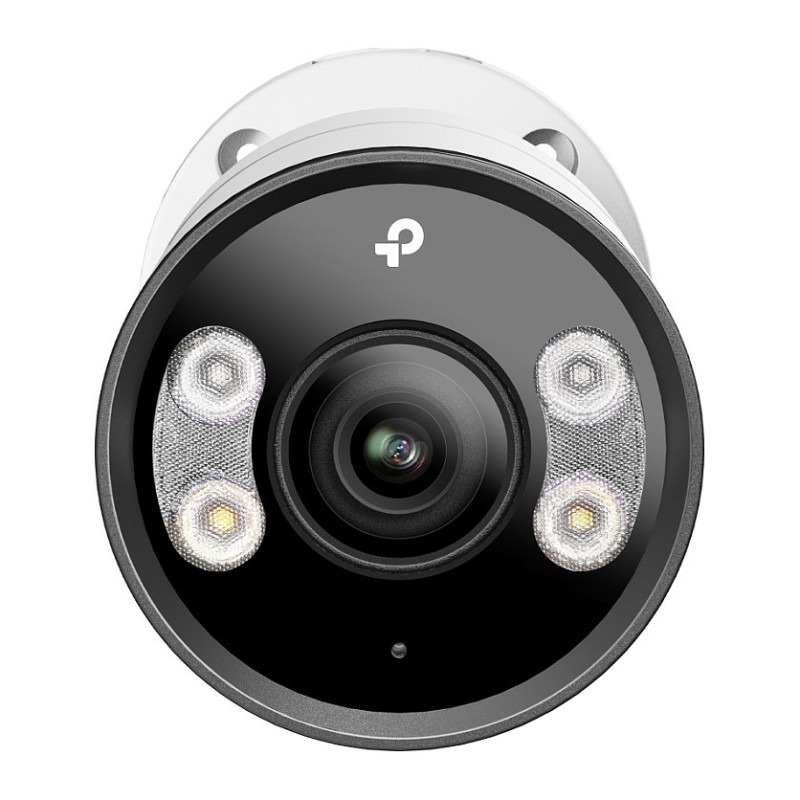

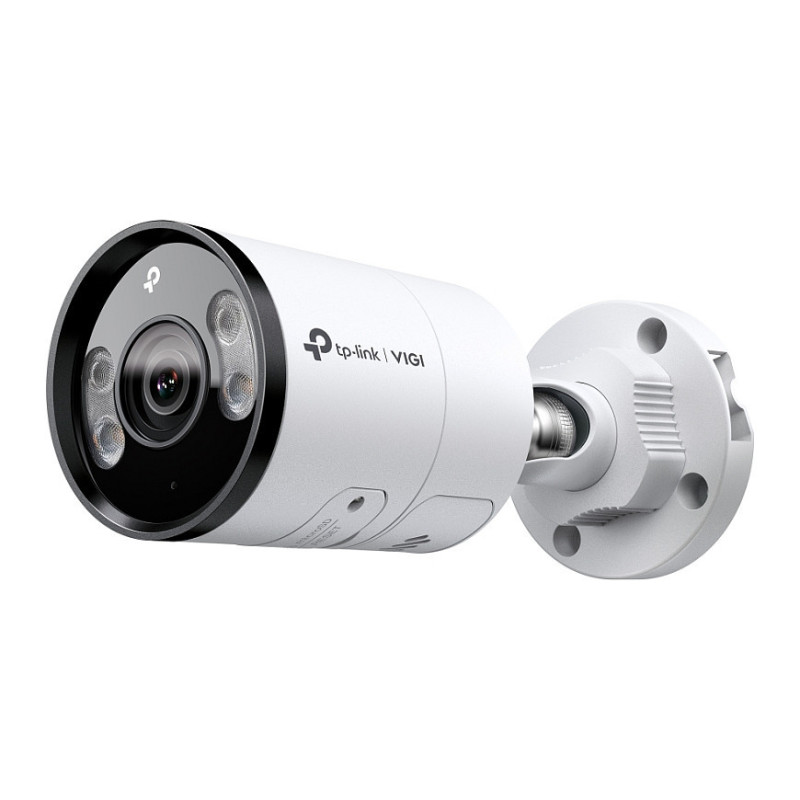

TP-Link INSIGHT S345

TP-Link INSIGHT S345. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 80.4°, Lens viewing angle, vertical: 41.8°, Lens viewing angle, diagonal: 98.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Maximum operating distance: 80 m
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Remote viewing
Dynamic range: 120 dB

Design

Form factor: Bullet
Mounting type: Wall
Product colour: White
Housing material: Metal
Protection features: Waterproof
International Protection (IP) code: IP67
Feature: Weatherproof

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 80.4°
Lens viewing angle, vertical: 41.8°
Lens viewing angle, diagonal: 98.7°
Tilt angle range: 0 - 90°
Camera shutter speed: 1/3 to 1/10000

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Detect distance: 80 m
Observe distance: 33 m
Recognize distance: 16 m
Maximum aperture number: 1.6
Identify distance: 8 m
Fixed focal length: 4 mm

Night vision

Feature: Night vision
LED type: IR/White

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Feature: Video recording
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Digital Wide Dynamic Range (DWDR)

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: G.711 A-law
Sample rate: 8 kHz
Feature: Built-in microphone
Number of microphones: 1
Feature: Audio detection
Bit rate range: 0 - 64 Kbit/s

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Feature: Live view

Storage

Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Built-in siren
Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Alert notification type: Push notification
Feature: Motion sensor
Feature: Mirror
Feature: Human and vehicle targets classification

Management features

Feature: Web-based management
Feature: Web browser
Feature: Cloud-managed
Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 10.7 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 74 mm
Height: 74 mm
Length: 184 mm
Weight: 525 g

Packaging data

Package type: Box

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Screws included
Feature: Drilling template included
Feature: Manual
