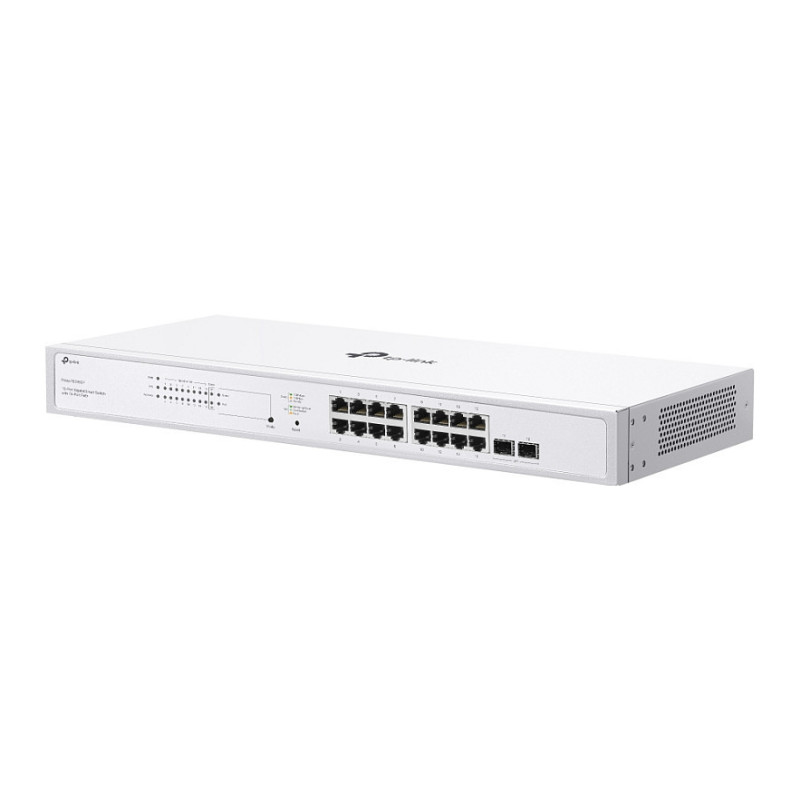

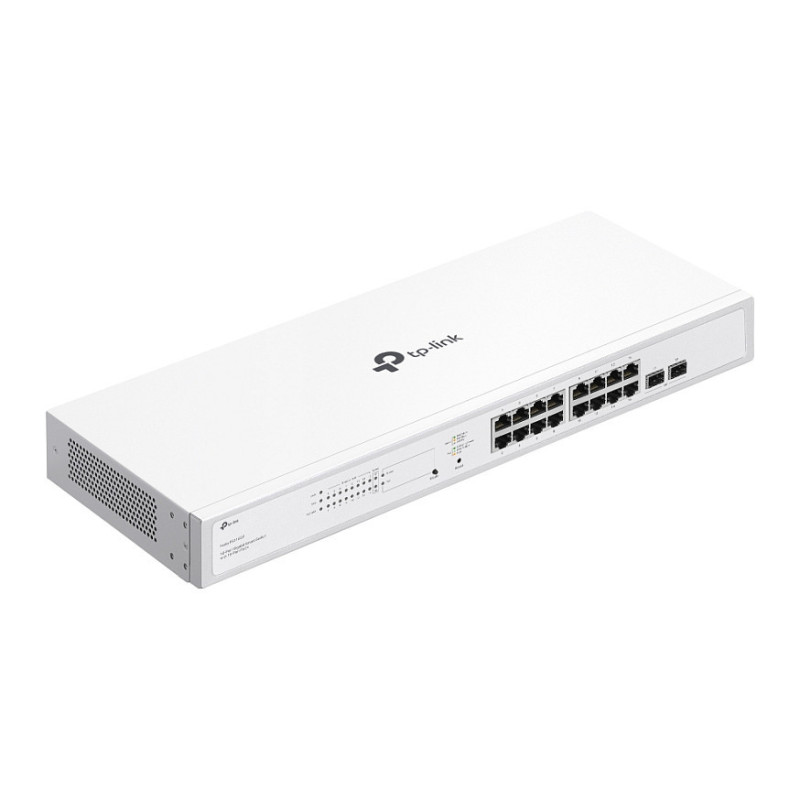

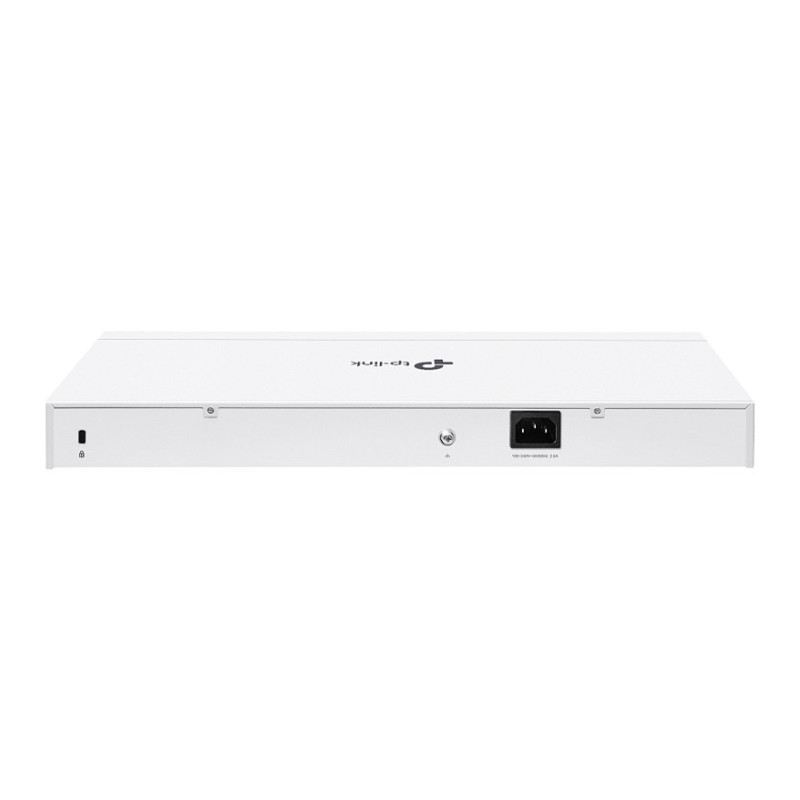

TP-Link Festa FS318GP

TP-Link Festa FS318GP. Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power over Ethernet (PoE). Rack mounting

Festa unifies APs, switches, and routers/gateways for full cloud-based management, offering an
easy, effective, and reliable business-level network controlled via app or web. Perfect for small
businesses, home offices, and cafes.

Management features

Switch layer: L2/L2+

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: VLAN support

Data transmission

Switching capacity: 36 Gbit/s
Forwarding rate: 26.78 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IP-MAC-Port binding

Design

Feature: Rack mounting
LED indicators: Yes

Performance

Internal memory: 256 MB
Flash memory: 32 MB
Feature: Firmware upgradeable
Feature: Fanless

Power

Power source: AC/PoE
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 150 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm
