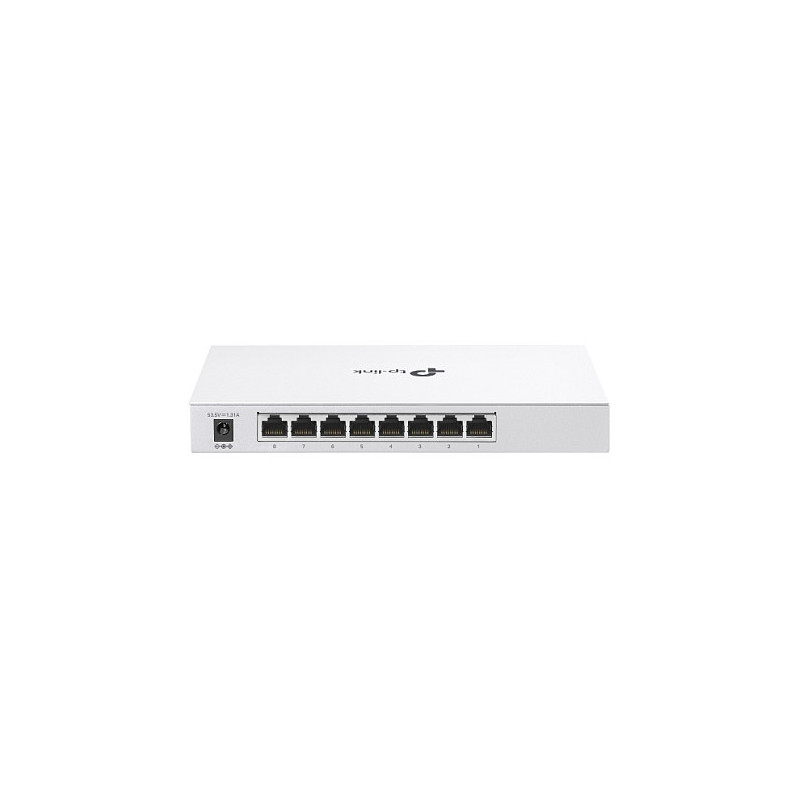

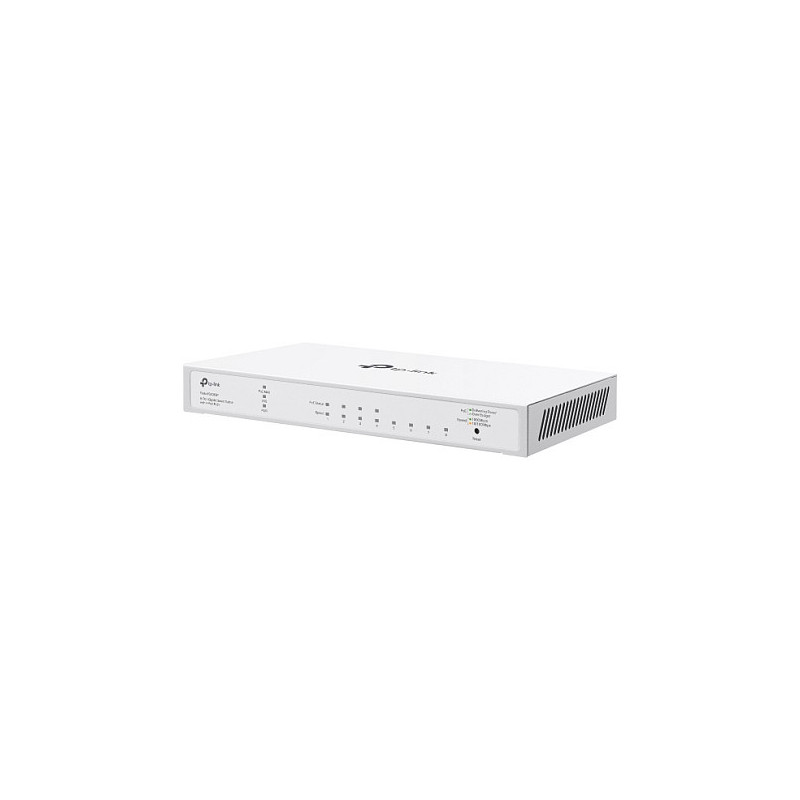

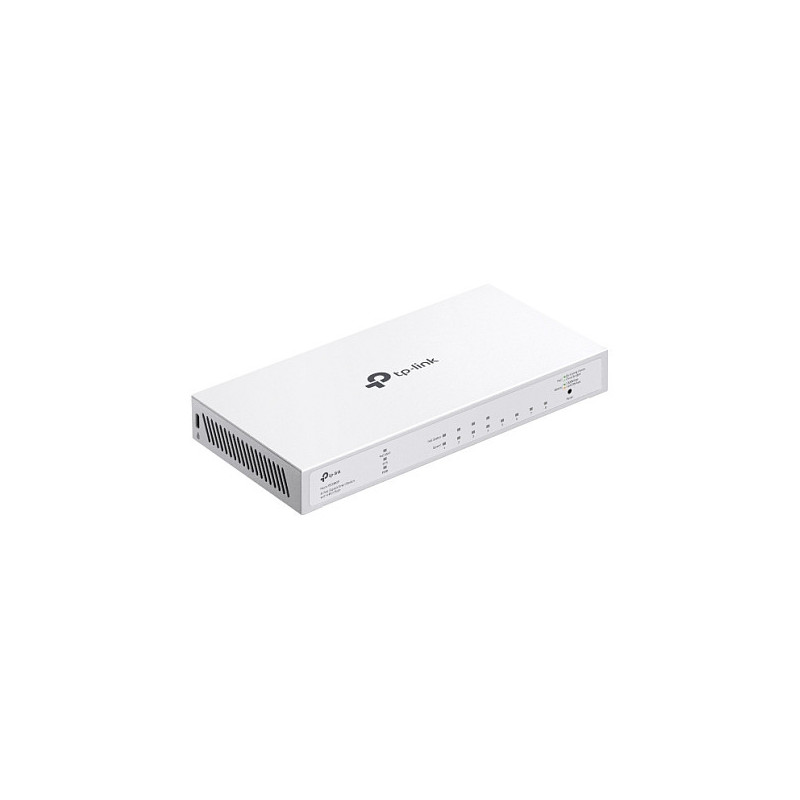

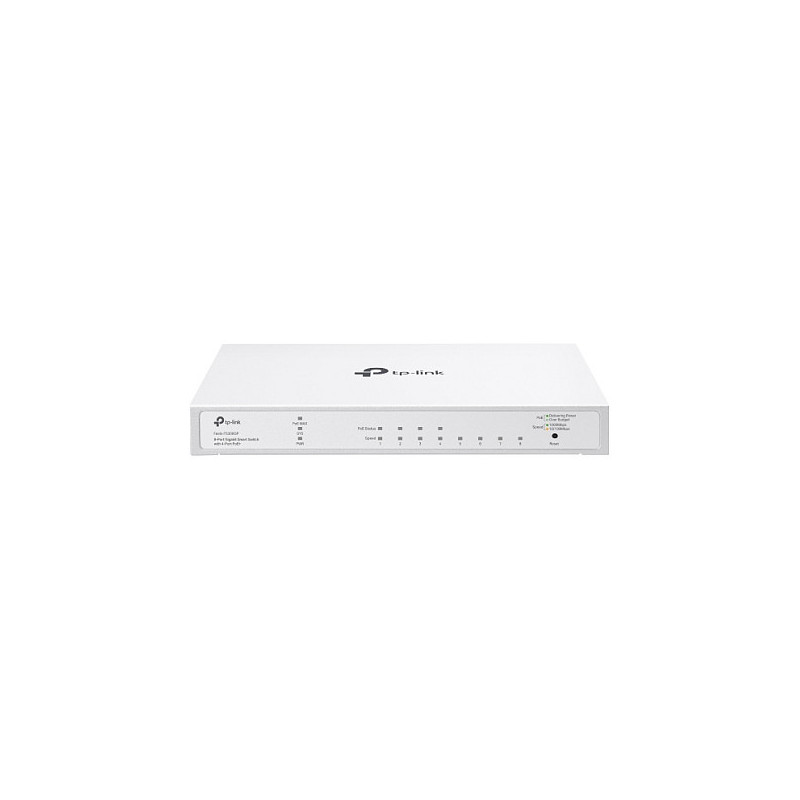

TP-Link FESTA FS308GP network switch

TP-Link FESTA FS308GP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.3af, IEEE 802.3at. DC input voltage: 53.5 V. Power over Ethernet (PoE). Rack mounting

Management features

Switch type: Managed

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 2

Network

Networking standards: IEEE 802.1ab, IEEE 802.3af, IEEE 802.3at
10G support: No
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
VLAN support: Yes

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 9
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP relay, DHCP server
IGMP snooping: Yes

Protocols

IPv4 IPv6 features: IPv4/IPv6 access-control list (ACL)

Design

Rack mounting: Yes
Stackable: No
Product colour: White
Reset button: Yes

Performance

Firmware upgradeable: Yes
Fanless: Yes

Power

Power source: DC
DC input voltage: 53.5 V
Input current: 1.31 A

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 62 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 209 mm
Depth: 126 mm
Height: 26 mm

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
