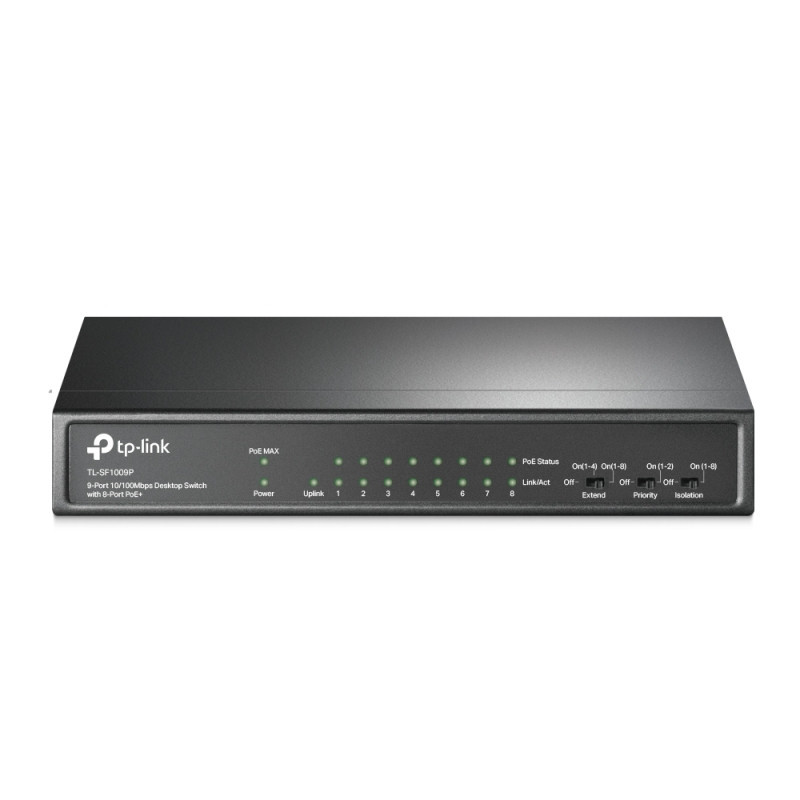

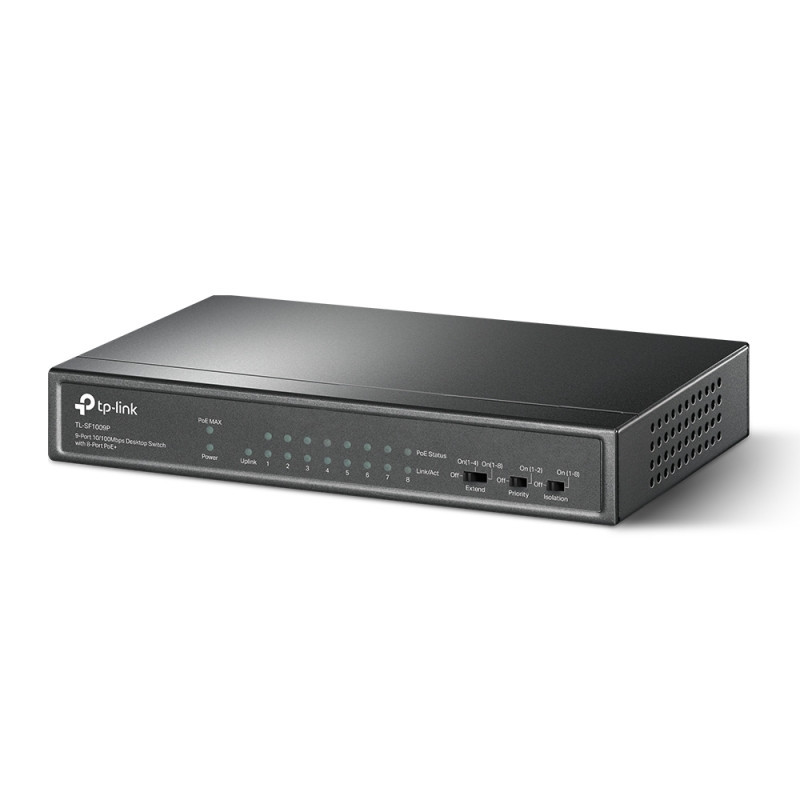

TP-LINK 9-Port 10 / 100Mbps Desktop Switch with 8-Port PoE+
Product reference: 18-TL-SF1009P

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

TP-LINK 9-Port 10 / 100Mbps Desktop Switch with 8-Port PoE+
TP-LINK 9-Port 10 / 100Mbps Desktop Switch with 8-Port PoE+
TP-LINK 9-Port 10 / 100Mbps Desktop Switch with 8-Port PoE+
TP-LINK 9-Port 10 / 100Mbps Desktop Switch with 8-Port PoE+
TP-LINK 9-Port 10 / 100Mbps Desktop Switch with 8-Port PoE+
TP-LINK 9-Port 10 / 100Mbps Desktop Switch with 8-Port PoE+

TP-LINK 9-Port 10 / 100Mbps Desktop Switch with 8-Port PoE+

Product reference: 18-TL-SF1009P

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3772 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

  • 9× 10/100 Mbps RJ45 ports

  • 8× PoE+ ports transfer data and power on individual cables

  • Works with IEEE 802.3af/at compliant PDs

  • Supports PoE Power up to 30 W for each PoE port

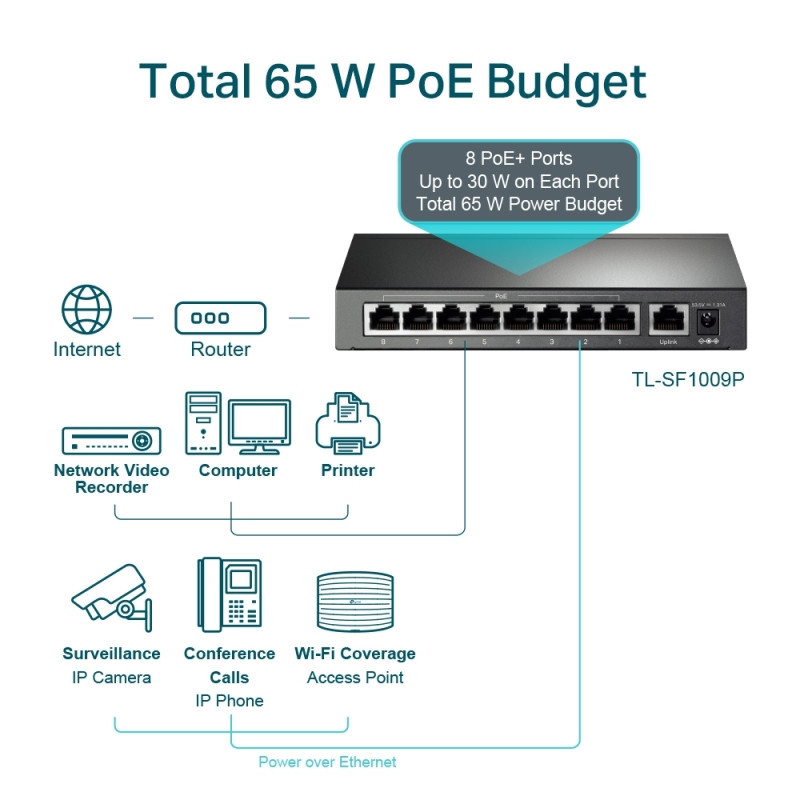

  • Supports PoE Power up to 65 W for 8 PoE ports*

  • Up to 250 m data and power transmitting range under Extend Mode**

  • Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive applications

  • Isolation Mode allows one-click client traffic separation for higher security and performance

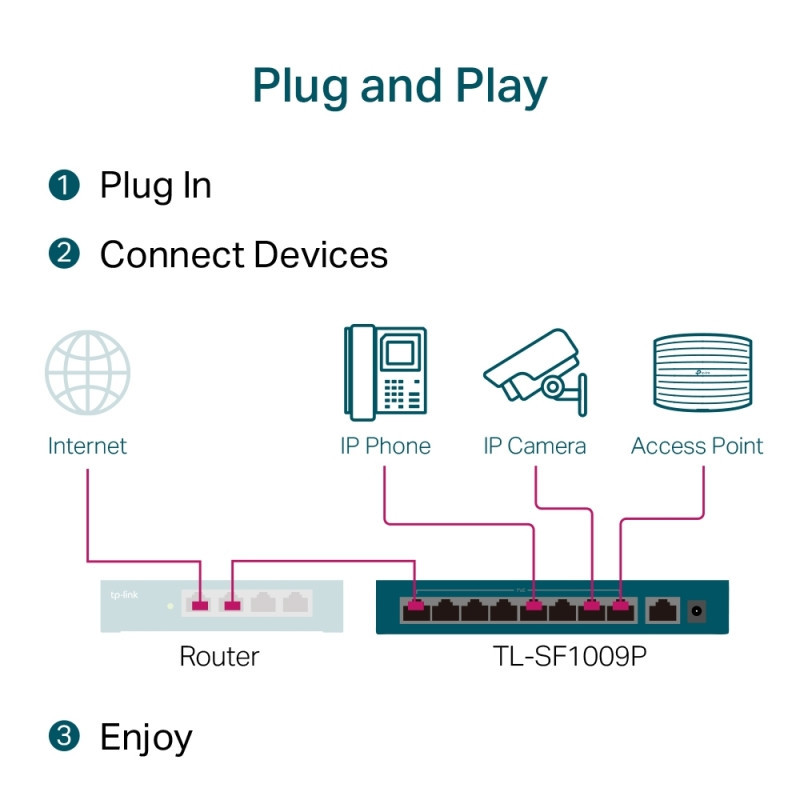

  • Plug and play with no configuration required


Learn more about TP-Link PoE technology >






























































HARDWARE FEATURES
Interface• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate1.3392 Mpps
PoE Ports (RJ45)• Standard: 802.3 af/at compliant • PoE Ports: Ports 1-8 • Power Supply: 65 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.8 Gbps
Dimensions (W x D x H)6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption• 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation• 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected)

















SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1-2) • Isolation Mode Button (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode





















OTHERS
CertificationFCC, CE, RoHS
Package Contents• TL-SF1009P • Power Adapter • Installation Guide
Environment• Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
