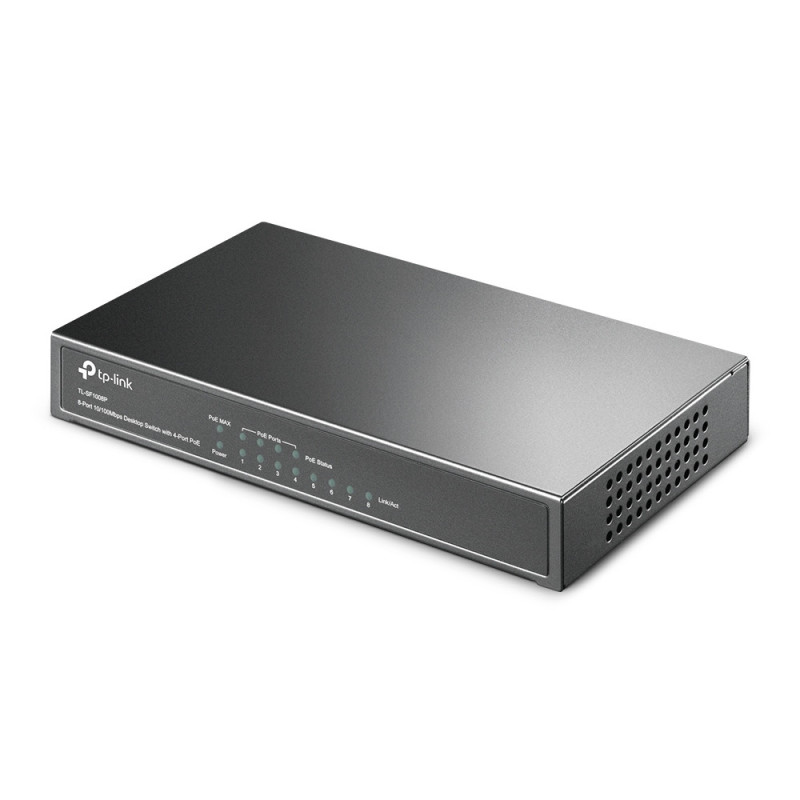

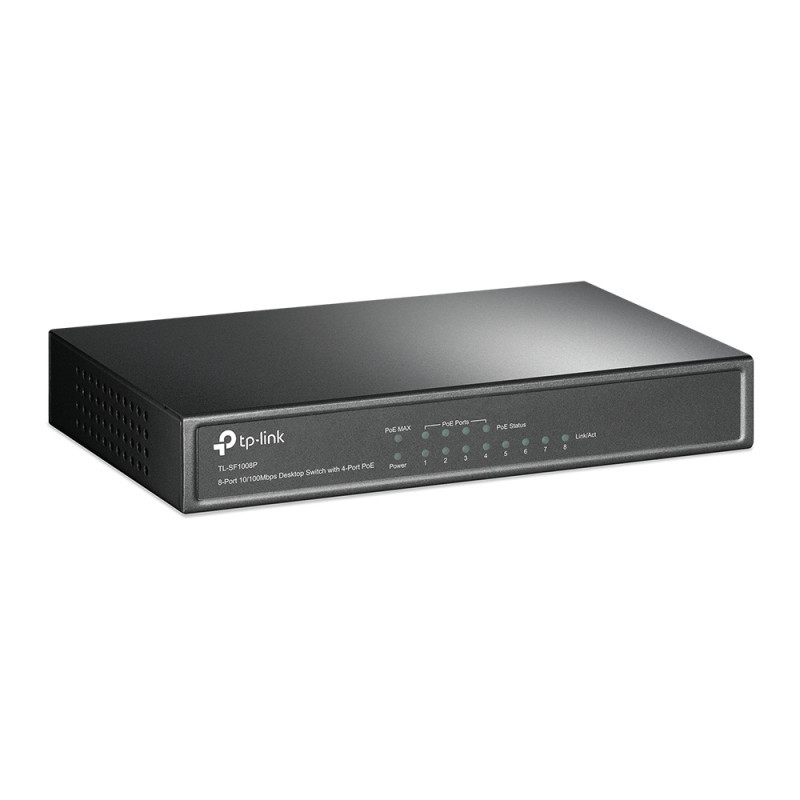

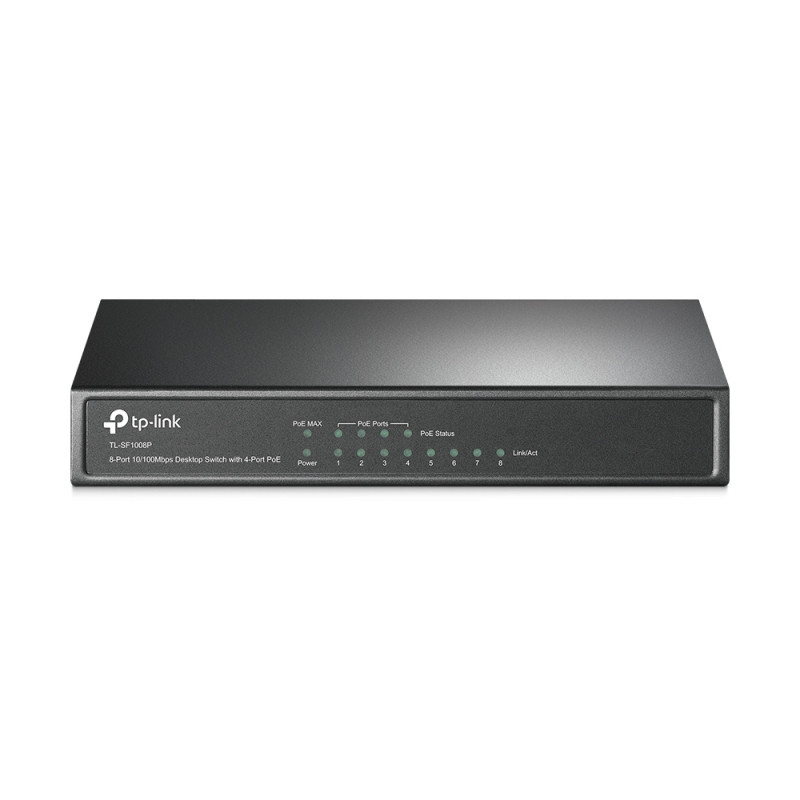

TP-LINK 8-Port 10 / 100Mbps Desktop Switch with 4-Port PoE

• Supports PoE power up to 15.4W for each PoE port; • Supports PoE power up to 57W for all PoE ports; • Supports PoE IEEE 802.3af compliant PDS; • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex; • 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging; • LED indicators for monitoring power, link, activity; • External power adapter supply.

Hardware Features:

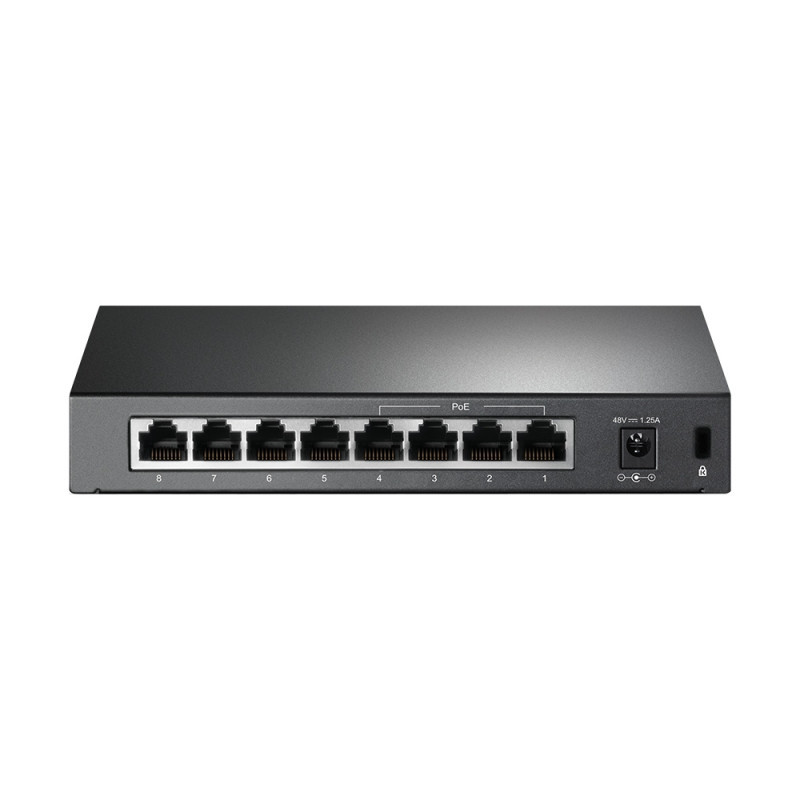

• Interface: * 8 10/100Mbps RJ45 Ports; * AUTO Negotiation/AUTO MDI/MDIX;

• Network Media: * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); * 100BASE-TX: UTP category 5, 5e cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m);

• Fan Quantity: Fanless;

• Power Consumption: * Maximum (PoE on): 60.2W (220V/50Hz); * Maximum (PoE off): 3.2W (220V/50Hz);

• External Power Supply: External Power Adapter (Output: 48VDC / 1.25A);

• PoE Ports (RJ45): * Standard: 802.3 af compliant; • PoE Ports: Port1- Port4; • Power Supply: 57W;

• Backbound Bandwidth: 1.6Gbps;

• Mac Address Table: 2K;

• Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27mm).

Software Features:

• Transmission Method: Store-And-Forward;

• Advanced Functions: * Compatible With IEEE 802.3af Compliant Pds; • Priority Function; • Mac Address Auto-Learning And Auto-Aging; • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode.

Others:

• Certification: FCC, CE, RoHS;

• Package Contents: TL-SF1008P, Power Adapter, User Guide;

• Consumption: * 2.3 watts (max. no PD connected); * 59.3 watts (max. with 57w PD connected);

• Environment: * Operating Temperature: 0 ~40 (32 ~104 ); * Storage Temperature: -40 ~70 (-40 ~158 ); * Operating Humidity: 10%~90% non-condensing; * Storage Humidity: 5%~90% non-condensing.
