TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
Product reference: 18-TL-SG1006PP

TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

Product reference: 18-TL-SG1006PP

TP-LINK 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
5120 €
Last product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

  • 6× 10/100/1000 Mbps RJ45 ports

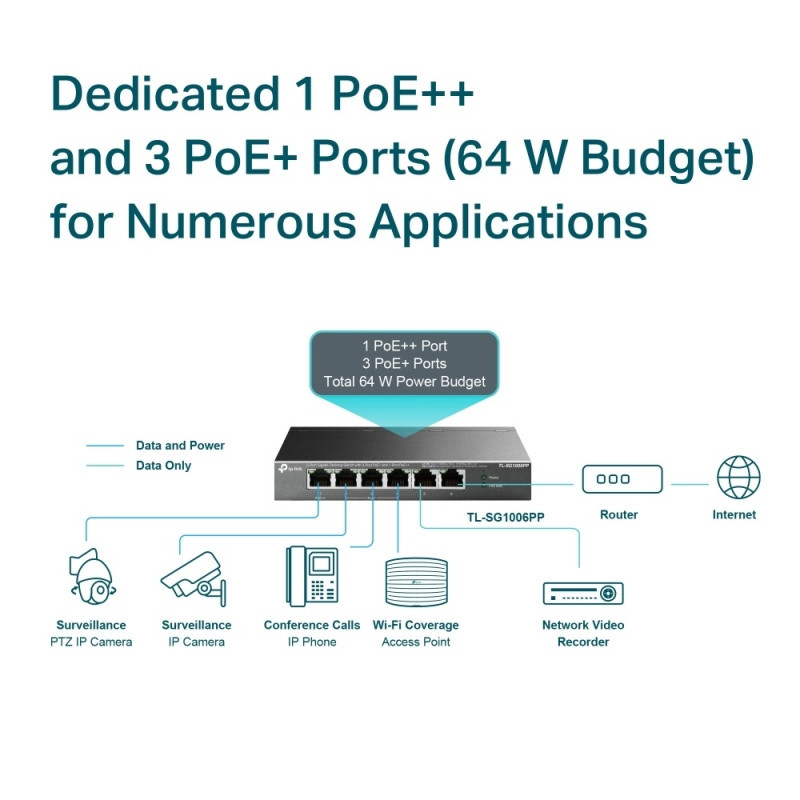

  • With one PoE++ port and three PoE+ ports, transfers data and power on one single cable

  • Works with IEEE 802.3af/at/bt compliant PDs

  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic

  • Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port

  • Supports PoE Power up to 64 W for all PoE ports

  • Up to 250m data and power transmitting range under Extend Mode

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

  • Plug and Play, no configuration and installation required






















































HARDWARE FEATURES
Interface• 6× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate8.928 Mpps
PoE Ports (RJ45)• Port 1 complies with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at • Power Supply: 64 W
Mac Address Table4K
Switching Capacity12 Gbps
Dimensions (W x D x H)6.2x4.0x1.0in (158x101x25mm)
Max Power Consumption• 4.75 W (220/50 Hz. no PD connected) • 71.46 W (220/50 Hz. with 64 W PD connected)
Max Heat Dissipation• 16.20 BTU/h (220/50 Hz. no PD connected) • 243.68 BTU/h (220/50 Hz. with 64 W PD connected)

















SOFTWARE FEATURES

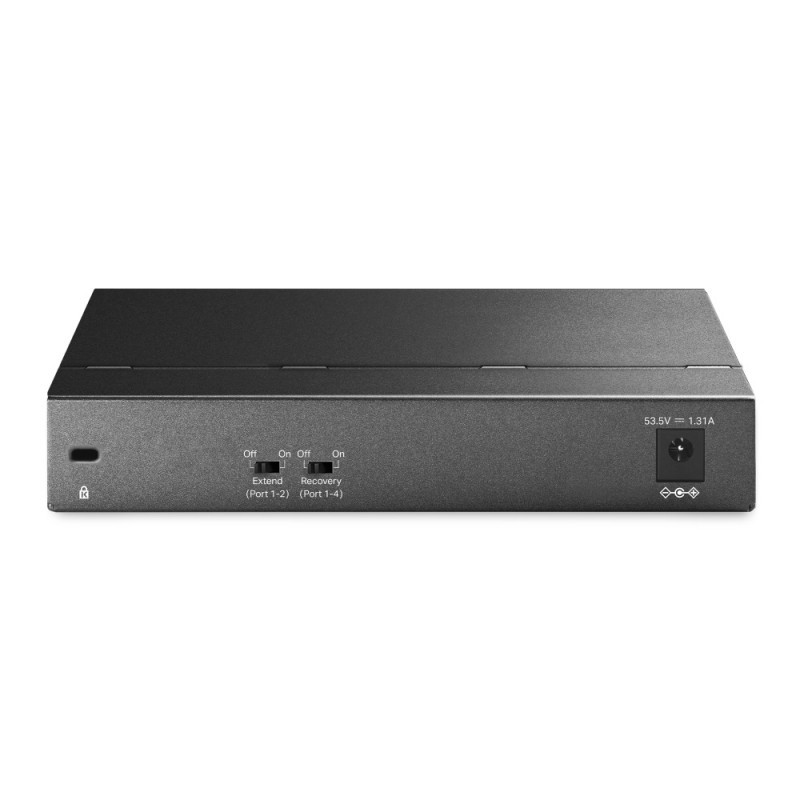

Advanced Features• Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4)
Transfer MethodStore-And-Forward





















OTHERS
CertificationFCC, CE, RoHS
Package Contents• TL-SG1006PP • Power Adapter • Installation Guide
Environment• Operating Temperature: 0-40 (32-104 ); • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
