TP-LINK 6-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
Product reference: 18-LS106LP

TP-LINK 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

TP-LINK 6-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 6-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 6-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 6-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 6-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 6-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+

TP-LINK 6-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+

Product reference: 18-LS106LP

TP-LINK 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2232 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

  • 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*

  • 41W total PoE budget*

  • Up to 250m data and power transmitting range under Extend Mode**

  • Automatically reboots your dropped or unresponsive PoE-powered devices.

  • Simply plug and play for instant connectivity with no configuration required.

  • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

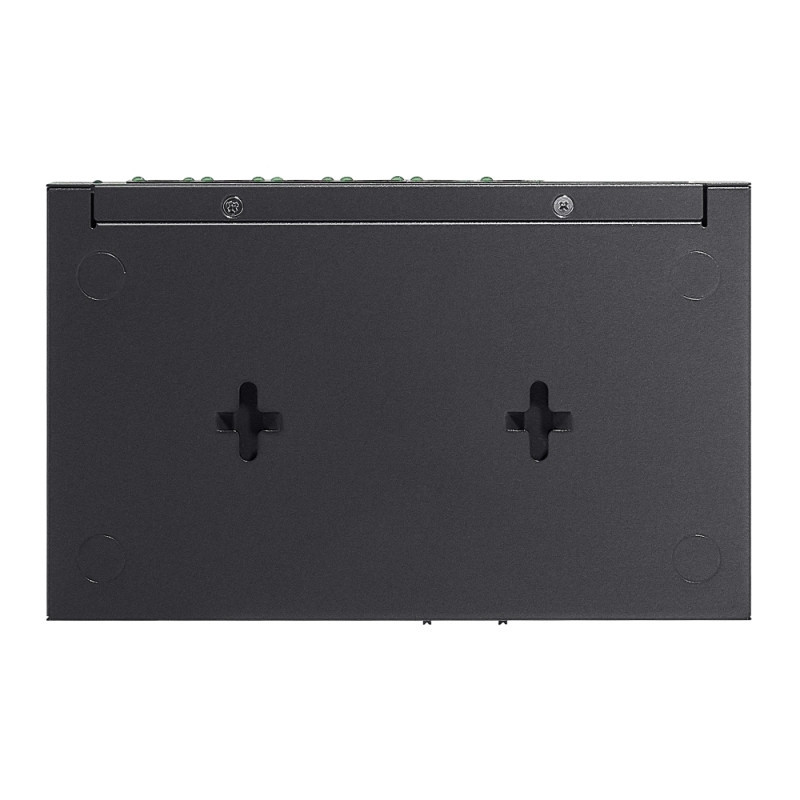

  • Desktop / Wall-mounting


*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.


**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.


















































HARDWARE FEATURES
Interface• 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ Ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Installation• Desktop • Wall Mounting
Power SupplyExternal Power Adapter (Output: 53.5VDC / 0.81A)
PoE Ports (RJ45)• Standard: 802.3 af/at compliant • PoE Ports: Ports 1-4, up to 30 W PoE output per port • Power Supply: 41 W
LED Indicator• Power • Link/Act • PoE Status • PoE MAX
Dimensions (W x D x H)6.2×4.0×1.0 in (158×101×25 mm)
Max Power Consumption• 2.53 W (220 V/50 Hz no PD connected) • 47.76 W (220 V/50 Hz with 41 W PD connected)
Max Heat Dissipation• 8.61 BTU/h (220 V/50 Hz no PD connected) • 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)

























PERFORMANCE
Switching Capacity1.2 Gbps
Packet Forwarding Rate0.8928 Mpps
MAC Address Table2K
Jumbo Frame2 KB

















SOFTWARE FEATURES
Advanced Features• Extend Mode: Ports 1-4 • PoE Auto Recovery: Ports 1-4 • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology
Transfer MethodStore and Forward





















OTHERS
CertificationCE, FCC, RoHS
Package Contents• LS106LP • Power Adapter • Installation Guide
Environment• Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
