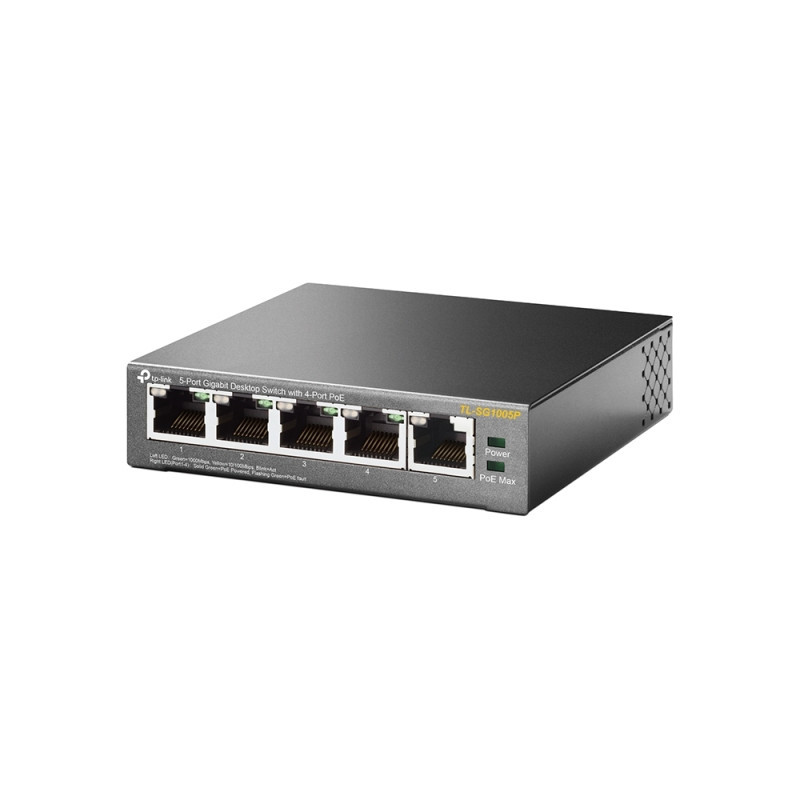

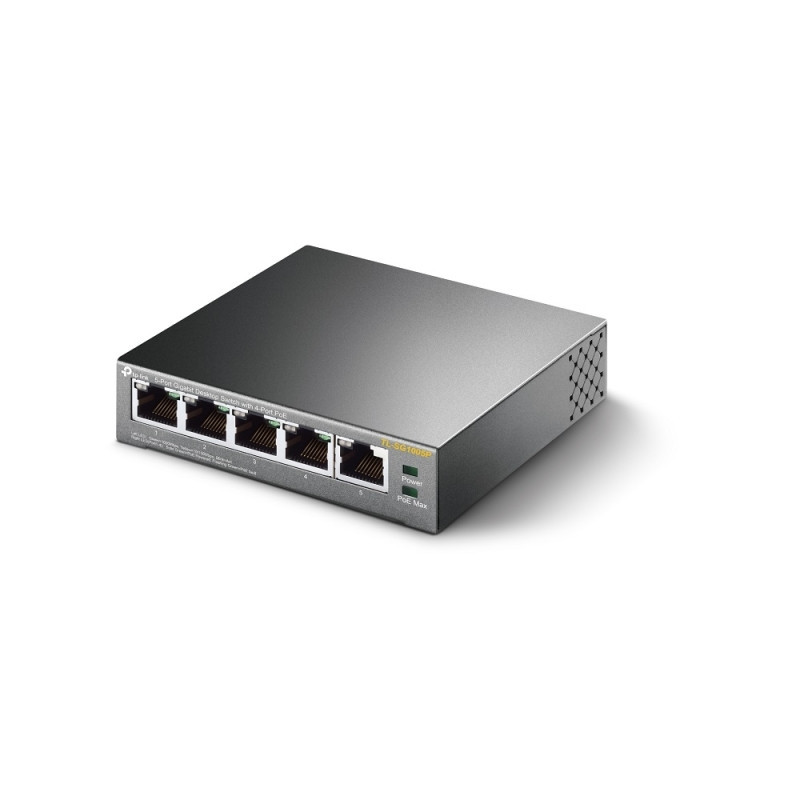

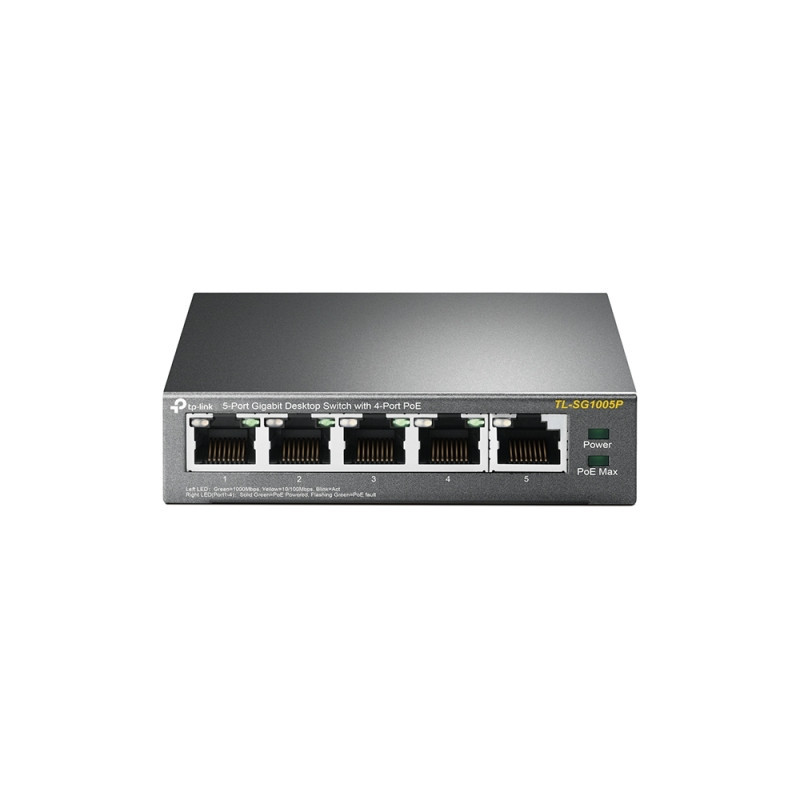

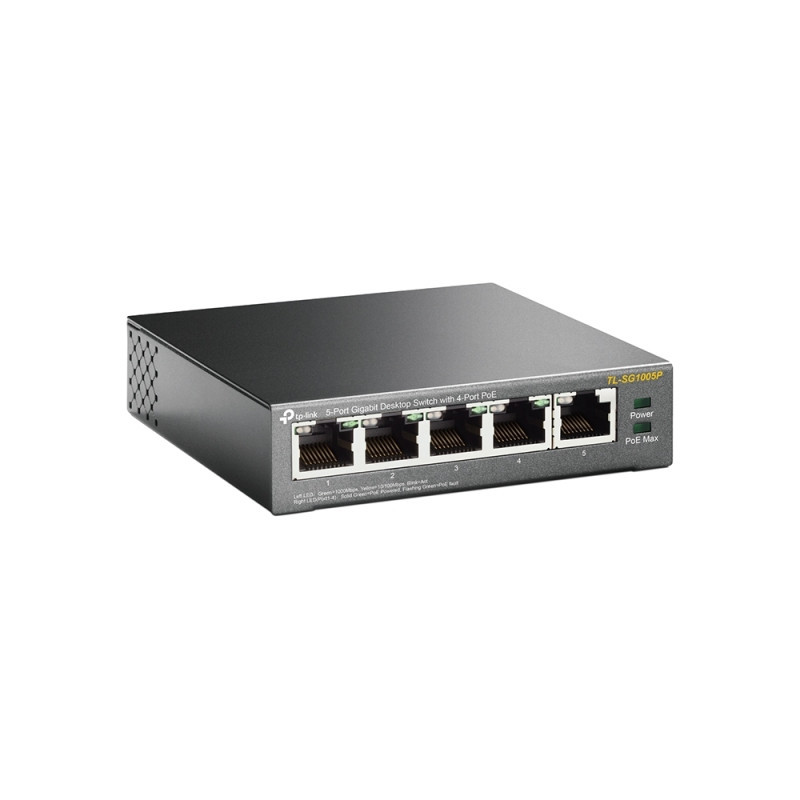

TP-LINK 5-Port Gigabit Desktop Switch with 4-Port PoE

• 5 10/100/1000Mbps RJ45 ports;

• With four PoE ports, transfers data and power on one single cable;

• Working with IEEE 802.3af compliant PDs, expands home and office network;

• 802.1p/DSCP QoS enable smooth latency-sensitive traffic;

• Supports PoE Power up to 15.4W for each PoE port;

• Supports PoE Power up to 56W for all PoE ports;

• Requires no configuration and installation.

Hardware Features:

• Interface: 5 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX; • Network Media: * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); * 100BASE-TX: UTP category 5, 5e cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); * 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); • Fan Quantity: Fanless; • Power Consumption: 63.31W (max. with 56w PoE device connected), 4.26W (max. no PoE device connected); • External Power Supply: External Power Adapter (Output: 48VDC / 1.25A); • PoE Ports (RJ45): • Standard: 802.3 af compliant; * PoE Ports: Port1- Port4; • Power Supply: 56W; • Backbound Bandwidth: 10Gbps; • Mac Address Table: 2K; Dimensions (W x D x H): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25mm).

Software Features:

• Advanced Features: * Compatible With IEEE 802.3af Compliant Pds; • Priority Function; • Mac Address Auto-Learning And Auto-Aging; • EEE802.3x Flow Control; • 802.1p/DSCP QoS; • IGMP Snooping; • Transfer Method: Store-And-Forward.

Others:

• Certification: FCC, CE, RoHS; • Package Contents: TL-SG1005P, Power Adapter, Installation Guide; • Environment: * Operating Temperature: 0 ~40 (32 ~104 ); * Storage Temperature: -40 ~70 (-40 ~158 ); * Operating Humidity: 10%~90%RH non-condensing; * Storage Humidity: 5%~90%RH non-condensing.
