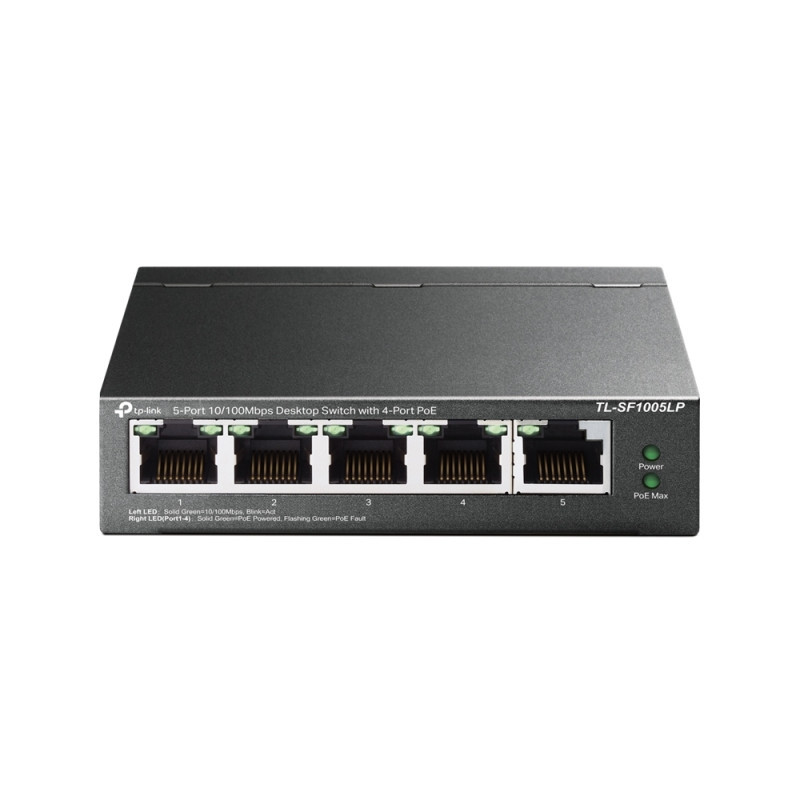

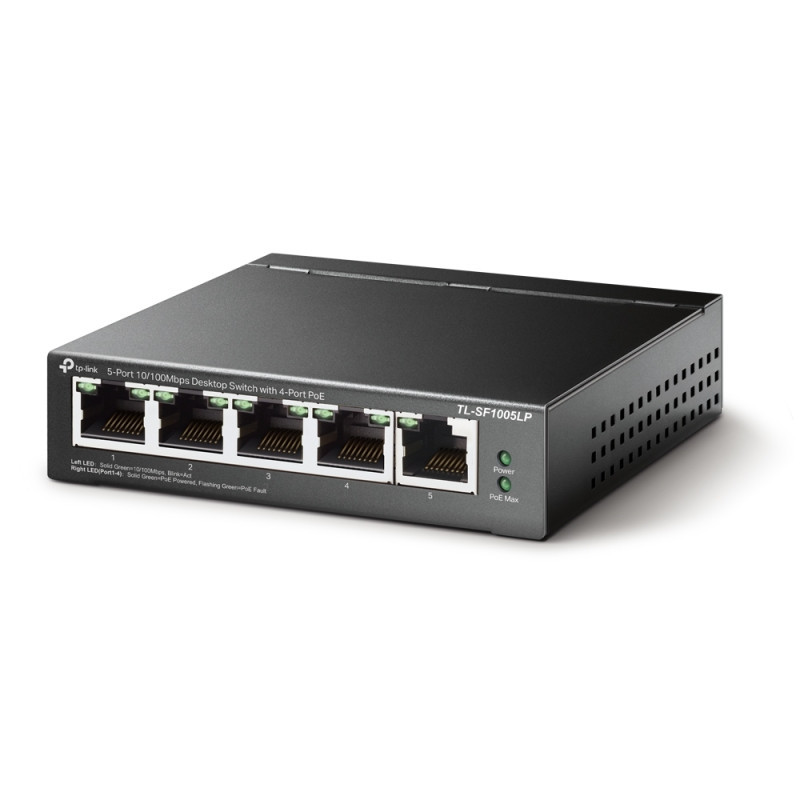

TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE
Product reference: 18-TL-SF1005LP

TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE

TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE

Product reference: 18-TL-SF1005LP

TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3266 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

  • 5× 10/100 Mbps RJ45 ports

  • 4× PoE ports transfer data and power on individual cables

  • Works with IEEE 802.3af compliant PDs

  • Up to 250 m data and power transmitting range under Extend Mode**

  • Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive applications

  • Supports PoE Power up to 41 W for all PoE ports*

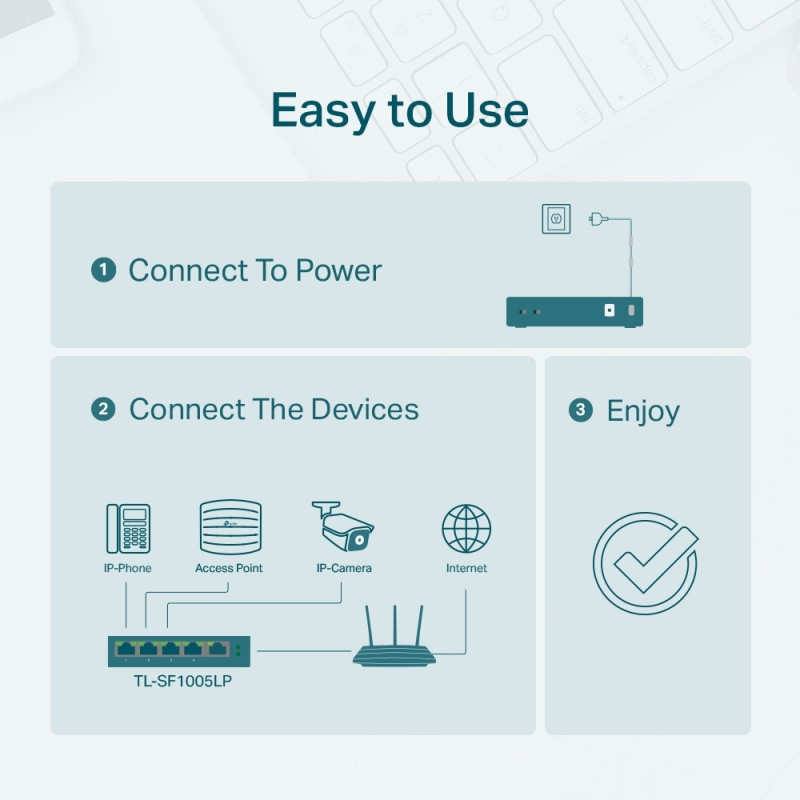

  • Plug and play with no configuration required


Learn more about TP-Link PoE technology >






























































HARDWARE FEATURES
Interface• 5× 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate0.744 Mpps
PoE Ports (RJ45)• Standard: 802.3 af compliant • PoE Ports: Ports 1-4 • Power Supply: 41 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1 Gbps
Dimensions (W x D x H)3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption• 1.9 W (220 V / 50 Hz, no PD connected) • 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation• 6.48 BTU/h(no PD connected) • 160.27 BTU/h(with 41 W PD connected)

















SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1-4) • Priority Mode Button (Ports 1-2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode





















OTHERS
CertificationFCC, CE, RoHS
Package Contents• TL-SF1005LP • Power Adapter • Installation Guide
Environment• Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
