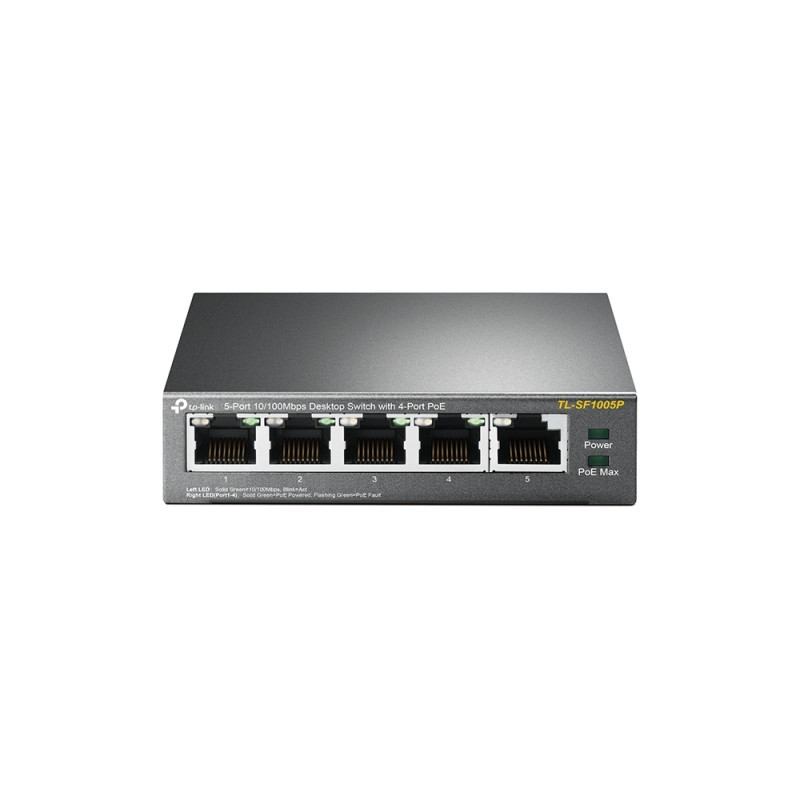

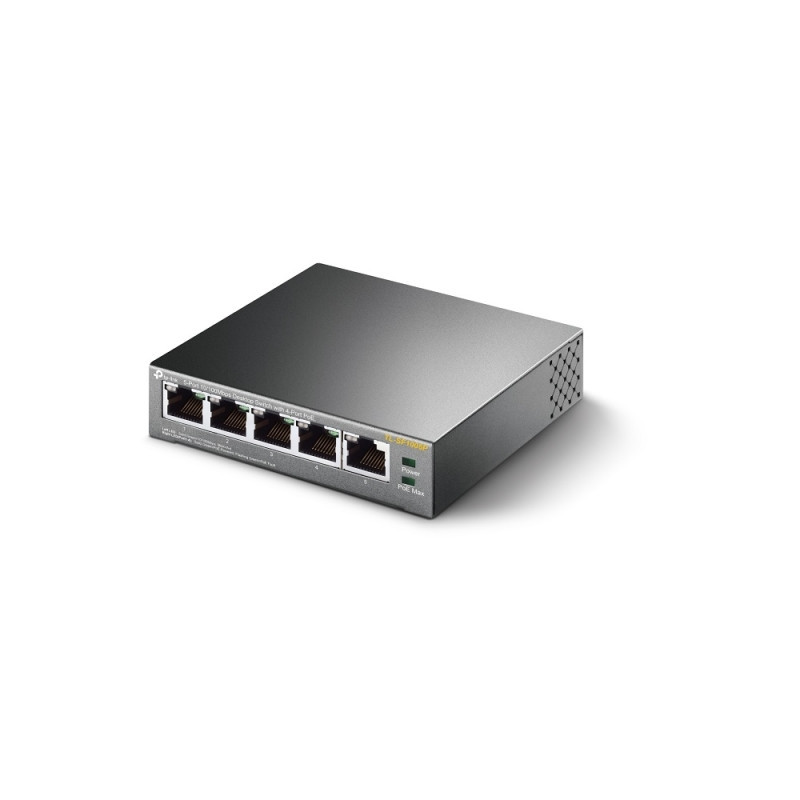

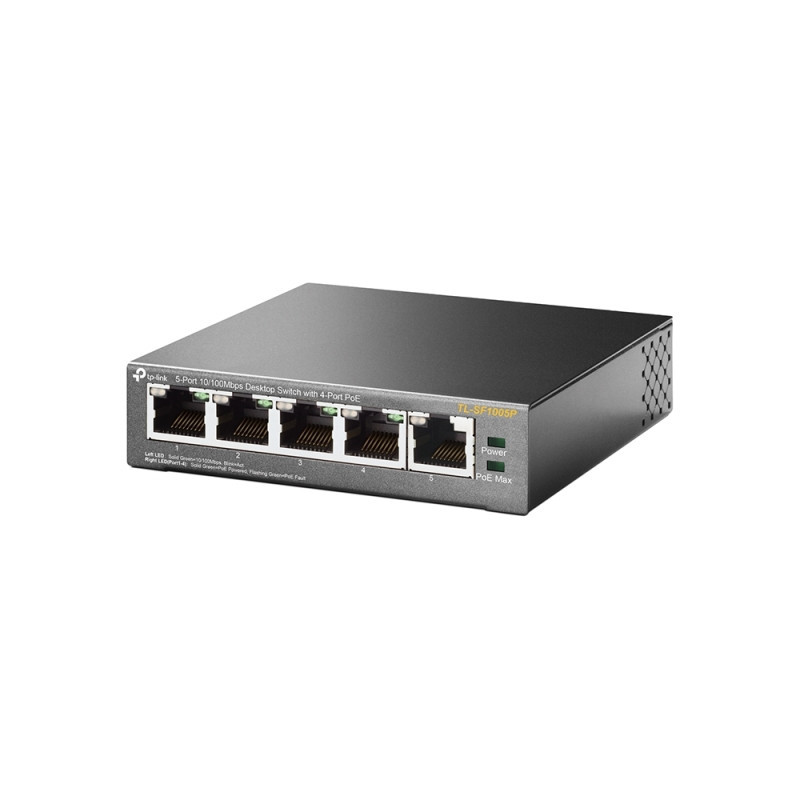

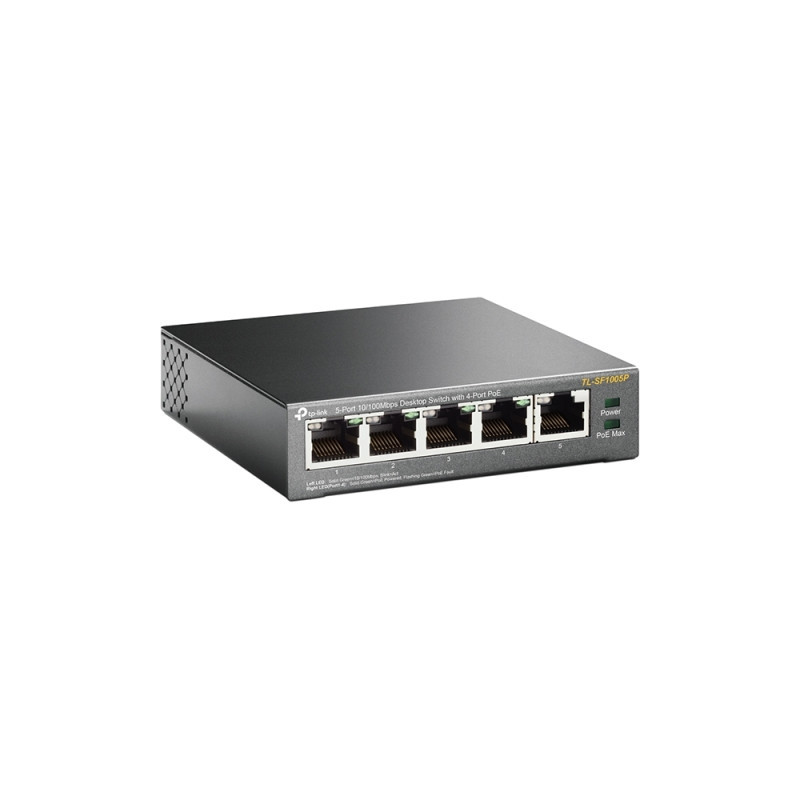

TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE

• 5 10/100Mbps RJ45 ports;

• With four PoE ports, transfers data and power on one single cable;

• Working with IEEE 802.3af compliant PDs, expands home and office network;

• Supports PoE Power up to 15.4W for each PoE port;

• Supports PoE Power up to 58W for all PoE ports;

• Requires no configuration and installation.

Hardware Features:

• Interface: 5 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX;•Network Media: *10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); *EIA/TIA-568 100Ω STP (maximum 100m); *100BASE-TX: UTP category 5, 5e cable (maximum 100m); *EIA/TIA-568 100Ω STP (maximum 100m);•Fan Quantity: Fanless;•External Power Supply: External Power Adapter (Output: 48VDC / 1.25A);•PoE Ports (RJ45): standard - 802.3 af compliant - PoE Ports: Port1- Port4;•Power Supply: 58W;•Mac Address Table: 2K;•Switching Capacity: 1Gbps;•Dimensions (W x D x H): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm);•Max Power Consumption: 63.51W (max. with 58w PD connected), 1.70W (max. no PD connected).

Software Features:

• Transmission Method: Store-And-Forward;•Advanced Functions: *Compatible With IEEE 802.3af Compliant Pds;•Priority Function;•Mac Address Auto-Learning And Auto-Aging;•IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode.

Others:

• Certification: FCC, CE, RoHS;•Package Contents: TL-SF1005P, Power Adapter, User Guide;•Environment: * Operating Temperature: 0 ~40 (32 ~104 ); * Storage Temperature: -40 ~70 (-40 ~158 ); * Operating Humidity: 10%~90%RH non-condensing; *Storage Humidity: 5%~90%RH non-condensing.
