TP-LINK 24-Port 10 / 100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

Key Features

•


  24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots





•


  High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*





•


  Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system





•


  Priority Mode ensures high priority of ports 1-8 to guarantee the quality of sensitive applications like video monitor





•


  Isolation Mode allows one-click client traffic separation for higher security and performance





•


  Plug and play, with no configuration and installation required




Professional High Power 24-Port PoE+ Switch

Plug and Play, with PoE Transmission for Surveillance up to 250 m

•


  250W PoE Budget*





•


  Transmission Distance up to 250 m**





•


  One-Click Priority Mode





•


  One-Click Traffic Separation





•


  Ultra HD Video





•


  Plug and Play

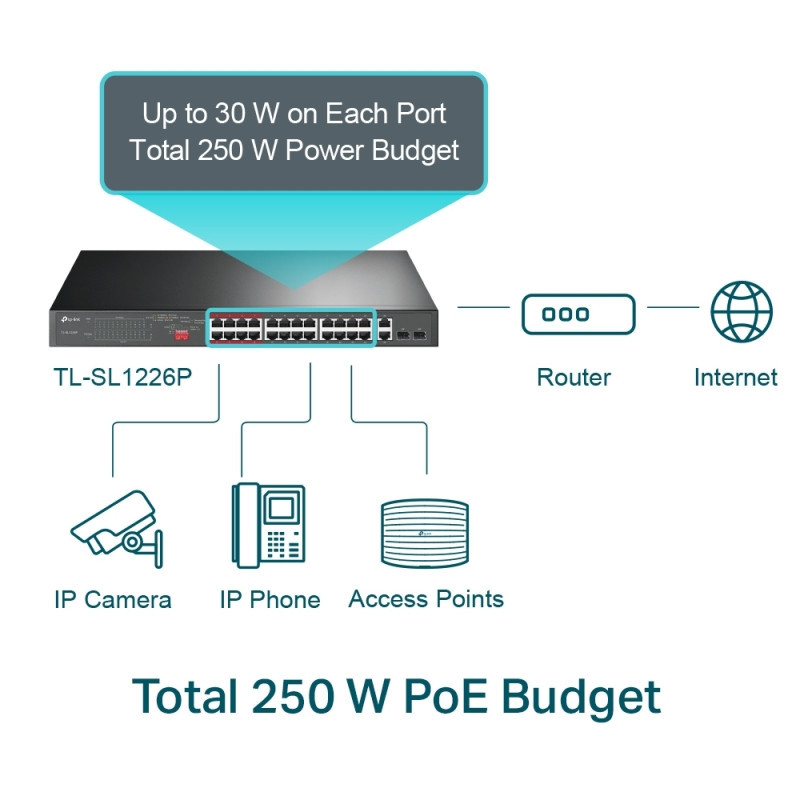

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

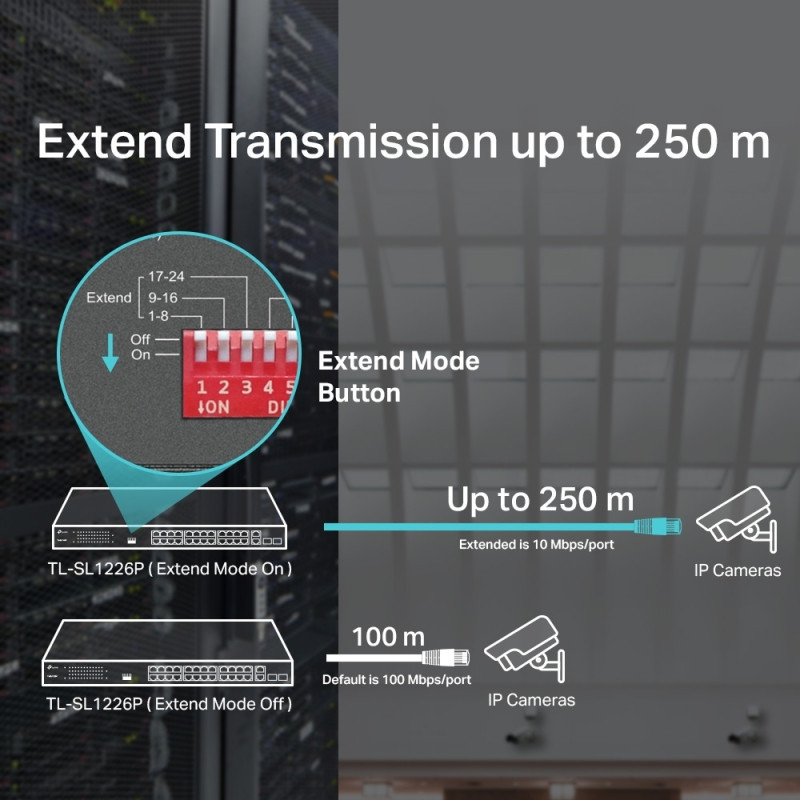

Dedicated Design for IP Surveillance—Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. Actual transmission distance may vary due to cable quality.

Dedicated Design for IP Surveillance—Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

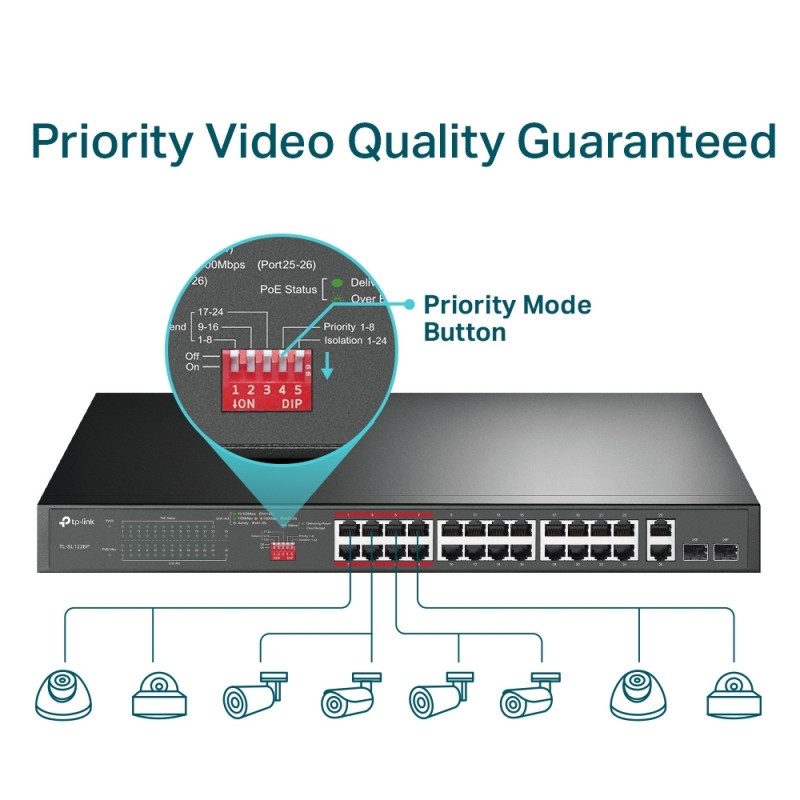

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-24

With one click, Isolation Mode easily divides traffic for ports 1-24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.

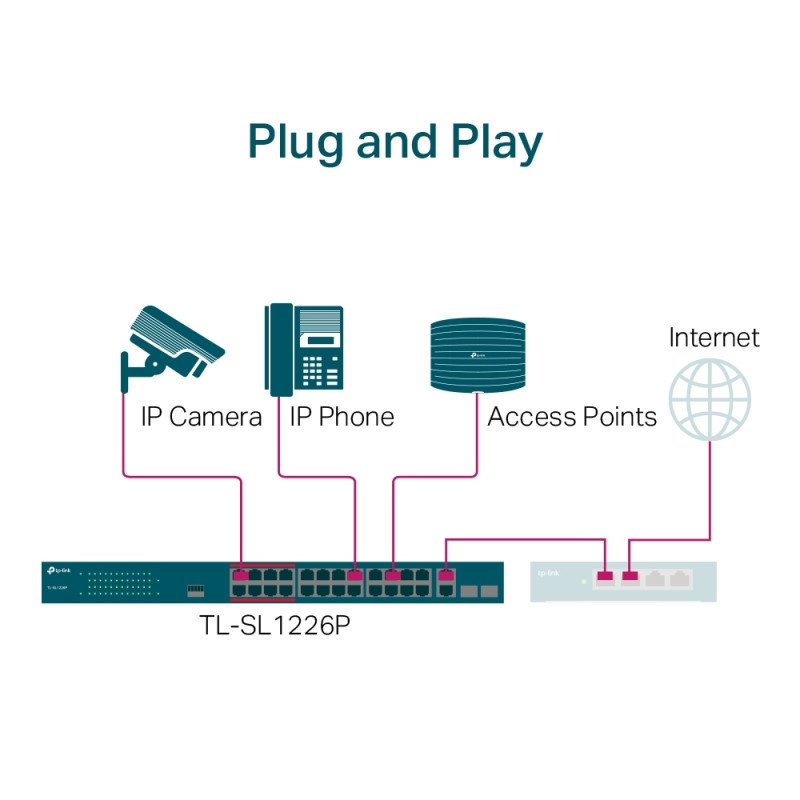

Plug and Play

1.


   Plug-In





2.


   Connect Devices





3.


   Enjoy




Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50 ) with reliability.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
