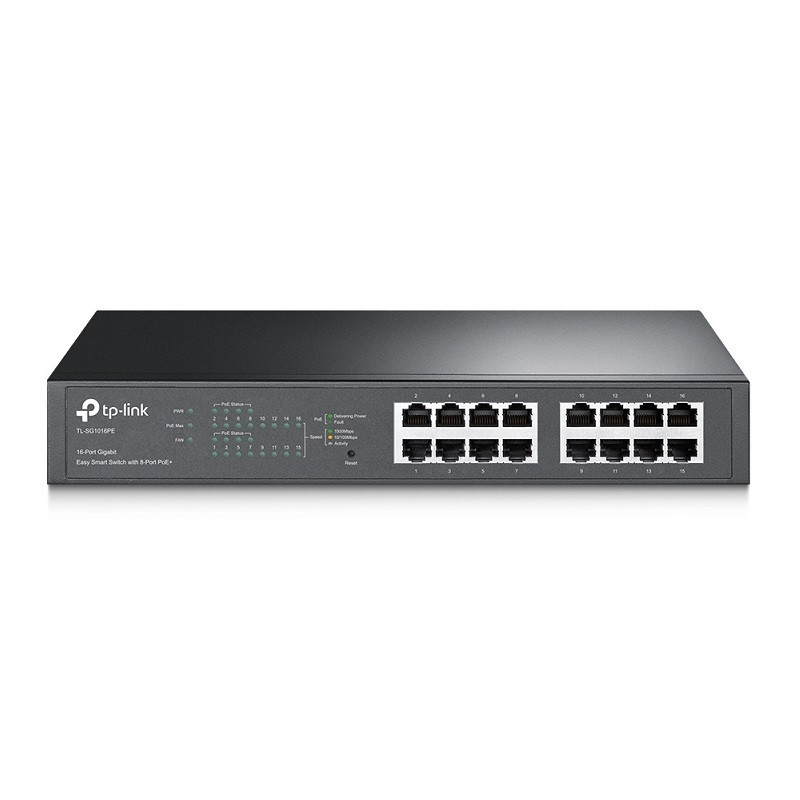

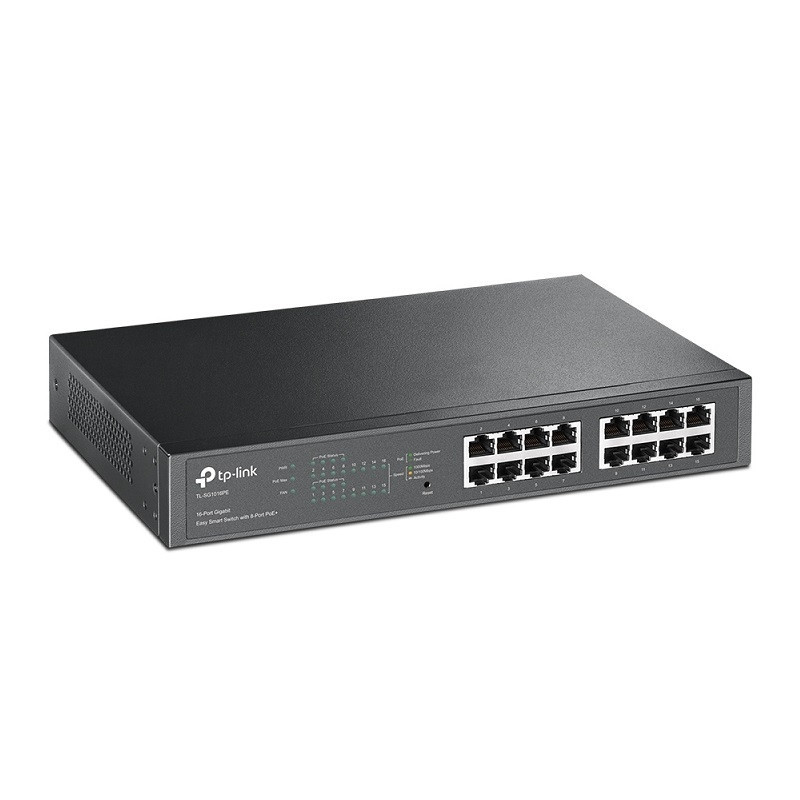

TP-LINK 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+

• 16 10/100/1000Mbps RJ45 ports;

• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable;

• With a total PoE power budget of 110W, up to 30W per port;

• Works with IEEE 802.3af/at compliant devices, expanding home and office networks;

• Simple network set-up on top of plug-and-play connectivity;

• Web-based user interface and management utility simplify configuration.

*Actual data may vary in different usage environments.

Learn more about TP-LINK PoE technology >

Hardware Features:

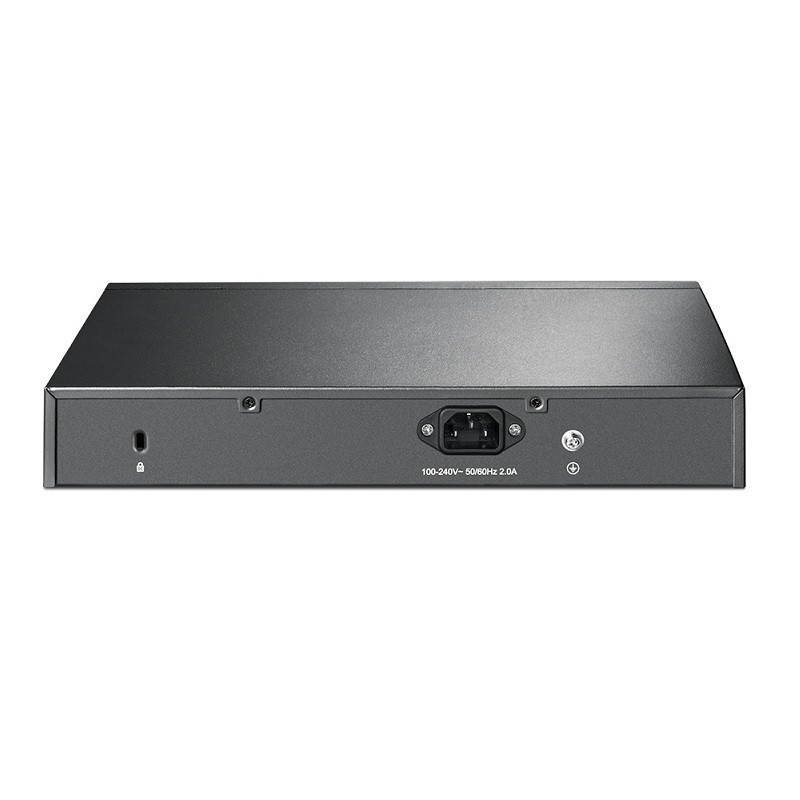

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p; • Interface: 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX; • Network Media: * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); * 100BASE-TX: UTP category 5, 5e cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); * 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); • Fan Quantity: 1; • Power Supply: 100-240VAC, 50/60Hz; • Power Consumption: Maximum: 124.4W (220V/50Hz); • PoE Ports (RJ45): * Standard: 802.3 at compliant; • PoE Ports: Port 1- Port 8; • PoE Power Budget: 110W; • Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44mm).

Performance:

• Switching Capacity: 32Gbps; • Packet Forwarding Rate: 23.8Mbps; • MAC Address Table: 8K; • Packet Buffer Memory: 4.1 Mbit; • Jumbo Frame: 9KB.

Software Features:

• Quality of Service: * Support Port-Based/802.1p/DSCP priority; * Support 4 priority queues; * Rate Limit; * Storm Control; • L2 Features: * IGMP Snooping V1/V2/V3; * Link Aggregation; * Port Mirroring; * Cable Diagnostics; * Loop Prevention; • VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN; • Management: Web-based GUI, Easy Smart Configuration Utility; • Transmission Method: Store-And-Forward.

Others:

• Certification: FCC, CE, RoHS; • Package Contents: * TL-SG1016PE; * Power Cord; * Installation Guide; * Resource CD; * Rackmount Kit; * Rubber Feet; • System Requirements: Microsoft® Windows® for running Utility; • Environment: * Operating Temperature: 0 ~40 (32 ~104 ); * Storage Temperature: -40 ~70 (-40 ~158 ); * Operating Humidity: 10%~90% non-condensing; * Storage Humidity: 5%~90% non-condensing.
