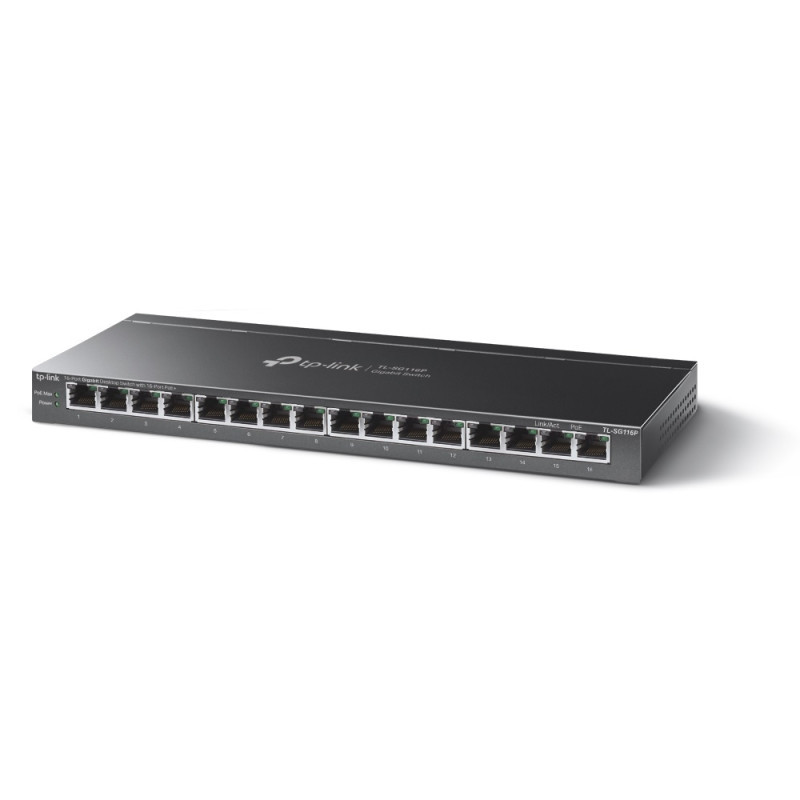

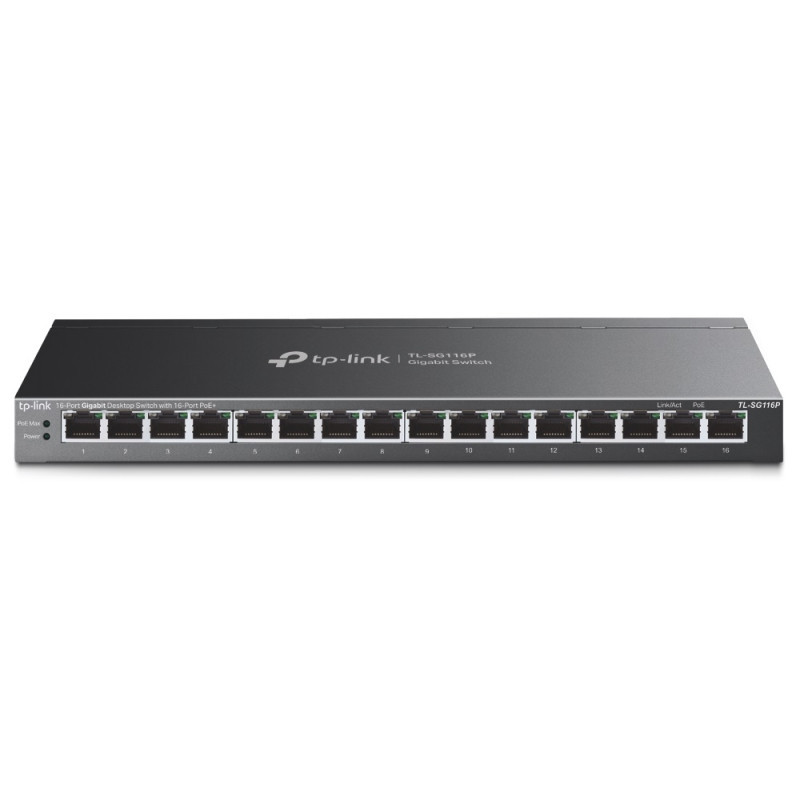

TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+
Product reference: 18-TL-SG116P

TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+

  • New
  • In stock
TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+
TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+
TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+
TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+
TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+

TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+

Product reference: 18-TL-SG116P

TP-LINK 16-Port Gigabit Desktop Switch with 16-Port PoE+

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
11152 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

Your message has been successfully sent!
Fill in the required fields*

  • 16× 10/100/1000 Mbps RJ45 ports

  • With 16 PoE+ ports, transfers data and power on one single cable

  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

  • Supports PoE Power up to 120 W for all PoE ports*

  • Up to 250 m data and power transmission range under Extend Mode**

  • Priority Mode ensures high priority of ports 1-4 to guarantee the quality of the sensitive applications

  • Isolation Mode allows one-click client traffic separation for higher security and performance

  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery

  • Plug and play with no configuration required






















































HARDWARE FEATURES
Interface• 16× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate23.8 Mpps
PoE Ports (RJ45)• Standard: 802.3 af/at compliant • PoE Ports: Ports 1-16 • Power Supply: 120 W
Mac Address Table8K, Auto-learning, Auto-aging
Switching Capacity32Gbps
Dimensions (W x D x H)11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
Max Power Consumption• 11.72 W (220 V / 50 Hz no PD connected) / 11.56 W (110 V / 60 Hz no PD connected) • 142.51 W (220 V / 50 Hz with 120 W* PD connected) / 144.28 W (110 V / 60 Hz with 120 W* PD connected)
Max Heat Dissipation• 39.85 BTU/h (220 V / 50 Hz no PD connected) / 39.31 BTU/h (110 V / 60 Hz no PD connected) • 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)

















SOFTWARE FEATURES
Advanced Features• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1-4) • Isolation Mode Button (Ports 1-7 / 8-14) • PoE Auto Recovery (Ports 1-16) • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
Transfer MethodStore-And-Forward





















OTHERS
CertificationFCC, CE, RoHS
Package Contents• TL-SG116P • Power Adapter • Installation Guide
Environment• Operating Temperature: 0-40 (32-104 ); • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
