TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
Product reference:
18-TL-SL1218MP
TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
Product reference:
18-TL-SL1218MP
TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days

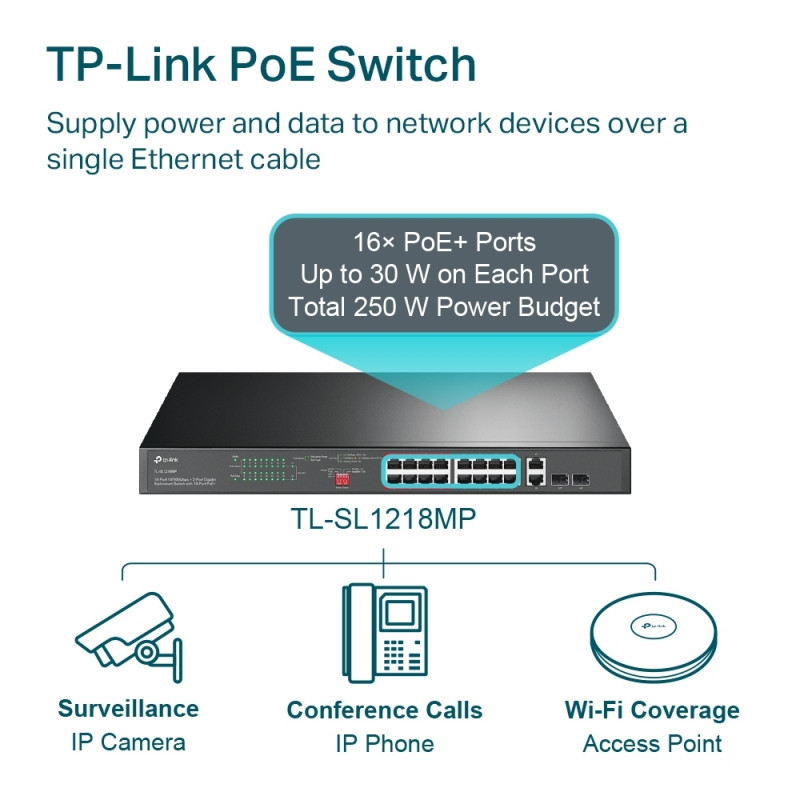

- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.*

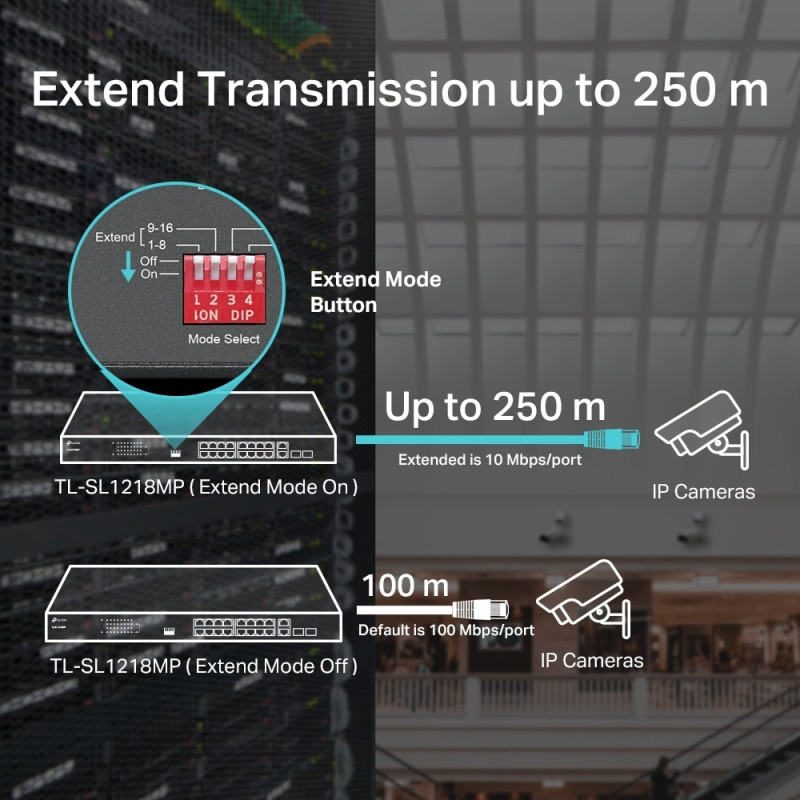

- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1-8 to guarantee the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 16 PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 2× Combo Gigabit SFP Slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1-16 • PoE Power Budget: 250 W |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | • 14.97 W (220/50Hz. no PD connected) • 285.8 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | • 51.05 BTU/h (no PD connected) • 974.58 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SL1218MP • Power Cable • Installation Guide • Two mounting brackets and the fittings |
| Environment | • Operating Temperature: 0-50 °C (32-122 °F) • Storage Temperature: -40-70 °C (-40-158 °F) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
