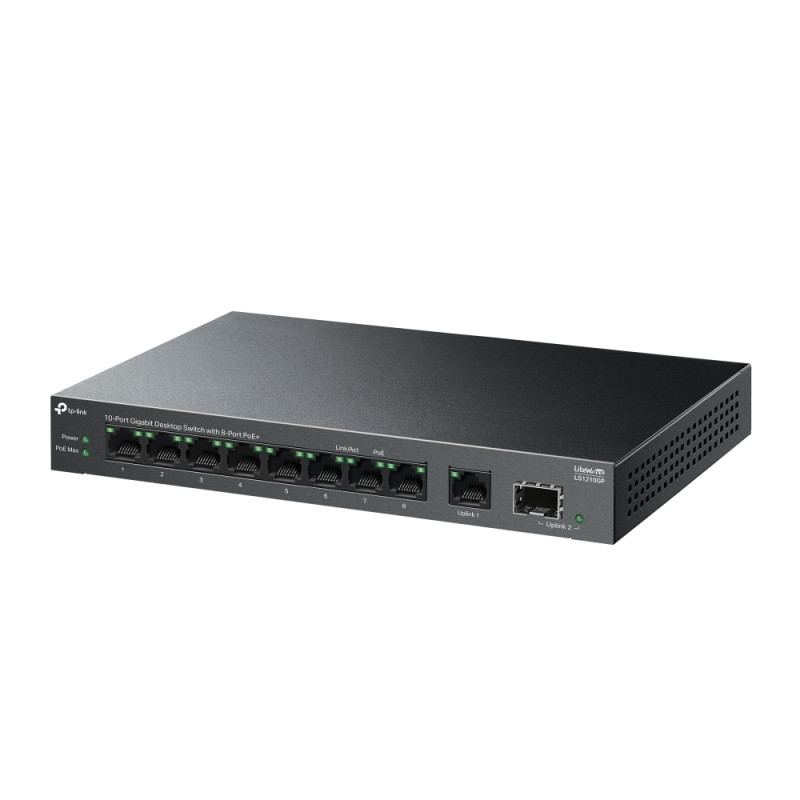

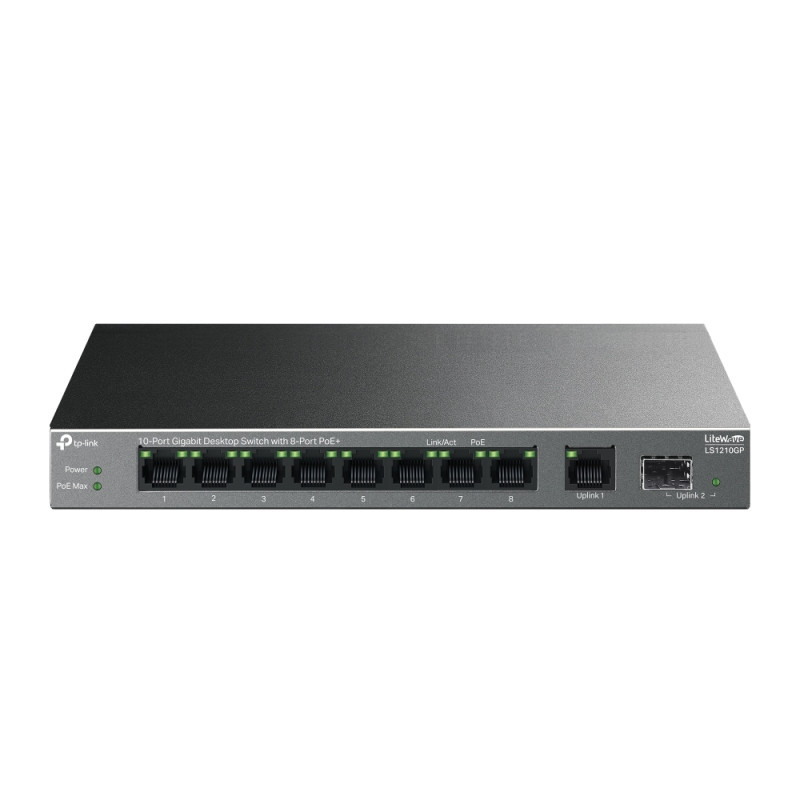

TP-LINK 10-Port Gigabit Desktop Switch with 8-Port PoE+
Product reference:
18-LS1210GP
TP-LINK 10-Port Gigabit Desktop Switch with 8-Port PoE+
TP-LINK 10-Port Gigabit Desktop Switch with 8-Port PoE+
Product reference:
18-LS1210GP
TP-LINK 10-Port Gigabit Desktop Switch with 8-Port PoE+
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
- Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
- 61W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
†The gigabit SFP port only operates at a speed of 1 Gbps and does not support negotiating slower speeds.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100/1000 Mbps RJ45 Ports (Ports 1-8 supports PoE+ output) • 1× Gigabit SFP Port |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mounting |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1-8, up to 30 W PoE output per port • PoE Power Budget: 61W |
| Dimensions (W x D x H) | 8.2×4.9×1.0 in (209×126×26 mm) |
| Max Power Consumption | • 7.3 W (220/50Hz. no PD connected) • 76.96 W (220/50Hz. with 61 W PD connected) |
| Max Heat Dissipation | • 24.82 BTU/h (no PD connected) • 261.66 BTU/h (with 61 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
|---|---|

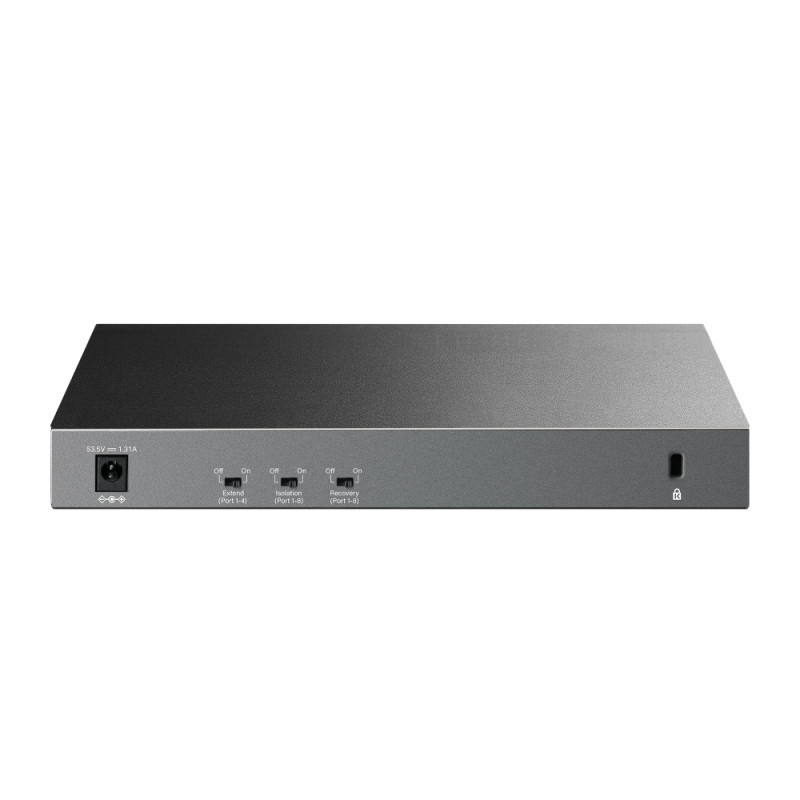

| Advanced Features | • Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1-8) • PoE Auto Recovery Button (Ports 1-8) • Compatible With IEEE 802.3af/at Compliant PDs • IEEE802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • LS1210GP • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
