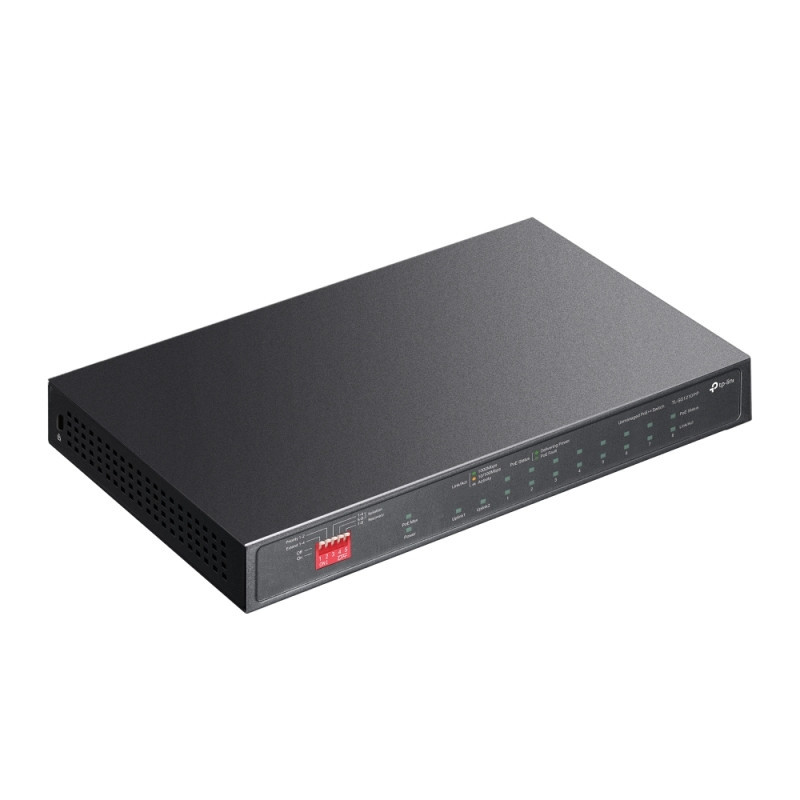

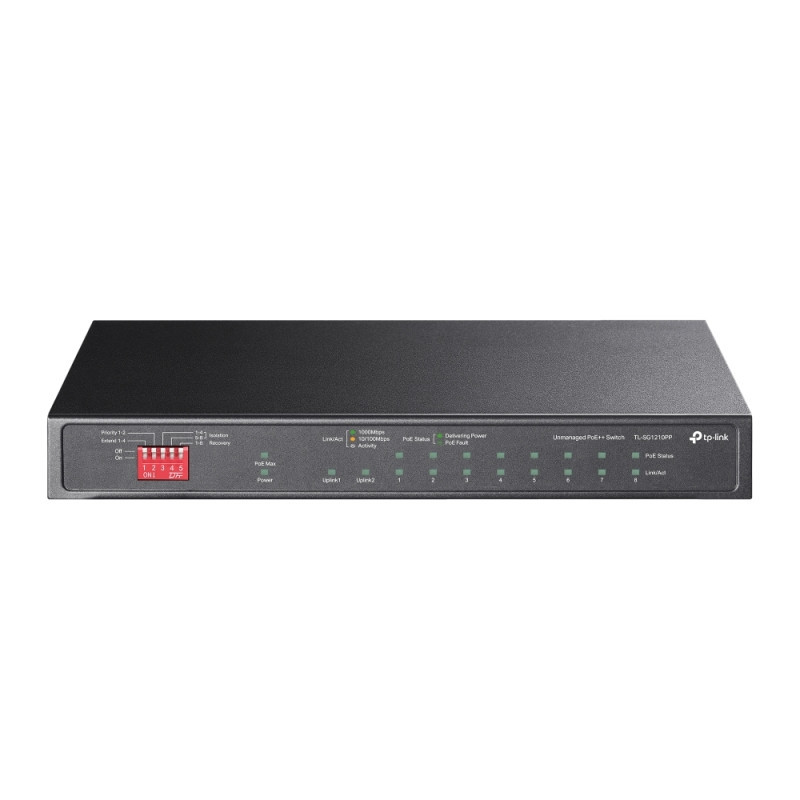

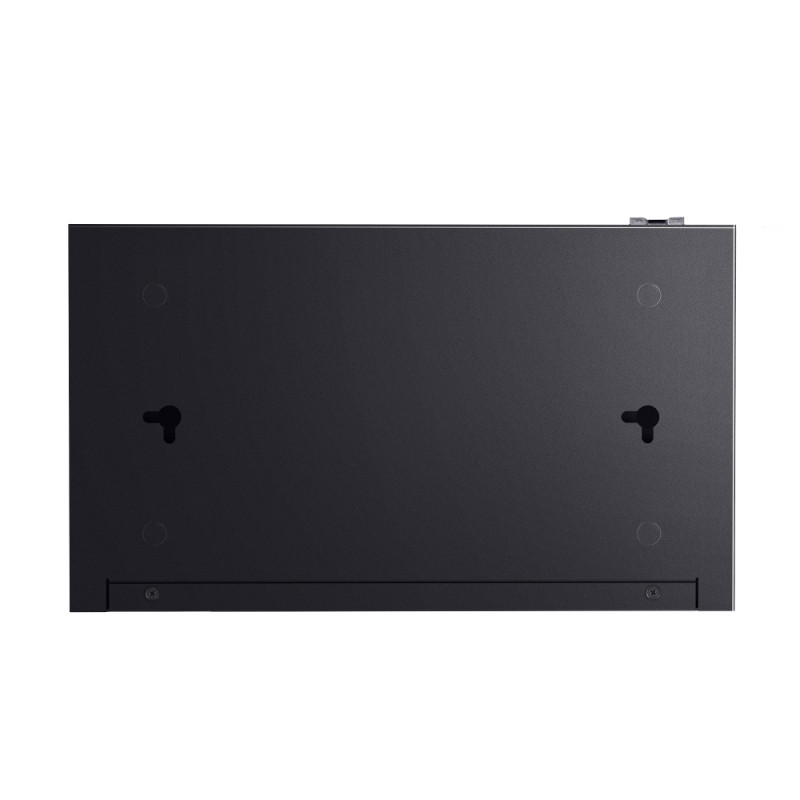

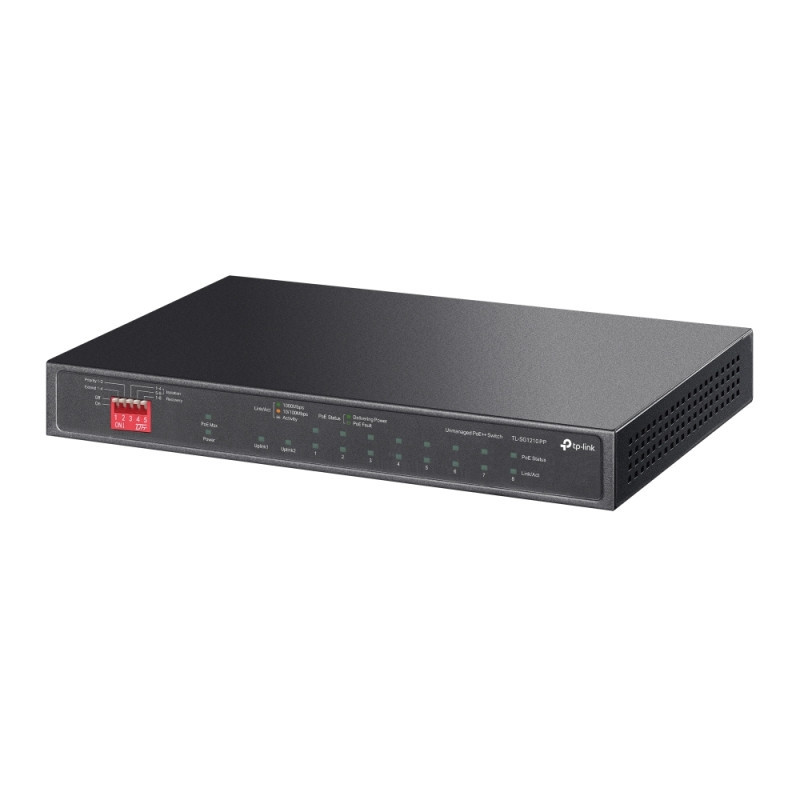

TP-LINK 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

• 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port


• With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable


• Works with IEEE 802.3af/at/bt compliant PDs


• 802.1p/DSCP QoS enable smooth latency-sensitive traffic


• Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port


• Supports PoE Power up to 123 W for all PoE ports*


• Plug and Play, no configuration and installation required


• Up to 250m data and power transmitting range under Extend Mode**


• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices


• Isolation Mode allows one-click client traffic separation for higher security and performance


• Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

△Numbers after different modes represent the effective ports for that mode.
