Wire Tracer - UNI-T UT25CL Ethernet, Telephone and Power Cable Tester, 480 V AC/DC
Product reference:
14-6935750525081

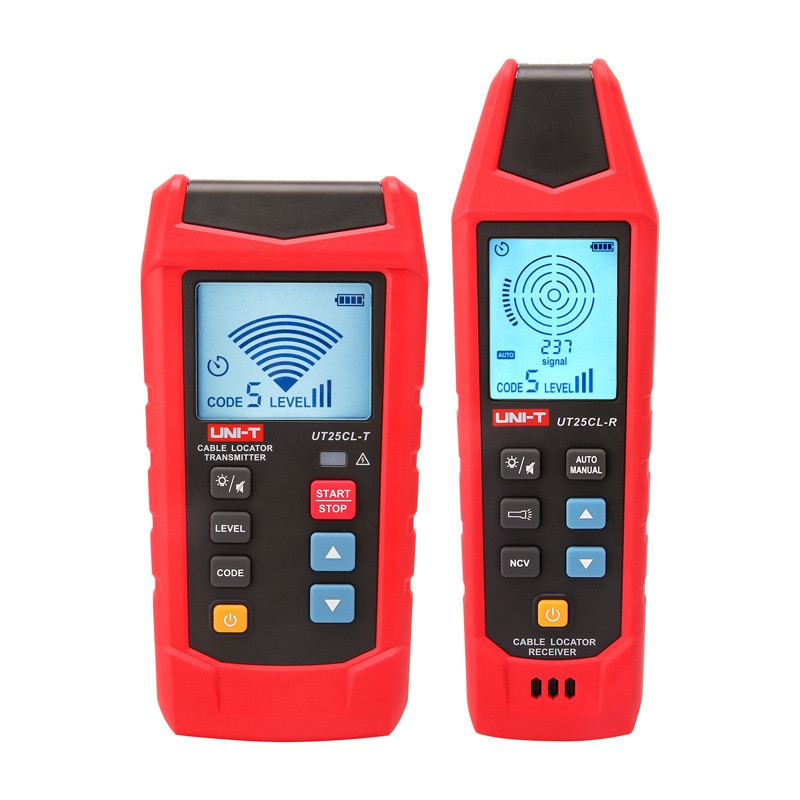

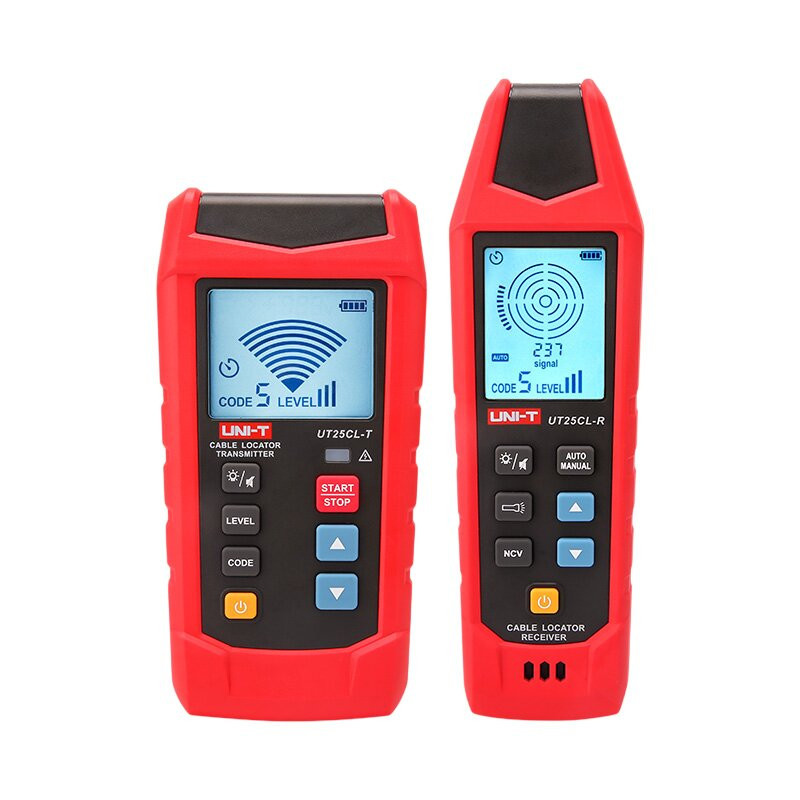

A wire locator with a transmitter and receiver for locating Ethernet, telephone and electrical cables without removing the insulation. It can check cables for shorts, breaks and wiring errors, and detect voltages up to 480 V AC/DC.
Wire Tracer - UNI-T UT25CL Ethernet, Telephone and Power Cable Tester, 480 V AC/DC
Product reference:
14-6935750525081
A wire locator with a transmitter and receiver for locating Ethernet, telephone and electrical cables without removing the insulation. It can check cables for shorts, breaks and wiring errors, and detect voltages up to 480 V AC/DC.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
UNI-T UT25CL
Wire locator with transmitter and receiver for locating Ethernet, telephone and power cables without stripping the insulation. Allows you to check cables for shorts, breaks and wiring errors, as well as detect voltages up to 480 V AC/DC.
- Professional wire locator with transmitter and receiver for locating Ethernet, telephone and power cables without stripping the insulation
- Detects short circuits, open circuits, reversed wires and incorrect wiring sequence in TEST and SCAN modes
- Supports single-pole and double-pole circuit tracking up to 480 V AC/DC, uses a 33 kHz signal and eight transmitter identification codes
- The receiver has a non-contact AC voltage detection function, adjustable sensitivity and volume, headphone output, flashlight and illuminated displays
Product information | |
|---|---|
| Product type | Wire finder and cable tester |
| Brand | UNI-T |
| Model | UT25CL |

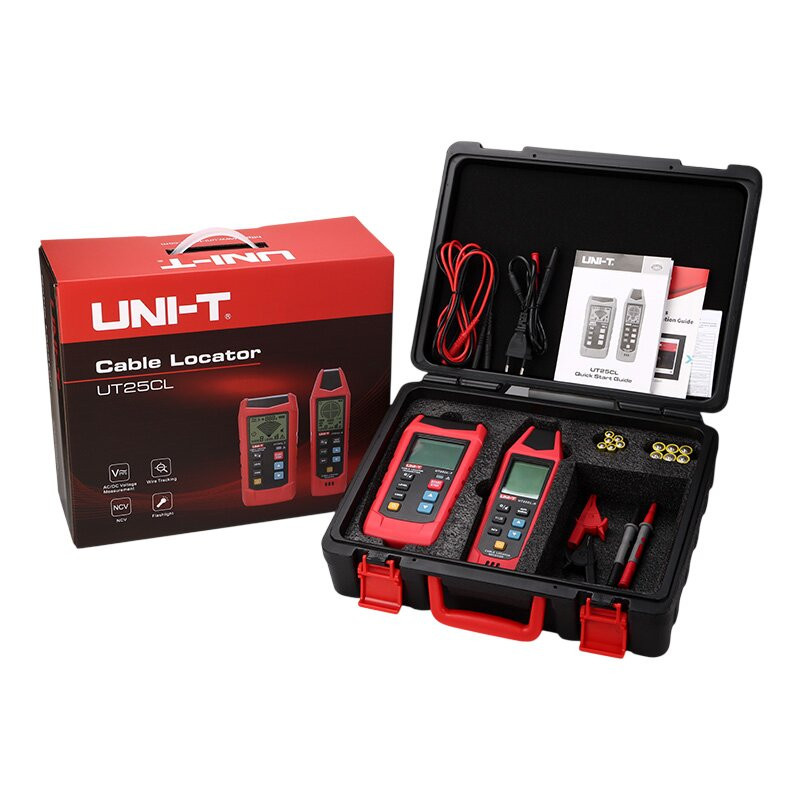

| Included devices | Transmitter and receiver |
| Compatible cables | Ethernet, telephone and power cables |
Technical specifications | |
| 33 kHz | |
| Tracking modes | Unipolar and bipolar tracking |
| Transmitter identification | Eight selectable codes: 0-7; supports up to eight transmitters |
| Receiver AC voltage detection | Non-contact detection from 80 to 1,000 V AC |
| Unipolar tracking depth | Up to 2.5 m, depending on conditions and signal level |
| Bipolar tracking depth | Up to 0.5 m, depending on conditions and signal level |
| Voltage display | LCD voltage display and ELV indicator showing voltage greater than 25V |
| Receiver controls | Three-level sensitivity and volume adjustment |
| Protection class | CAT III 480V; IP54 housing |
Additional features | |
| Verification functions | Detects short circuits, open circuits, reversed wires, and incorrect wire sequence |
| Receiver functions | Headphone output, antenna, flashlight and illuminated display |
| Operating modes | TEST and SCAN, with FAST and SLOW scan options |
Safety warning | |
| Warning | UNI-T Use the UT25CL only to locate and test compatible cables as specified. Observe electrical safety requirements when working near live circuits. Do not exceed CAT III 480 V rating, do not strip cable insulation during testing, and refer work on hazardous electrical installations to a qualified professional. |
| Height | 100mm |
| Length | 400mm |
| Weight | 450 g |
| Width | 200mm |
