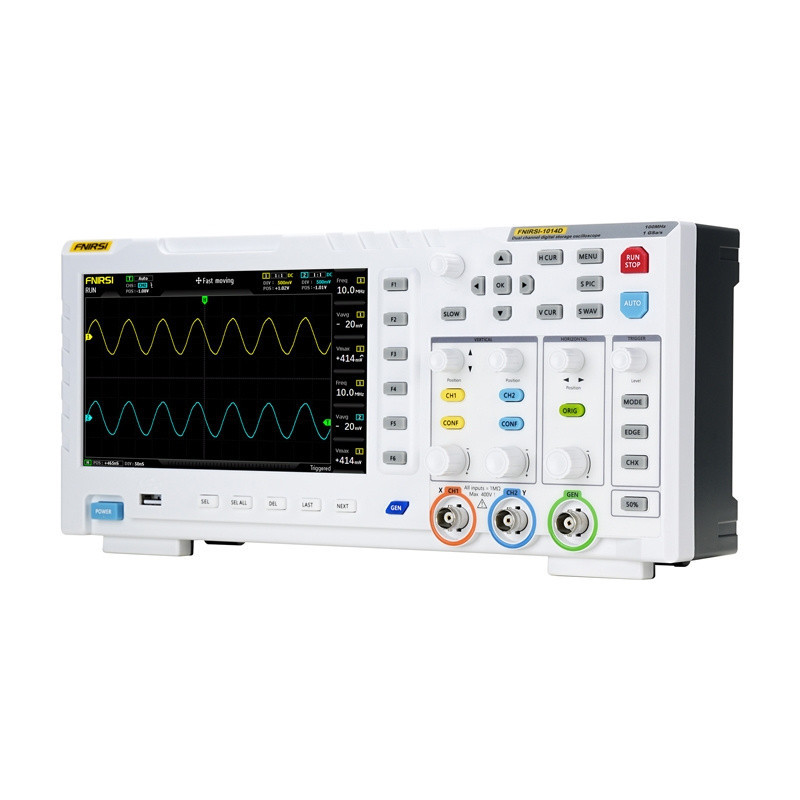

FNIRSI 1014D 2-in-1 Oscilloscope and Signal Generator
FNIRSI 1014D is a compact digital oscilloscope with 100 MHz bandwidth and 1 GSa/s sampling rate, designed for analyzing analog and digital signals. It has a built-in DDS signal generator that supports 14 standard waveforms and allows for precise frequency adjustment.
- Compact 2-in-1 device combining a digital oscilloscope and signal generator, designed for various electronic testing and analysis.
- High sampling rate 1GSa/s and 100 MHz bandwidth, allowing detailed analysis of signals and capture of short-term anomalies.
- Integrated DDS generator with 14 standard waveforms and frequency adjustment for precise signal testing and simulation.
- 7-inch LCD display with intuitive interface for easy operation and automatic adjustment, plus 1GB internal memory for storing waveforms and screenshots.
Features | |
|---|---|
| Product Type | Digital Oscilloscope and Signal Generator |
| Product Brand | FNIRSI |
| Model | 1014D |
Specifications | |
| Channel Number | 2 |
| LCD Screen Size | 7 inches |
| LCD Screen Resolution | 800 × 480 |
| Frequency Response | 100MHz |
| Sampling Frequency | 1 GSa/s |
| Maximum Test Voltage | 1X: 40V, 10X: 400V |
| Input Resistance | 1 MΩ |
| Sensitivity | 50mV ~ 500V |
| Time Base | 50s ~ 10ns |
| Trigger Mode | Single / Normal / Auto |
| Connection | AC / DC |
| Memory Depth | 240 Kbps |
| Waveform Recording | 1000 images + 1000 waveforms |
| Power Source | 5V 2A / 3A / 4A |
| Dimensions | 310 × 145 × 70mm |
Safety Warning | |
| Use the product as intended to avoid potential hazards. | |
| Height | 100mm |
| Length | 300mm |
| Weight | 2100g |
| Width | 400mm |
