Test Equipment - Uni-T UT501B Insulation Resistance Meter 5GΩ 1000V LCD Black
Product reference:
14-6935750525012
The Uni-T UT501B Insulation Resistance Meter measures insulation resistance up to 5GΩ and AC voltage measurement from 30V to 600V, with test voltages of 250V, 500V and 1000V. It features a 2000-digit LCD display, automatic range selection and advanced diagnostic functions to ensure reliable electrical testing.
Test Equipment - Uni-T UT501B Insulation Resistance Meter 5GΩ 1000V LCD Black
Product reference:
14-6935750525012
The Uni-T UT501B Insulation Resistance Meter measures insulation resistance up to 5GΩ and AC voltage measurement from 30V to 600V, with test voltages of 250V, 500V and 1000V. It features a 2000-digit LCD display, automatic range selection and advanced diagnostic functions to ensure reliable electrical testing.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

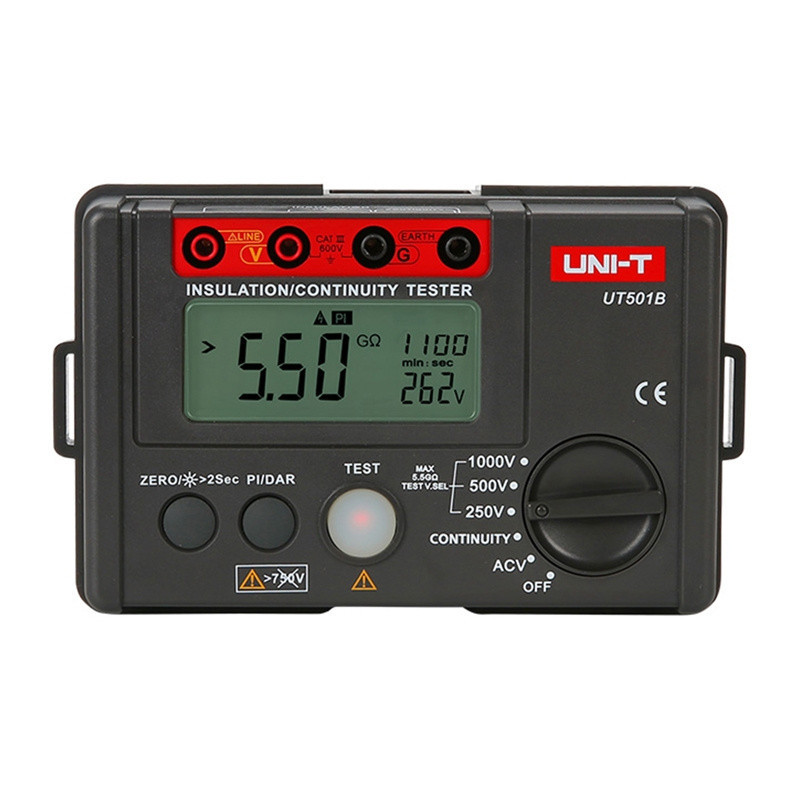

Uni-T UT501B Insulation Resistance Meter
The Uni-T UT501B insulation resistance meter measures insulation resistance up to 5GΩ and AC voltages 30V-600V with test voltages 250V, 500V and 1000V. It features a 2000-digit LCD display, automatic range selection and advanced diagnostic functions for reliable electrical testing.
- Measures insulation resistance up to 5GΩ with optional test voltages 250V, 500V and 1000V.
- Advanced diagnostic features are available, including polarization index (PI) and dielectric absorption ratio (DAR) for detailed analysis.
- Compact and robust design, weighing only 500g, ideal for electricians and technicians working on the go.
- Equipped with a clear 2000-digit backlit LCD display and automatic range selection for convenient use.
Features | |
|---|---|
| Product Type | Insulation Resistance Meter |
| Product Brand | Uni-T |
| Model | UT501B |
Specifications | |
| Testing Voltage Range | 250V / 500V / 1000V |
| Insulation Resistance Meter | By 5GΩ |
| AC Voltage Meter | 30V-600V |
| Short Circuit Current | lt;2mA |
| Power supply | 6 × 1.5V batteries (LR6) |
| Dimensions | 150 × 100 × 71mm |
| Weight | 500g |
Additional Information | |
| Screen | 2000 digit backlit LCD |
| Diagnostic Functions | Polarization Index (PI), Dielectric Absorption Ratio (DAR) |
| Security Features | Overload indicator, high voltage alarm, low battery warning |
| Included Accessories | Test leads, crocodile clips, batteries, carrying strap |
| Height | 100mm |
| Length | 250mm |
| Weight | 700g |
| Width | 150mm |
