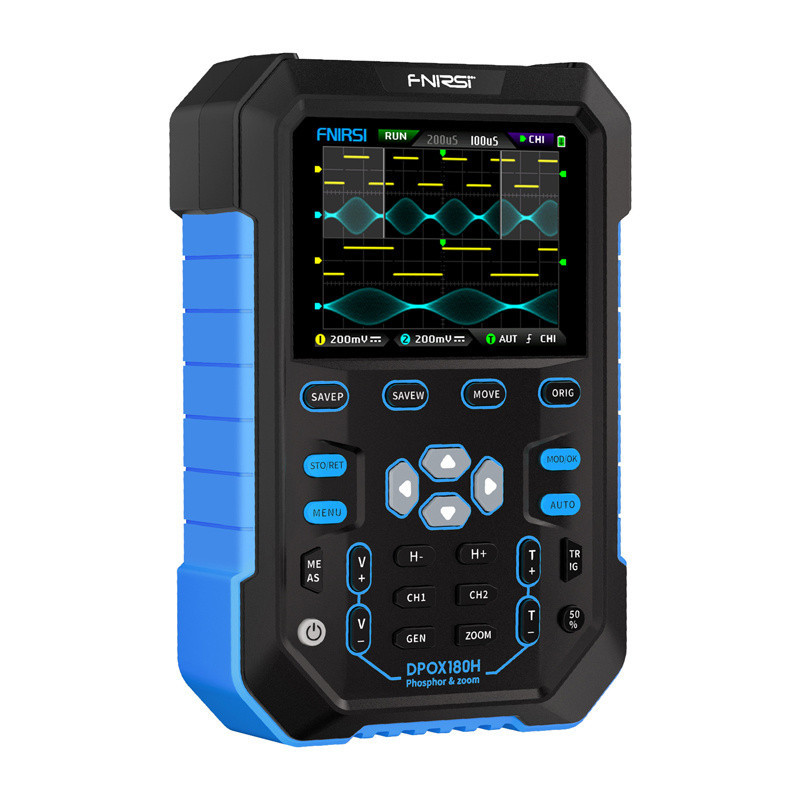

FNIRSI DPOX180H 2-in-1 Portable Digital Oscilloscope
FNIRSI DPOX180H is a portable digital oscilloscope with 180 MHz bandwidth and 500 MSPS sampling rate. It features a built-in 20 MHz function generator and advanced signal analysis capabilities, making it ideal for electronics testing and diagnostics.
- Compact and portable design, ideal for field work and laboratory use.
- 180 MHz bandwidth and 500 MSPS sampling rate for precise signal analysis.
- Integrated 20 MHz DDS function generator with 14 waveforms for various testing.
- High refresh rate of 50,000 wfms/s for fast signal anomaly detection without dead periods.
Features | |
|---|---|
| Product Type | Portable Digital Phosphor Oscilloscope |
| Product Brand | FNIRSI |
| Model | DPOX180H |
Specifications | |
| Number of Channels | 2 |
| Analog Bandwidth | 180MHz (-3dB) |
| Sampling Frequency | 500 MSPS (1 channel) / 250 MSPS (2 channels) |
| Update Frequency | 50,000 waveforms/s |
| Display Technology | IPS LCD |
| Screen Diagonal | 2.8 inches |
| Screen Resolution | 320 × 240 px |
| Internal Memory | 120 Mbit |
| Waveform Recording | Up to 250 groups |
| Screen Capture | Up to 90 files (BMP) |
| Power supply | Li-ion battery |
| Battery Capacity | 3000mAh |
| Battery Life | Up to about 4 hours |
| Charging | 5V/2A (fast charging) |
| Input Protection | Up to 400 V (transmission protection) |
Technical Data | |
| Trigger | Rising edge/falling edge |
| FFT Function | Yes (Fast Fourier Transform) |
| XY Mode | Yes (with digital phosphor) |
| Time Base Zoom | 2× - 1000× |
| Coil Mode | Yes (roll/roller) |
| Signal Generator | DDS (Direct Digital Synthesis) |
| Maximum Generator Frequency | 20MHz |
| Types of Generator Waveforms | 14 (sine, square, triangle, saw, pulse, multi-tone and others) |
| Haircut Function | Yes (waveform clipping) |
| Number of Individual Signals | Up to 500 |
| Height | 100mm |
| Length | 350mm |
| Weight | 700g |
| Width | 250mm |
