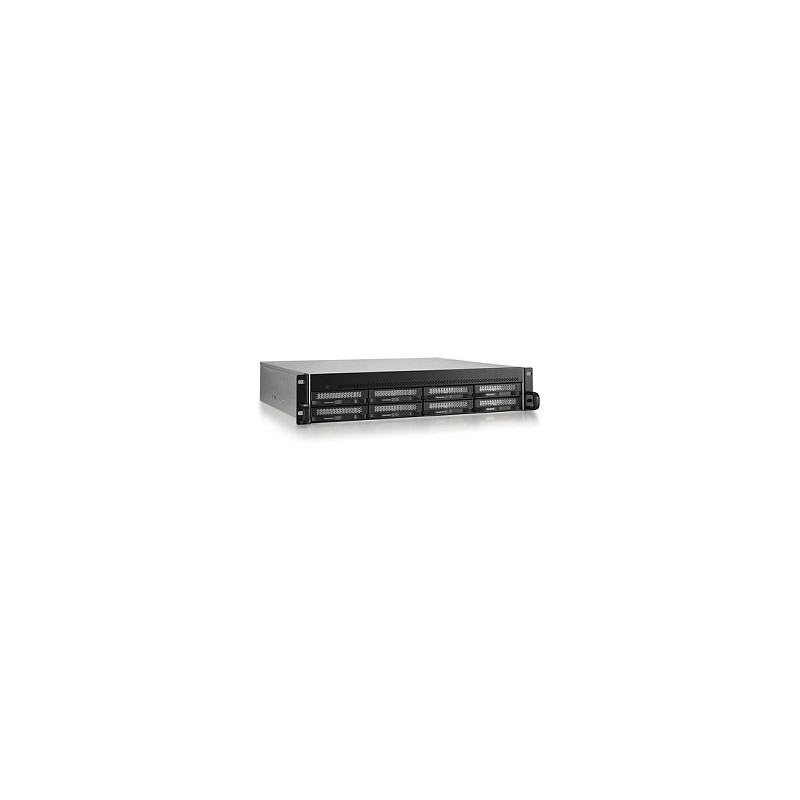

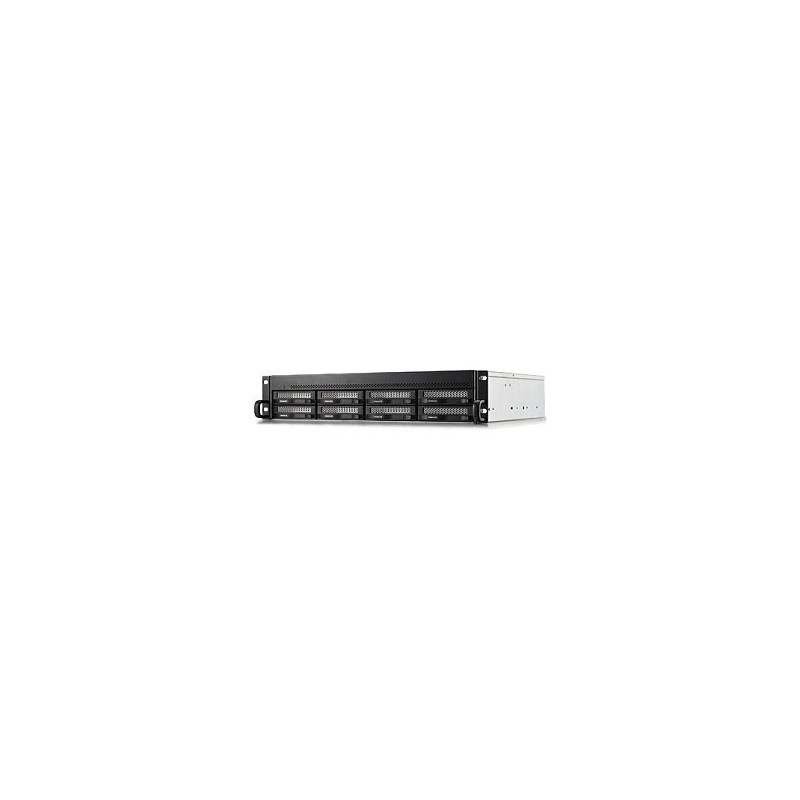

TerraMaster U8-500 PLUS NAS / storage server

TerraMaster U8-500 PLUS. Type: NAS. Chassis type: Rack (2U). Device class: Large Enterprise Business. Processor family: Intel® Core™ i7. Internal memory: 16 GB, Internal memory type: DDR5. Total installed storage capacity: 0 TB
High-Performance Backup Server: The U8-500 Plus NAS storage is powered by Core i7-1255U processor with 10 cores, 12 threads, and turbo speeds up to 4.7GHz. It features Iris Xe Graphics with a 1.25GHz dynamic frequency and supports AES NI hardware encryption. Equipped with 16GB DDR5 memory and dual 10 Gigabit Ethernet ports, it delivers strong performance. Its two M.2 NVMe slots enhance storage efficiency with Hyper Cache. This makes the U8-500 Plus a top choice for high-performance backup solutions for small to medium-sized businesses.
20Gb Lightning-Fast Throughput: The U8-500 Plus NAS server features dual 10GbE Ethernet ports, offering up to 20Gbps bandwidth. With SMB multichannel support, it achieves up to 2090MB/s sequential write speeds and 450MB/s 4K random read/write speeds. This performance ensures seamless image and video handling, making it perfect for film production, post-production, and high-demand virtualized environments.
Flexible Storage Solutions: The U8-500 Plus NAS enclosure supports various RAID configurations, including Single, RAID 0, 1, 5, 6, and 10. The U8-500 Plus 8-bay NAS in 2U rack mount can accommodate up to 8 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs, offering a remarkable maximum storage capacity of up to 192TB (using 24TB HDDs as an example). It features TerraMaster's TRAID/TRAID+ for online capacity expansion, migration, and redundant disk setups. Users can select between ext4 and Btrfs file systems, and expand storage effortlessly with the TerraMaster USB DAS disk array.

Storage

Storage drive capacity: 0 GB
Supported storage drive interfaces: Serial ATA
Storage drive sizes supported: 2.5,3.5"
Maximum supported storage capacity: 192 TB
Number of M.2 (M B) slots: 2
RAID support: Yes
RAID levels: 0, 5, 6, 10, JBOD
Online RAID migration: Yes
Online RAID expansion: Yes
Hot-swap drive bays: Yes
Supported file systems: BTRFS, FAT32, HFS+, NTFS, ext3, ext4
Storage drives installed: No
Total installed storage capacity: 0 TB
Number of storage drives supported: 8
Installed storage drive type: No
Supported storage drive types: HDD SSD

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor boost frequency: 4.7 GHz
Processor cores: 10
Processor threads: 12
PCI Express configurations: 1x8+2x4, 1x16, 2x8
On-board graphics card model: Intel Iris Xe Graphics

Memory

Internal memory: 16 GB
Internal memory type: DDR5
Maximum RAM supported: 64 GB
Memory slots: 4

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
DHCP server: Yes
iSCSI support: Yes
Supported network protocols: CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SMTP
Link aggregation: Yes
Dynamic DNS (DDNS): Yes

Ports interfaces

USB port: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
PCI Express x8 (Gen 3.x) slots: 3

Design

Chassis type: Rack (2U)
Cooling type: Active
Product colour: Black
LED indicators: HDD, LAN, Power

Performance

Type: NAS
Device class: Large Enterprise Business
Backup function: Yes
Backup features: Cloud, USB drive, iSCSI LUN
Third-party support: Yes
Snapshot: Yes
Management protocols: SNMP
Share folder access right management: Yes
Security algorithms: AES
Access Control List (ACL): Yes
Reset button: Yes
On/off switch: Yes
Browser supported: Google Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30, Apple Safari 4.5 +
System log: Yes
Hot spare: Yes
S.M.A.R.T. support: Yes
Share folder: 512
Universal Plug and Play (UPnP): Yes

Software

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight dimensions

Width: 440 mm
Depth: 384 mm
Height: 88 mm
Weight: 6.9 kg

Packaging content

Cables included: AC, LAN (RJ-45)

Other features

Compliance certificates: RoHS
Certification: FCC, CE, CCC, KC, WEEE
