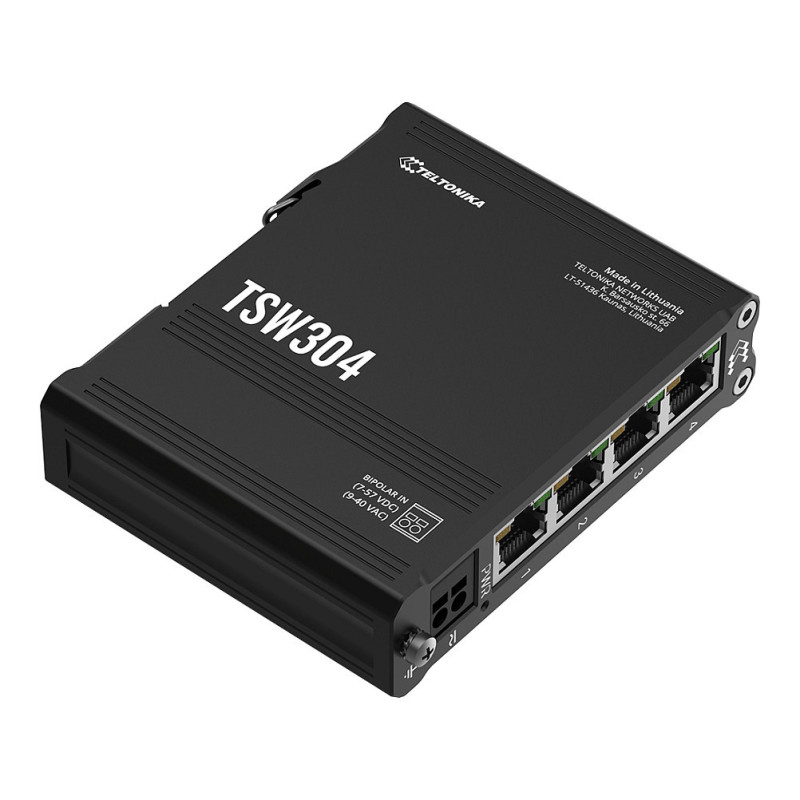

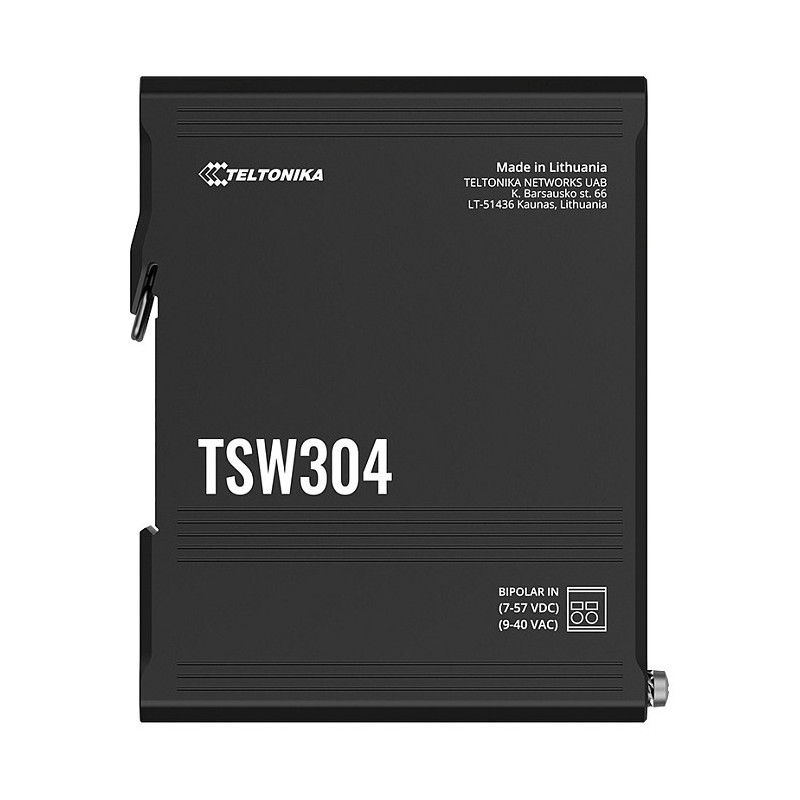

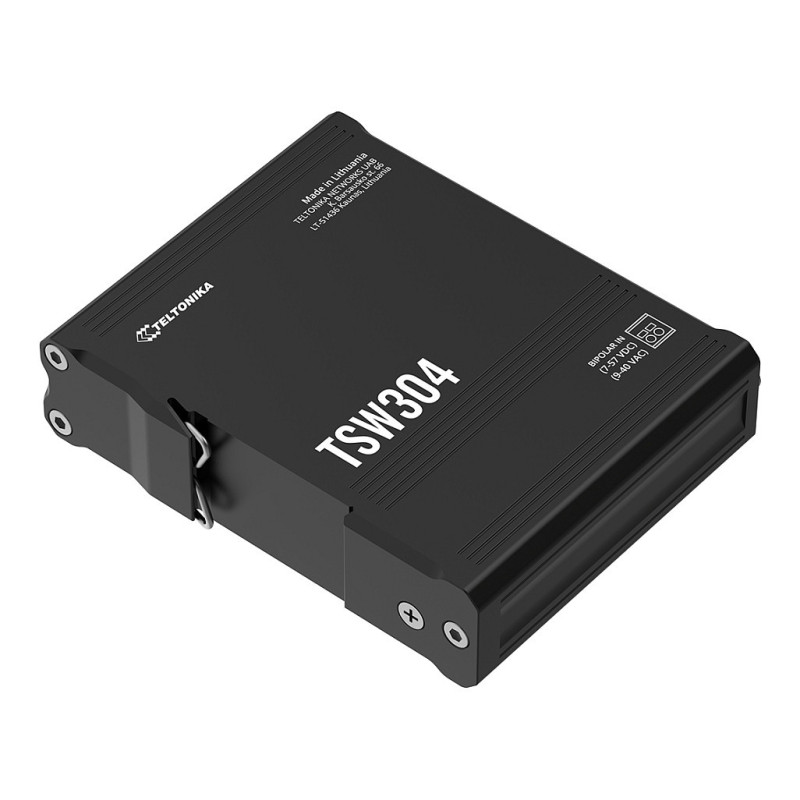

Teltonika TSW304 network switch

Teltonika TSW304. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable

DIN RAIL SWITCH
TSW304 is the tiniest switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
MOUNTING

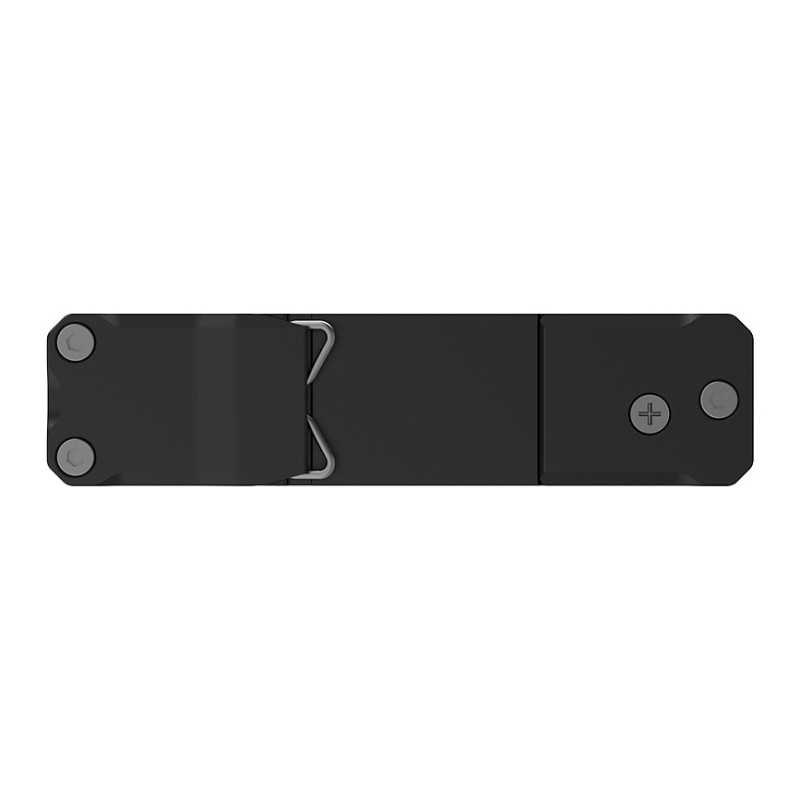

Integrated DIN rail bracket and surface mounting options
COMPACT
102 x 25 x 81.5 mm
GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V
Wide range of supported power supply voltages

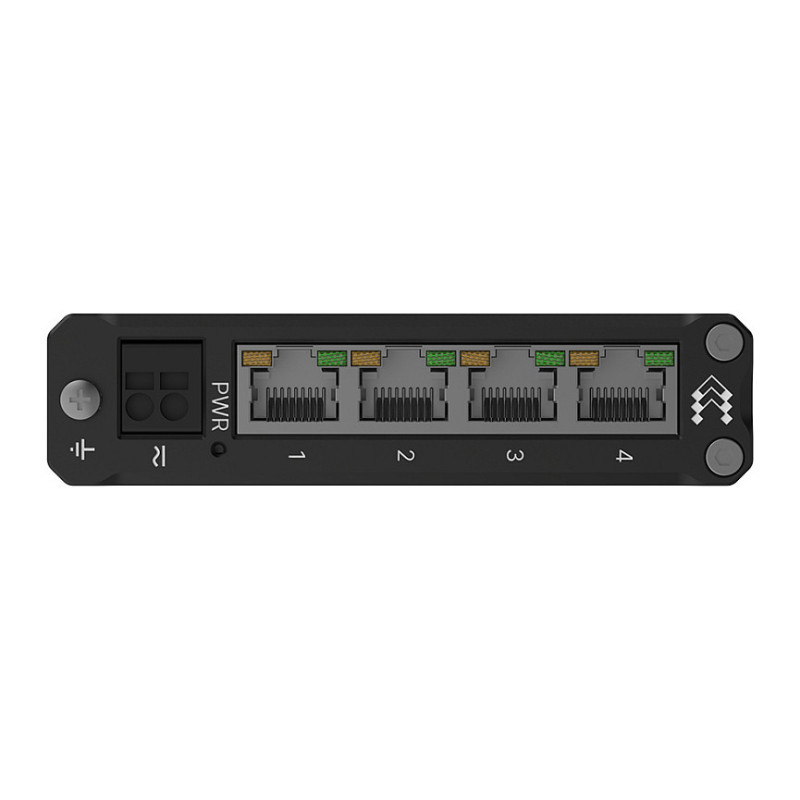

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

Switching capacity: 8 Gbit/s
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 0.128 MB

Design

Product colour: Black
Housing material: Aluminium
LED indicators: Power, Status
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting

Power

Power source: AC/DC
DC input voltage: 7 - 57 V
Input voltage: 9 - 40 V
Power consumption (typical): 0.26 W
Power consumption (max): 1.44 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 102 mm
Depth: 81.5 mm
Height: 25 mm
Weight: 210 g

Certificates

Certification: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
