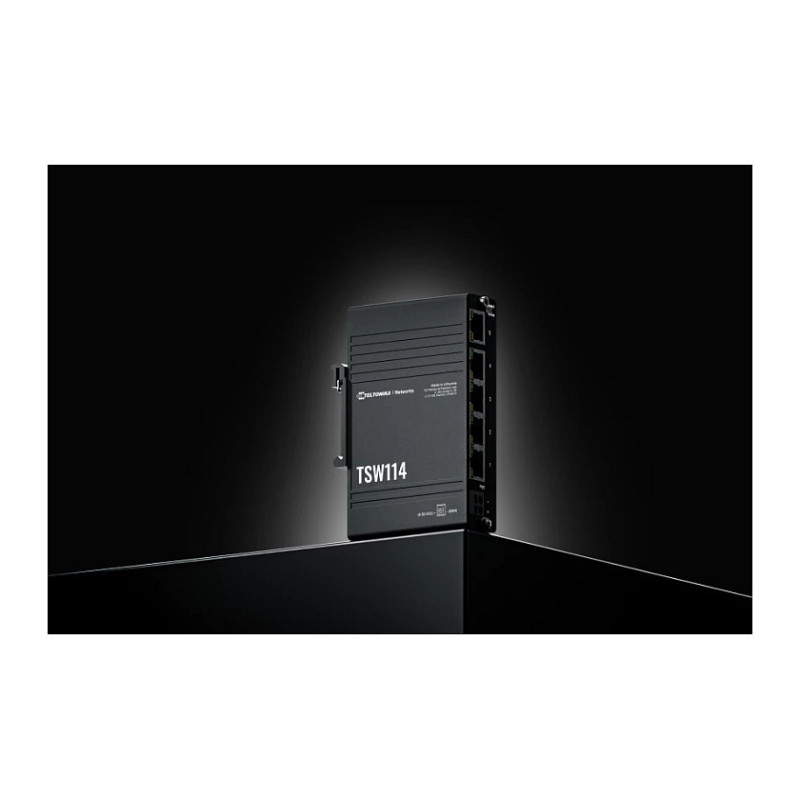

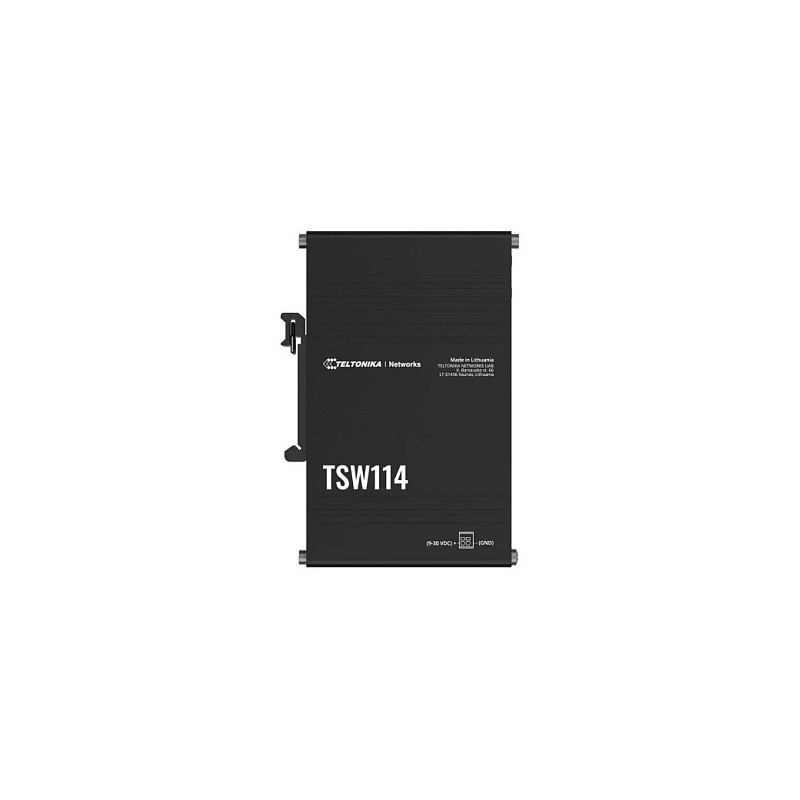

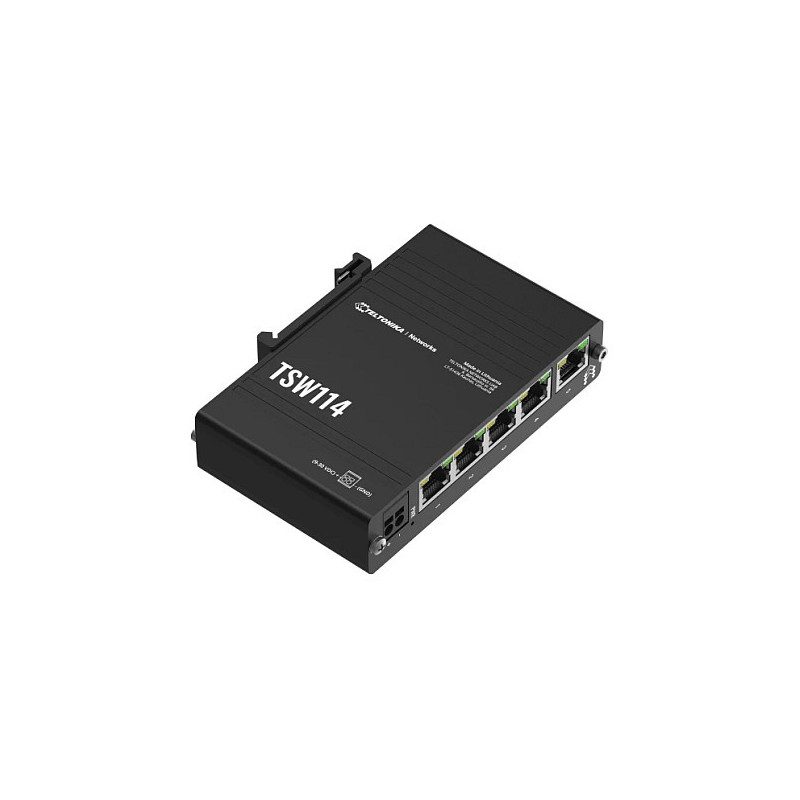

Teltonika TSW114000000 network switch

Teltonika TSW114000000. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Wall mountable

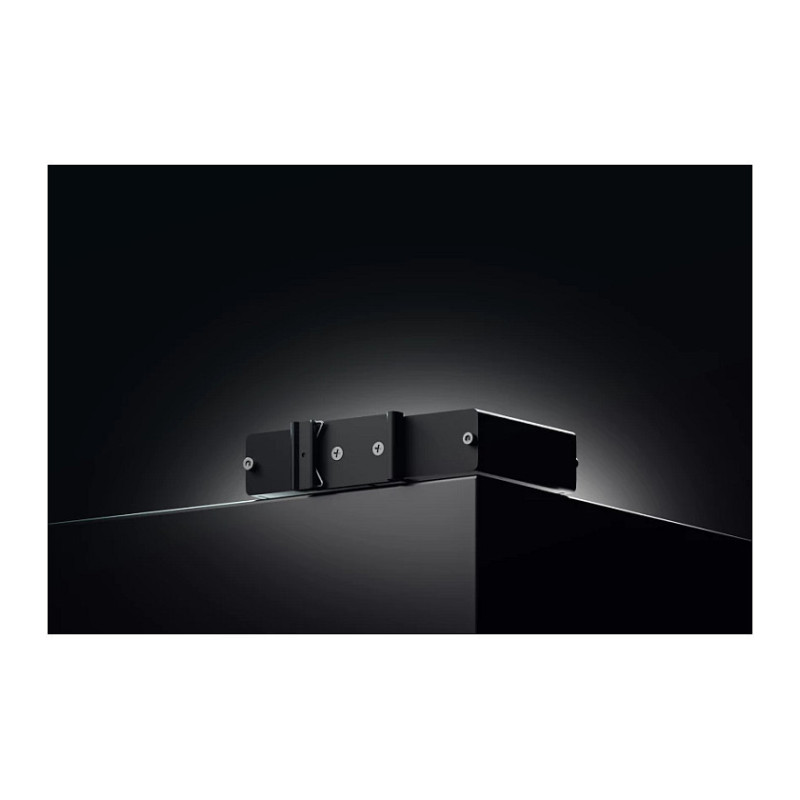

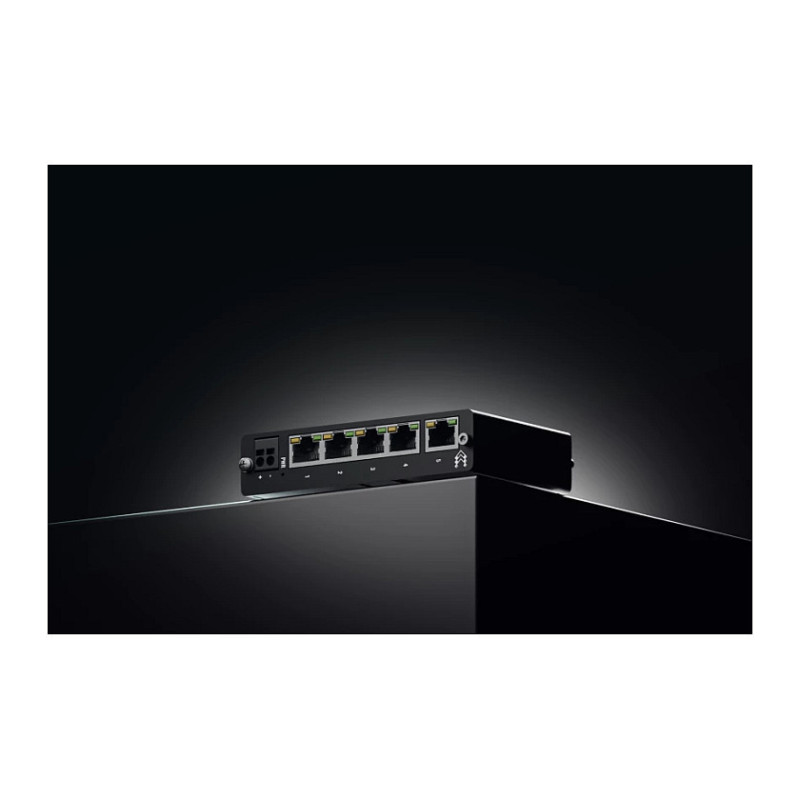

TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.

Management features

Switch type: Unmanaged

Ports interfaces

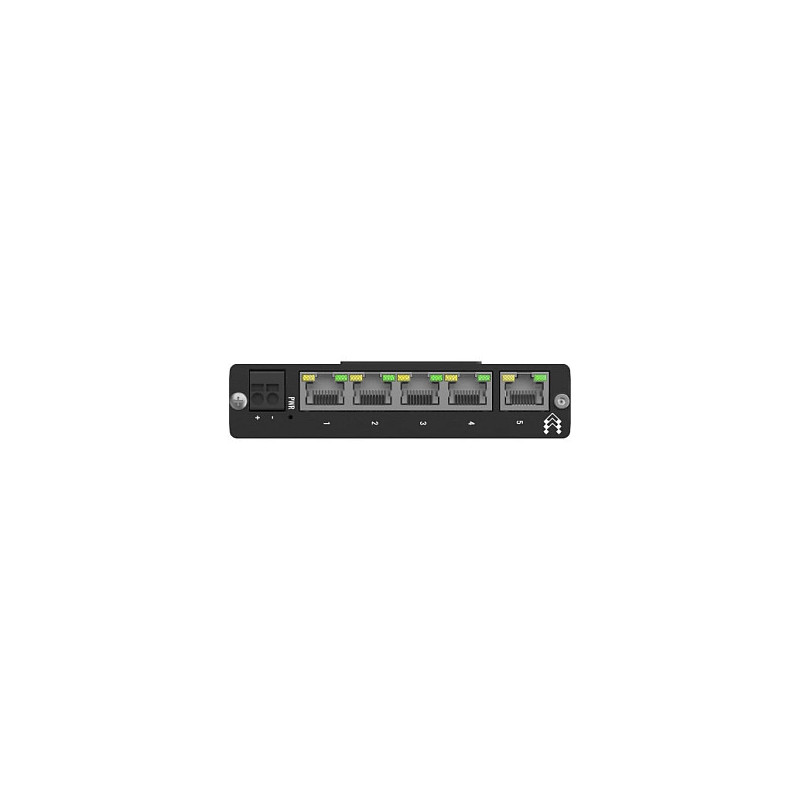

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
10G support: No

Data transmission

MAC address table: 2000 entries
Jumbo frames support: Yes

Design

Rack mounting: No
Stackable: No
Product colour: Black
Housing material: Aluminium
LED indicators: LAN, Power
International Protection (IP) code: IP30
Wall mountable: Yes

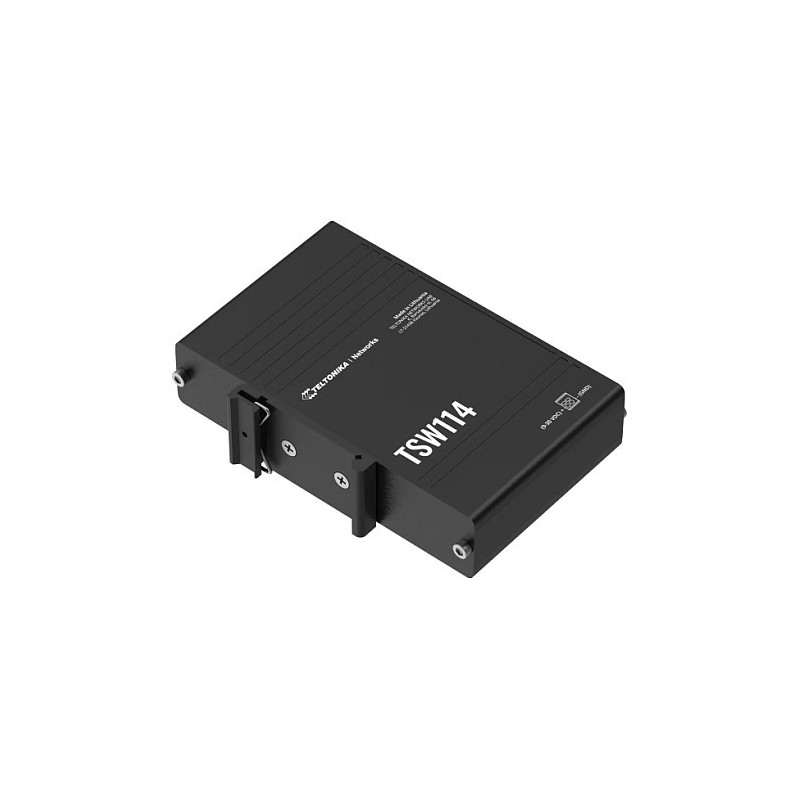

DIN rail mounting: Yes

Power

Power source: DC
Power consumption (max): 2.3 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 113.1 mm
Depth: 80.5 mm
Height: 27.4 mm
Weight: 174 g

Certificates

Certification: CE, REACH, RoHS, WEEEUKCA, FCC, IC, CB, RCM
