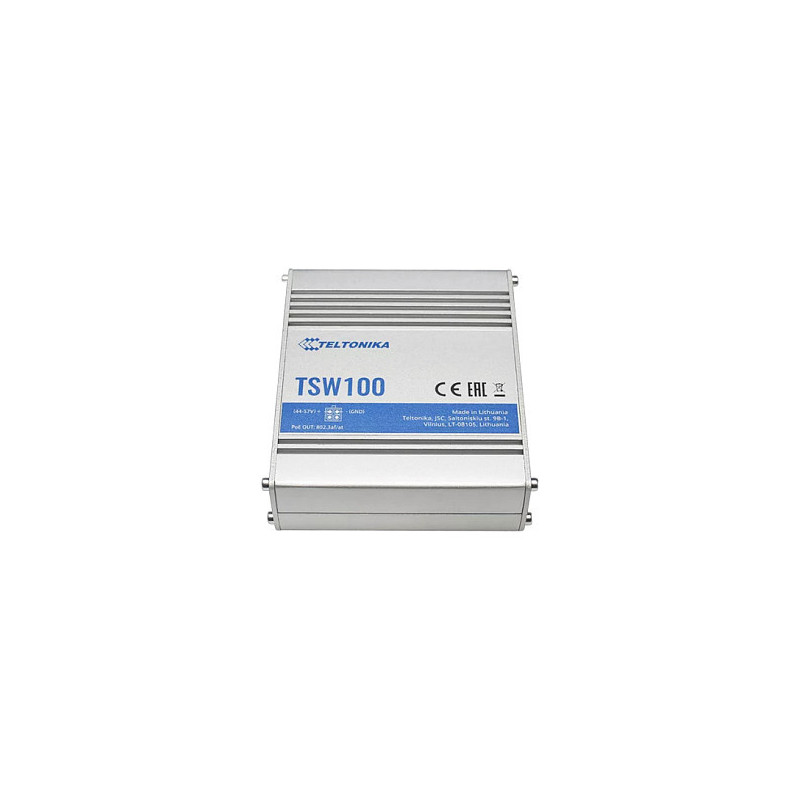

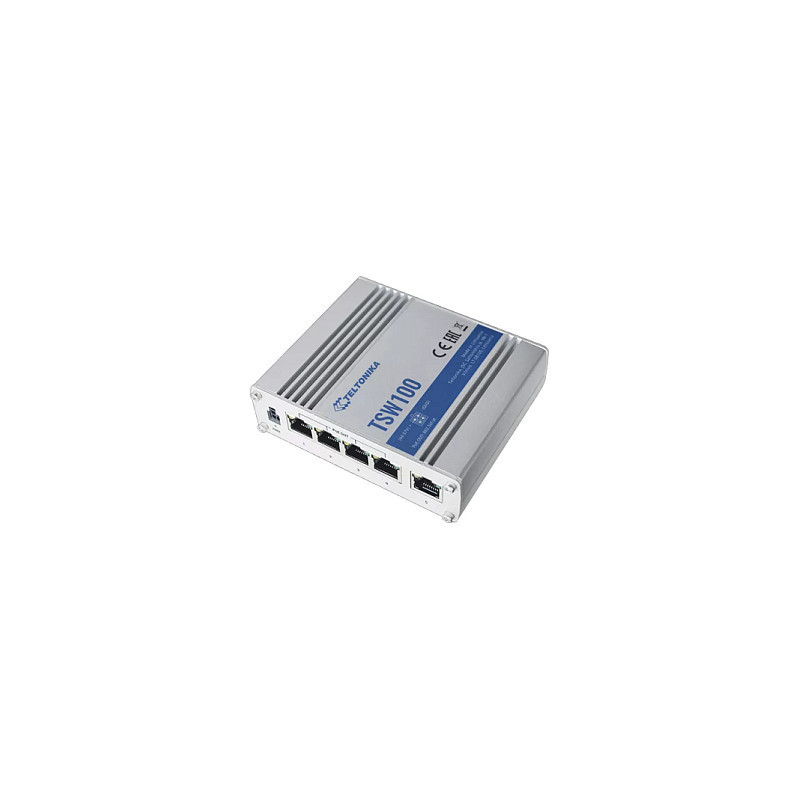

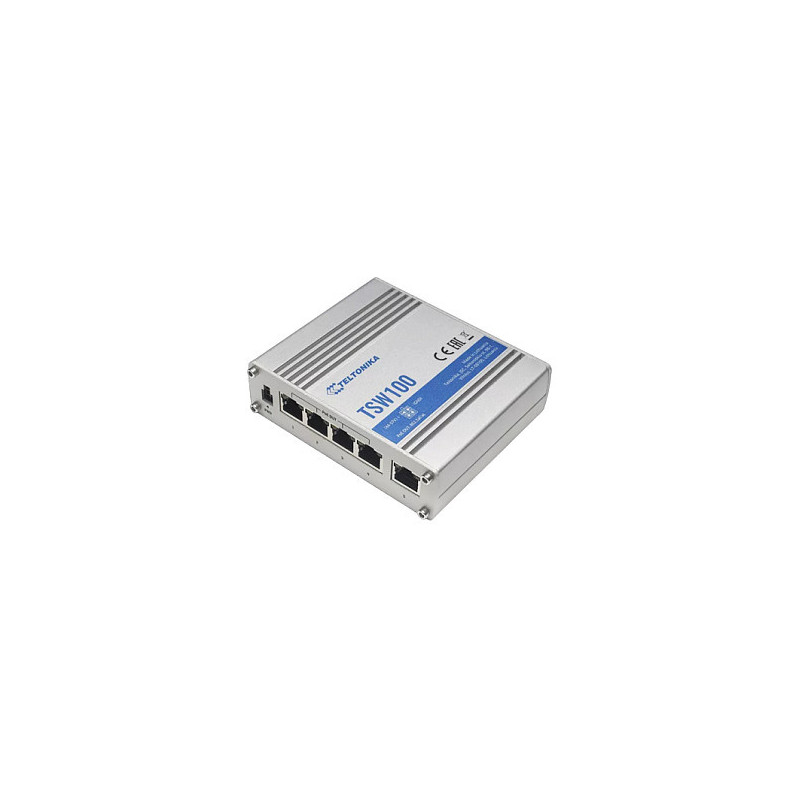

Teltonika TSW100 network switch

Teltonika TSW100. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltage: 7 - 58 V. Power over Ethernet (PoE)
TSW100 - 5-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralization of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Feature: Auto MDI/MDI-X

Data transmission

MAC address table: 2000 entries
Jumbo frames: 9216
Packet buffer memory: 0.128 MB

Design

Product colour: Blue, Metallic
Housing material: Aluminium
LED indicators: Power, Status

Power

DC input voltage: 7 - 58 V
Power consumption (max): 129 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 115 mm
Depth: 95 mm
Height: 32 mm

Logistics data

Harmonized System (HS) code: 85176990
