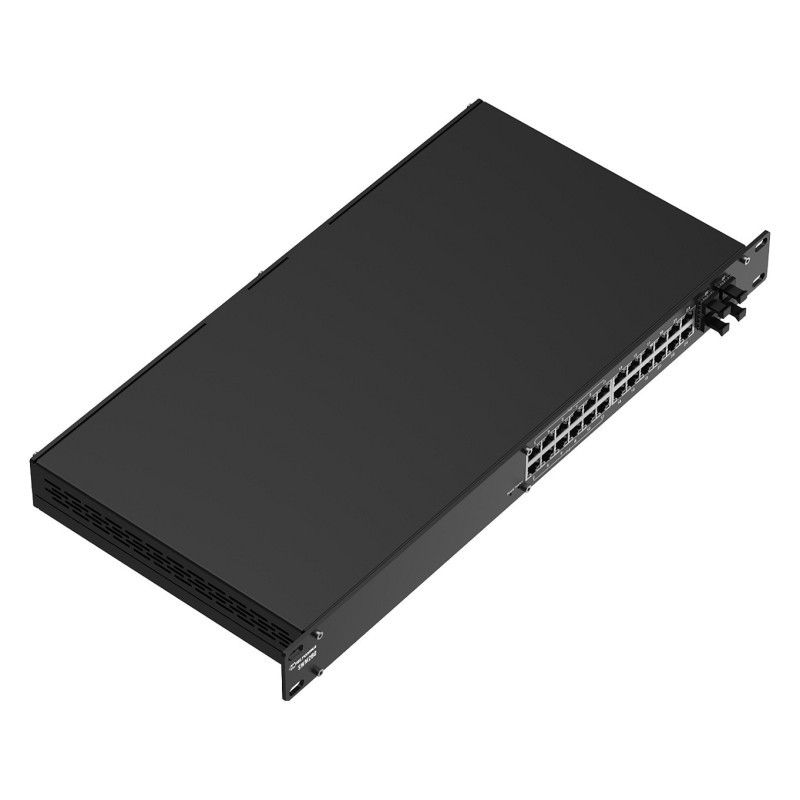

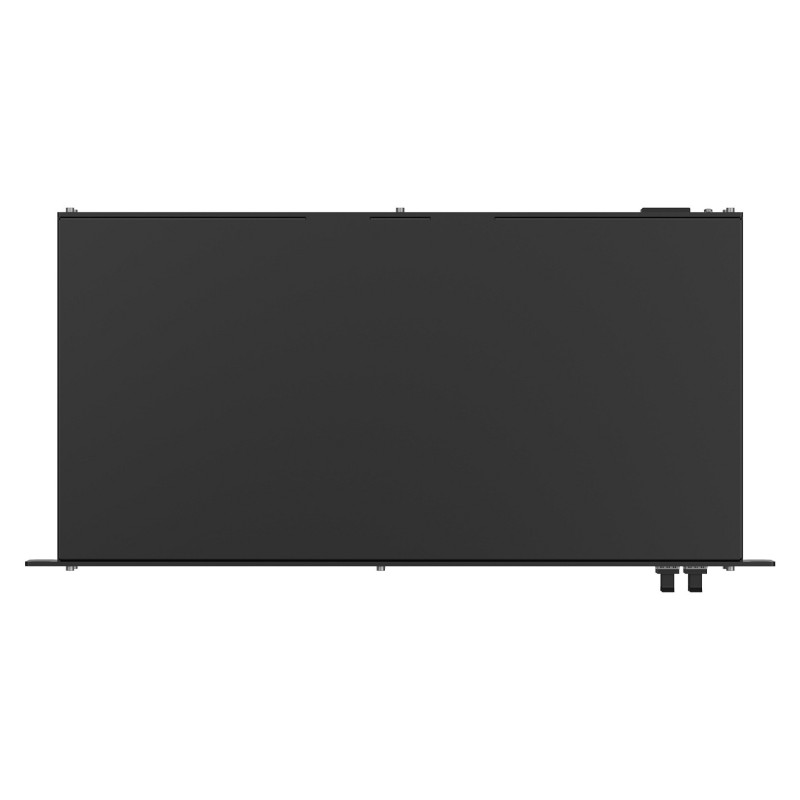

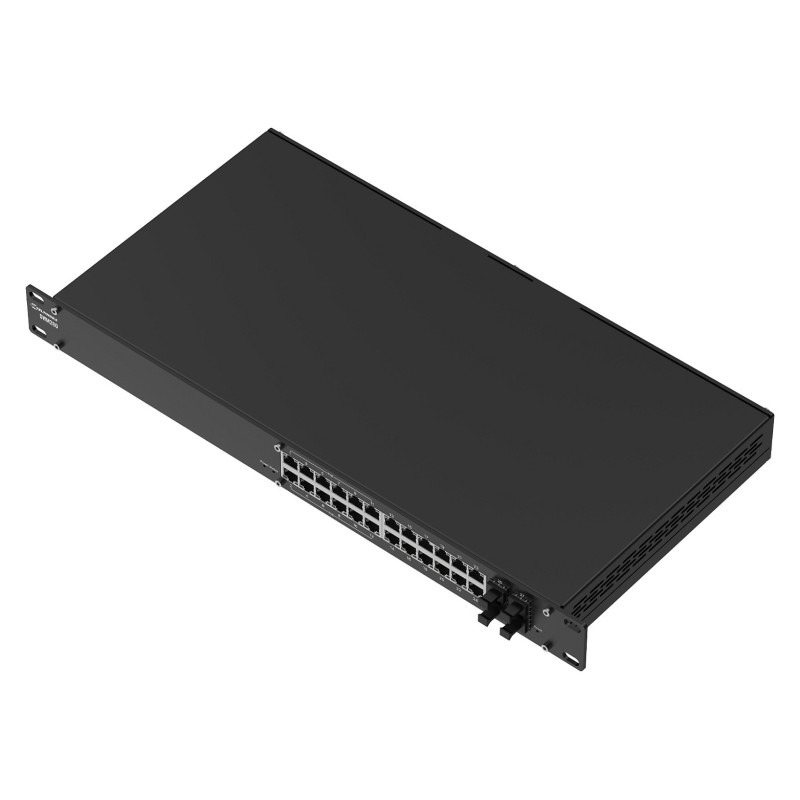

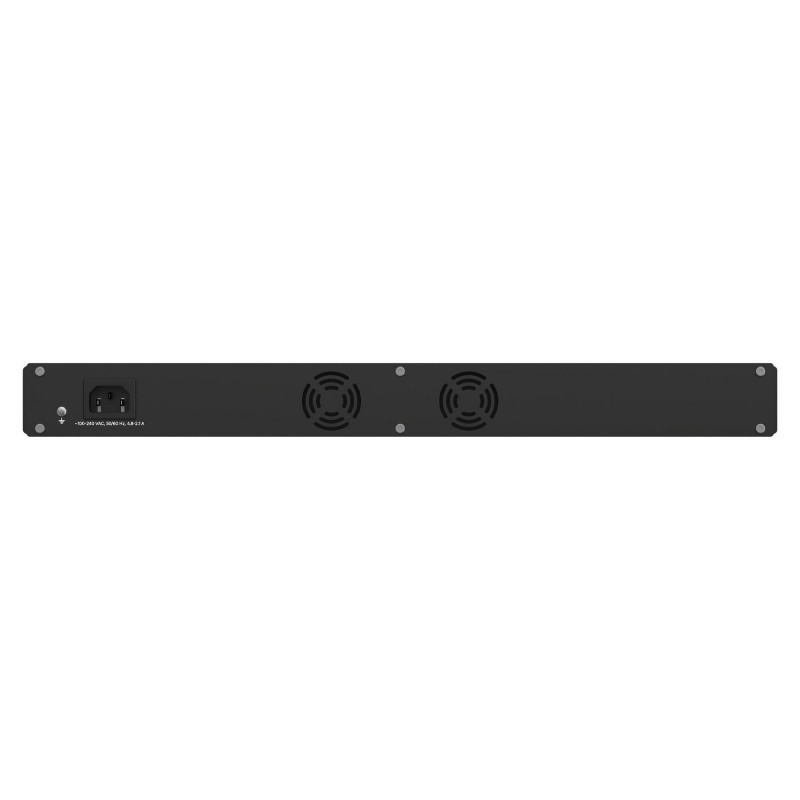

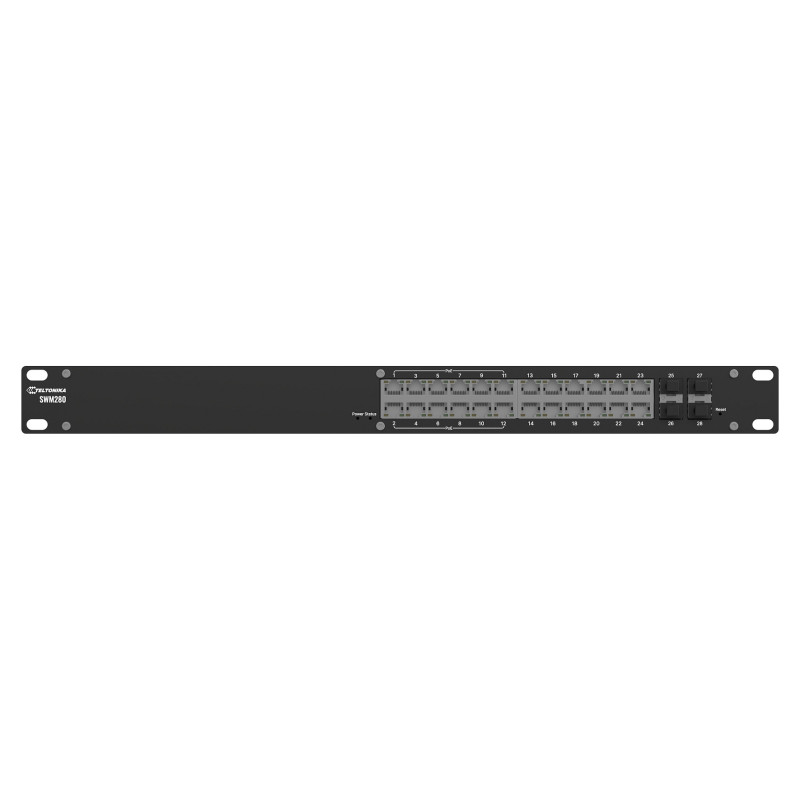

Teltonika SWM280 network switch

Teltonika SWM280. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

The SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4

Network

Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Port mirroring
Feature: IP routing
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 83.33 Mpps
MAC address table: 8 entries
Feature: Jumbo frames support
Jumbo frames: 10000

Security

DHCP features: DHCP client, DHCP server

Design

Feature: Rack mounting
Product colour: Black
Feature: Reset button
LED indicators: Yes
International Protection (IP) code: IP30

Performance

Memory type: DDR3-SDRAM
Internal memory: 128 MB
Flash memory: 16 MB

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 325 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 12
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 300 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 483 mm
Depth: 234 mm
Height: 44 mm
Weight: 1.84 kg

Certificates

Certification: CE, UKCA, CB, RCM, FCC, IC
