Teltonika PR1KCO28 network antenna

Teltonika PR1KCO28. Antenna gain level (max): 28 dBi, Frequency band: 1.57542-1.61; 0.698-0.96/1.71-2.69; 2.4-2.4835/4.9-5.825 GHz, Antenna gain (2.4 GHz): 2 dBi. Antenna type: MIMO directional antenna, Antenna connector type: SMA/RP-SMA, Connector gender: Female/Female. Power consumption: 15 mA, Input voltage: 3-5 V. Compliance certificates: RoHS. Height: 55 mm, Diameter: 11 cm, Weight: 550 g

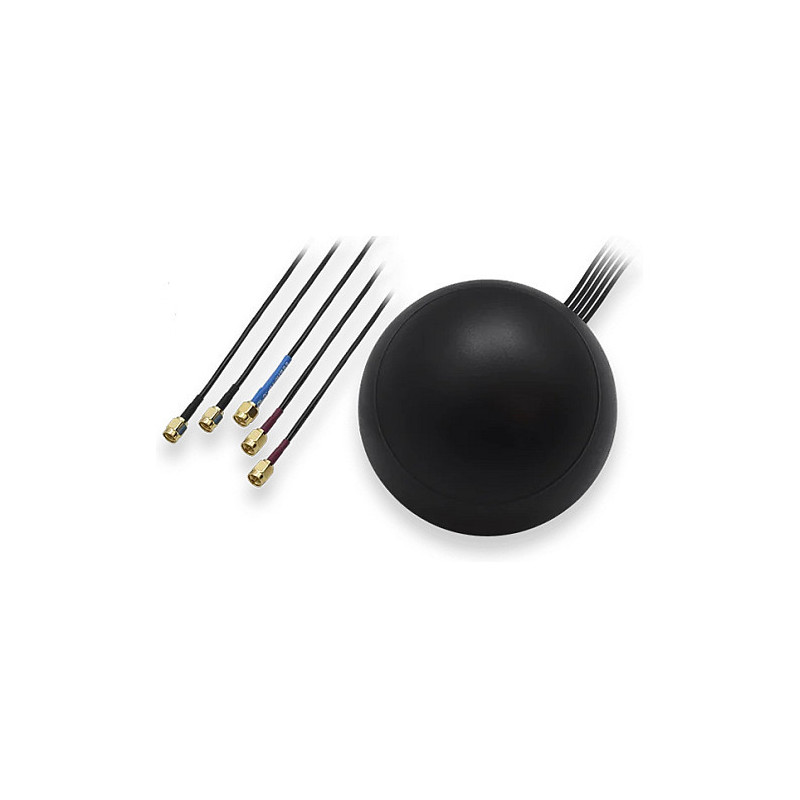

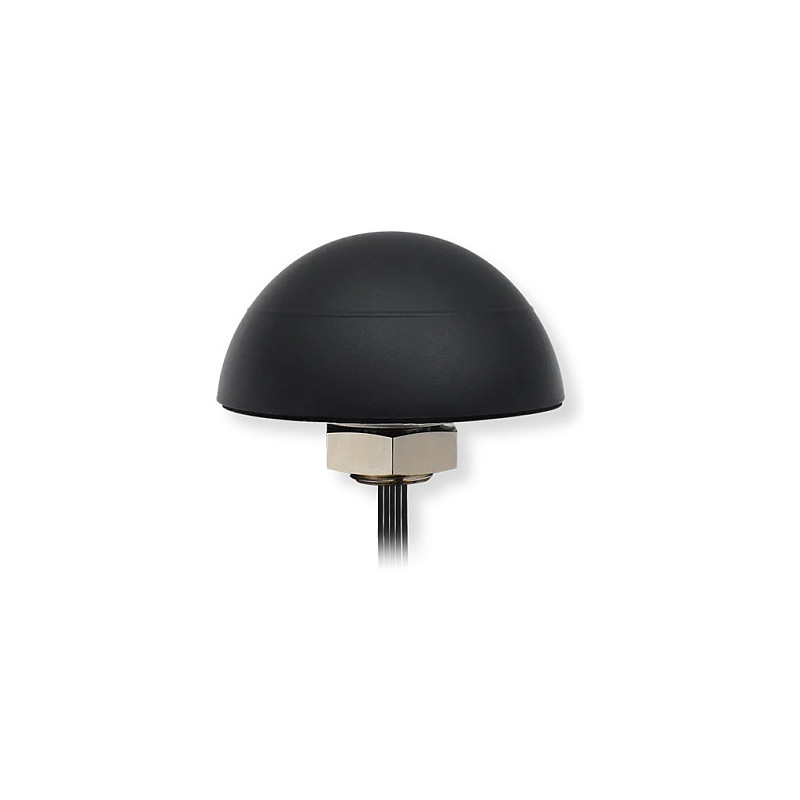

Teltonika Combo LTE/GPS/Wi-Fi antenna
The MIMO Combo antenna consists of 5 integrated antennas: 2 LTE antennas, 2 Wi-Fi antennas and a GPS antenna. It is designed to be mounted on vehicle roofs.

Performance

Frequency band: 1.57542-1.61; 0.698-0.96/1.71-2.69; 2.4-2.4835/4.9-5.825 GHz
Antenna gain (2.4 GHz): 2 dBi
Antenna gain (5 GHz): 2 dBi
Impedance: 50 Ω
Antenna gain level (max): 28 dBi

Features

Antenna type: MIMO directional antenna
Antenna connector type: SMA/RP-SMA
Connector gender: Female/Female
Polarization: Linear polarization
Voltage Standing Wave Ratio (VSWR): 2/2.5/3
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP67
Cable length: 3 m
Cable type: 5x RG174

Power

Power consumption: 15 mA
Input voltage: 3-5 V

Certificates

Compliance certificates: RoHS

Weight dimensions

Height: 55 mm
Diameter: 11 cm
Weight: 550 g

Logistics data

Harmonized System (HS) code: 85177100
