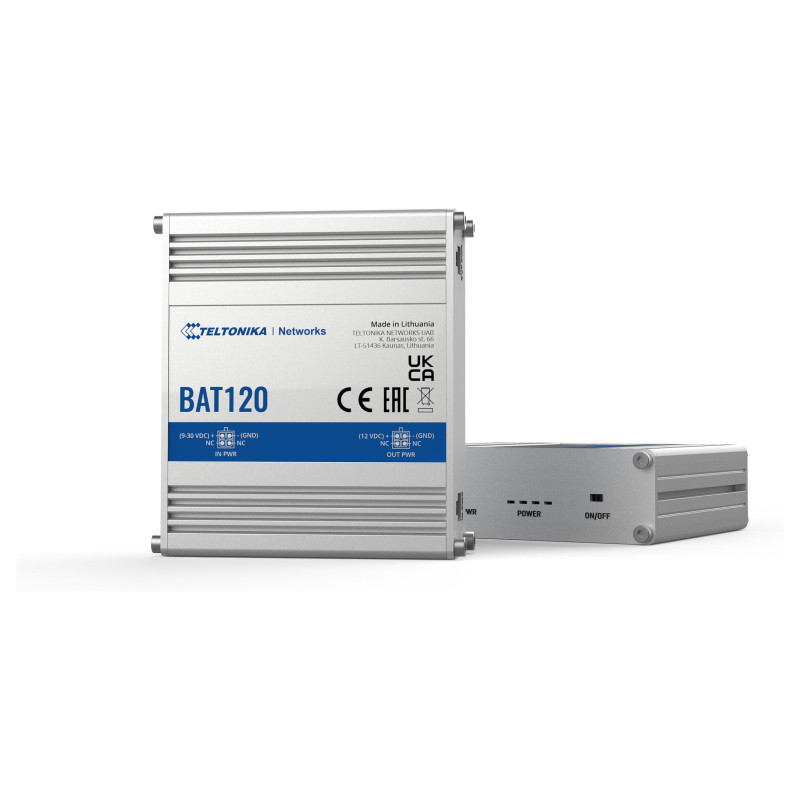

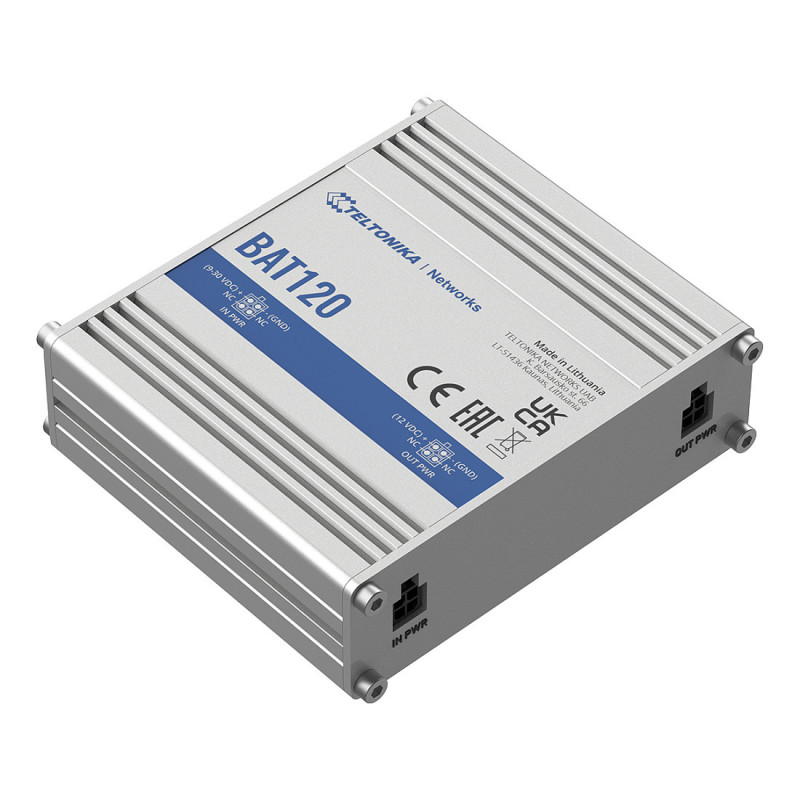

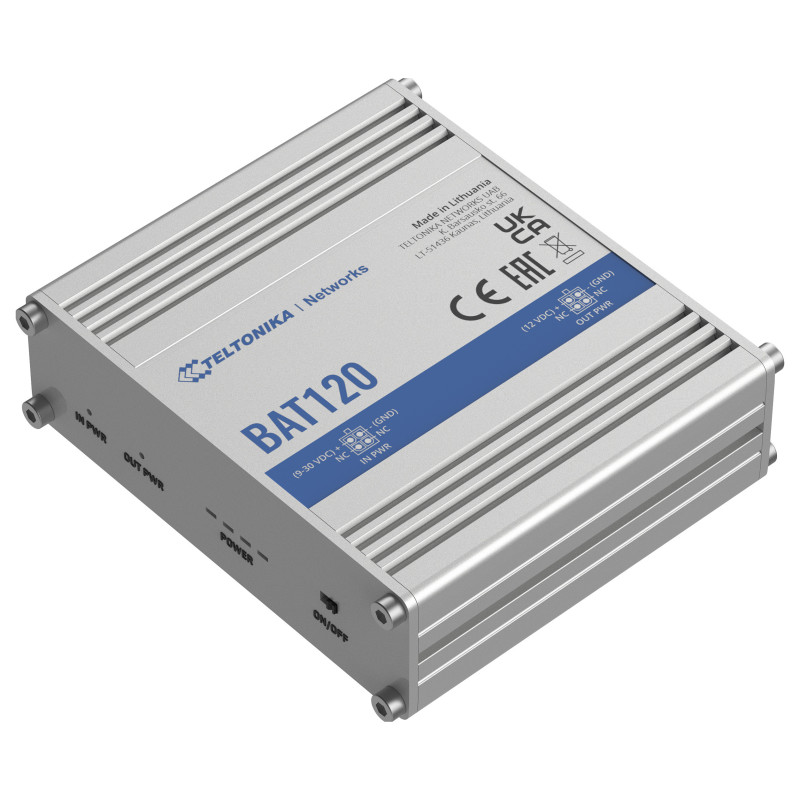

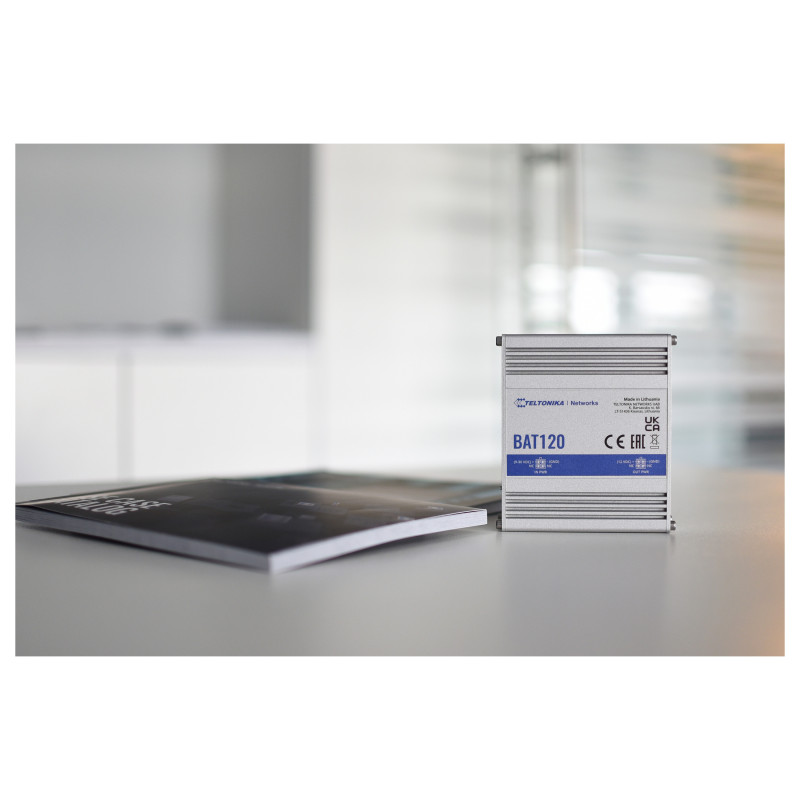

Teltonika BAT120 uninterruptible power supply (UPS)

Teltonika BAT120. UPS topology: Line-Interactive, Output power: 22 W, Waveform: Sawtooth. Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2.3 Ah, Battery voltage: 3.7 V. Form factor: Compact, Product colour: Stainless steel, Housing material: Aluminium. Certification: CE/RED, UKCA, EAC. Width: 100 mm, Depth: 85 mm, Height: 30 mm

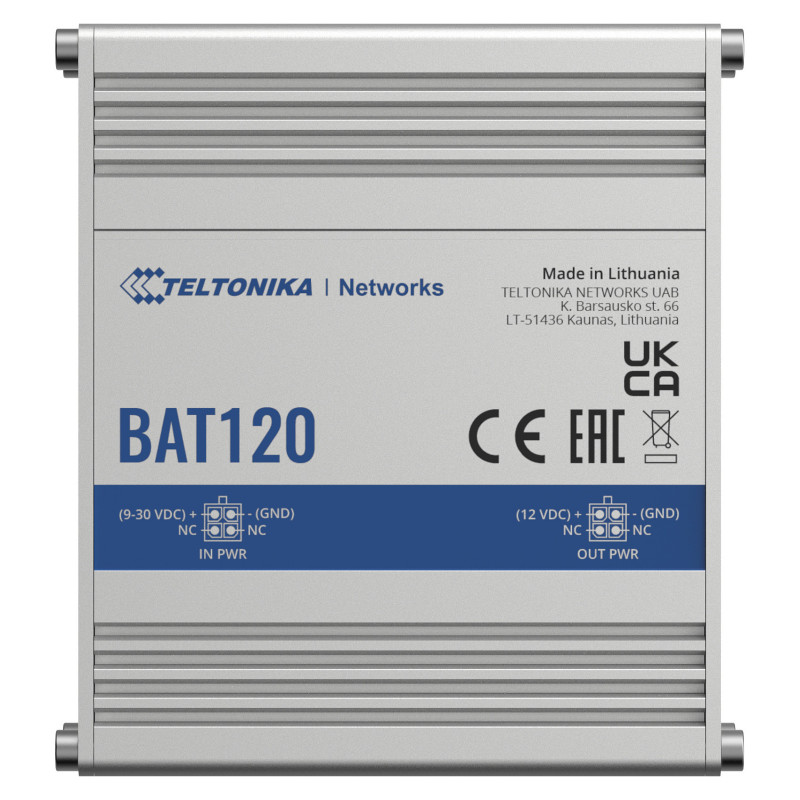

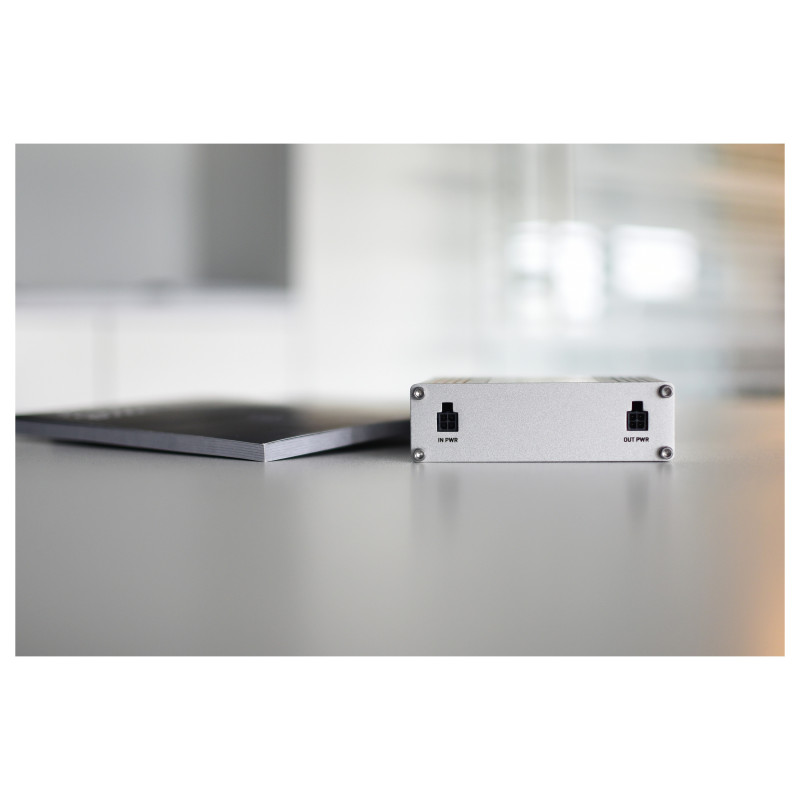

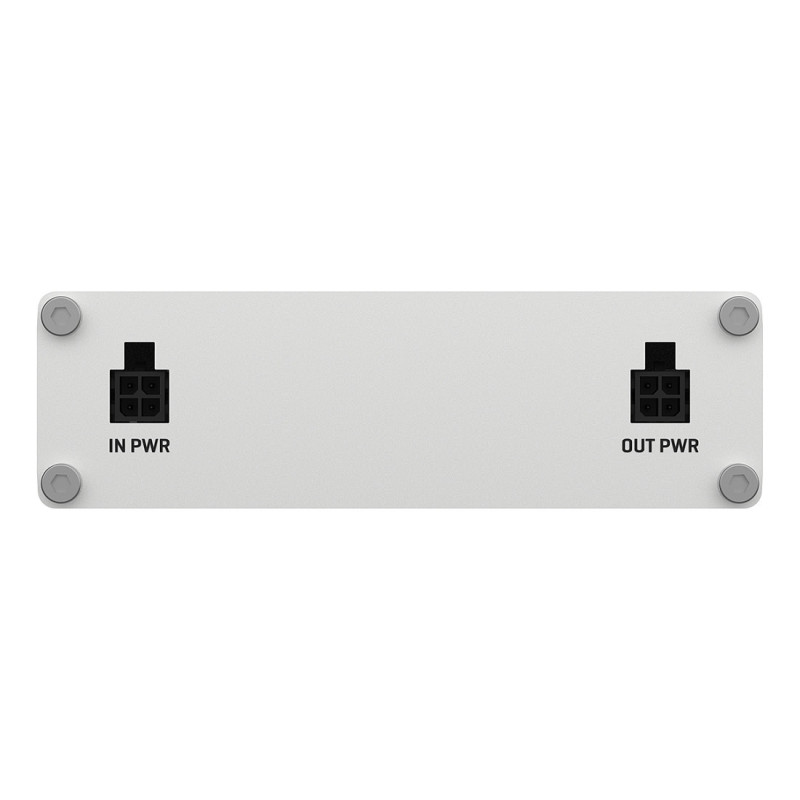

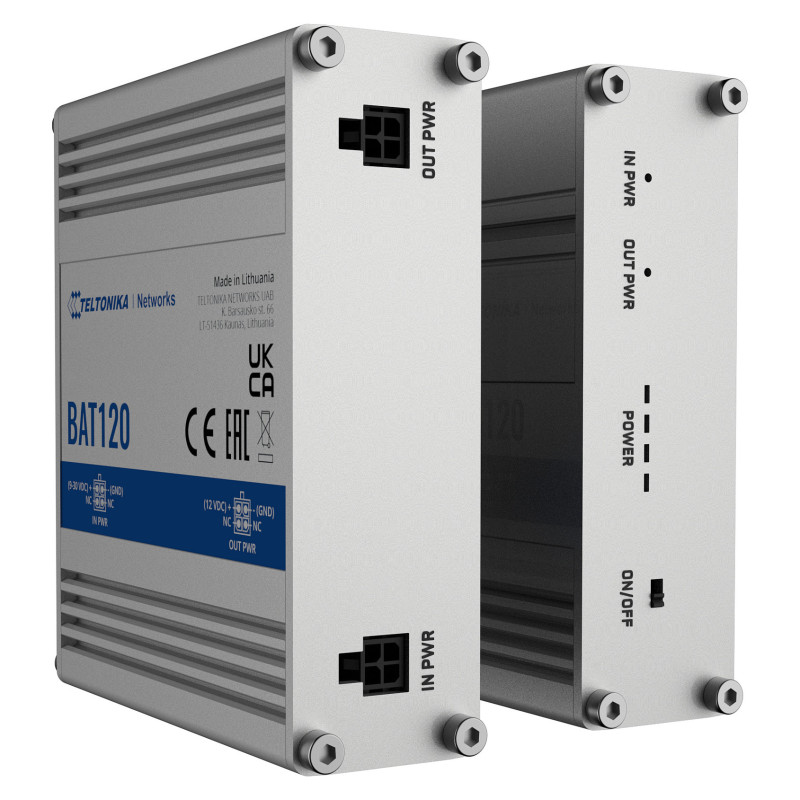

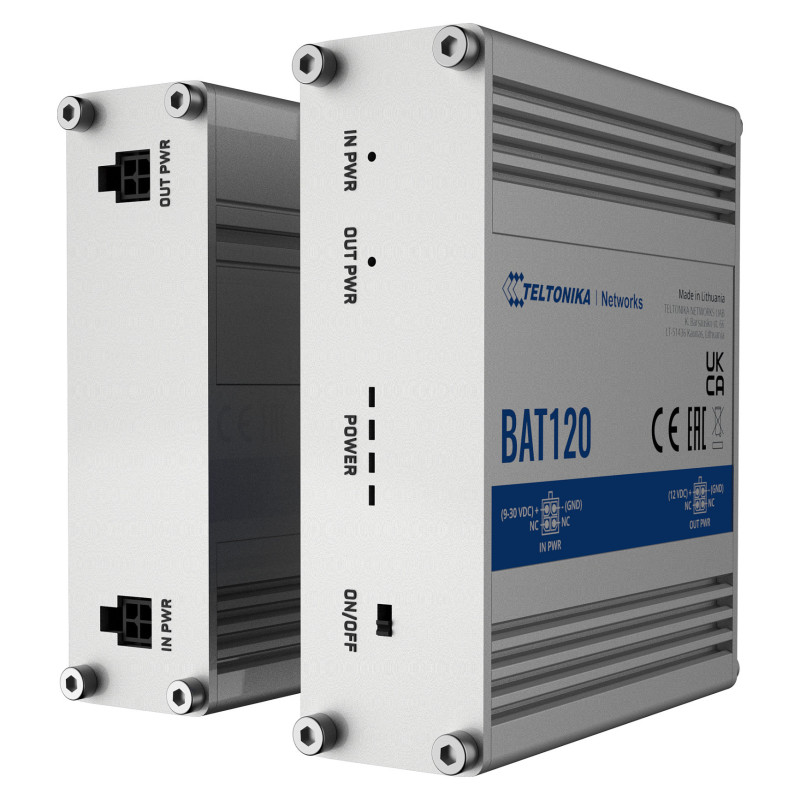

BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery.
Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features.
This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from their Teltonika Networks devices even when power outages or fluctuations occur.

Features

UPS topology: Line-Interactive
Output power: 22 W
Waveform: Sawtooth
Input operation voltage (min): 9 V
Input operation voltage (max): 30 V
Input frequency: 50 Hz
Output operation voltage (min): 9 V
Output operation voltage (max): 30 V
Power protection features: Over current, Over voltage, Reverse polarity
Feature: Audible alarm(s)
Power source type: DC

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 2.3 Ah
Battery voltage: 3.7 V
Number of battery cells: 2

Design

Form factor: Compact
Housing material: Aluminium
Product colour: Stainless steel

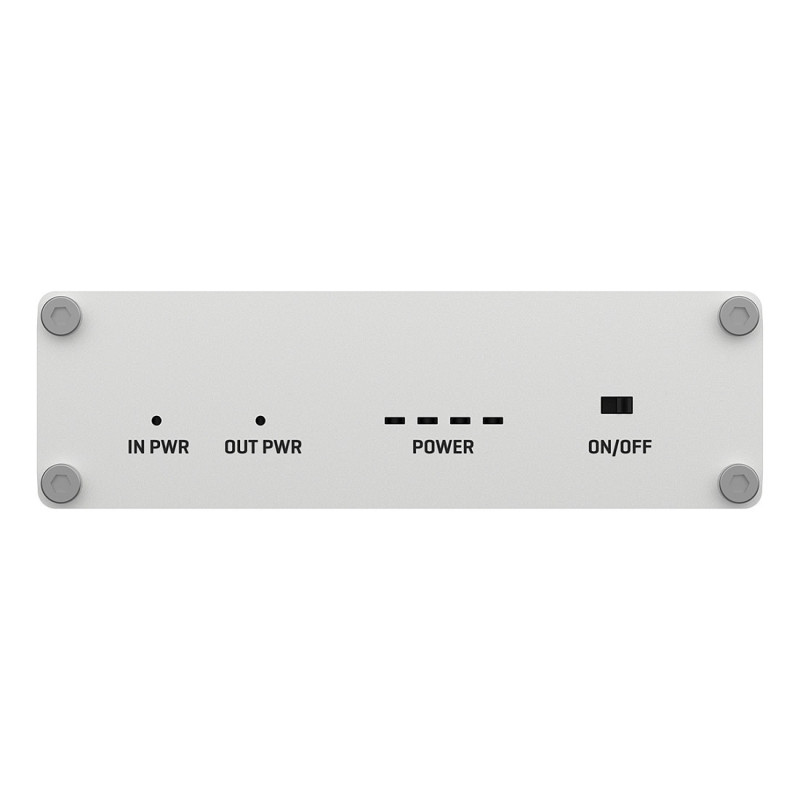

LED indicators: Power, Status
Compatibility: RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Certificates

Certification: CE/RED, UKCA, EAC

Packaging content

Feature: Manual

Weight & dimensions

Width: 100 mm
Depth: 85 mm
Height: 30 mm
Weight: 315 g
