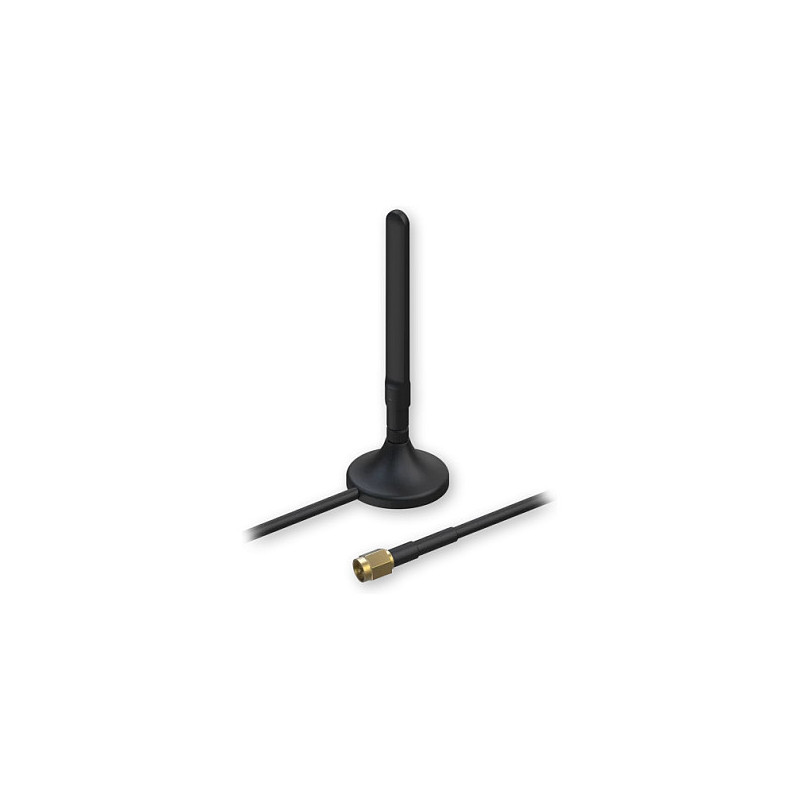

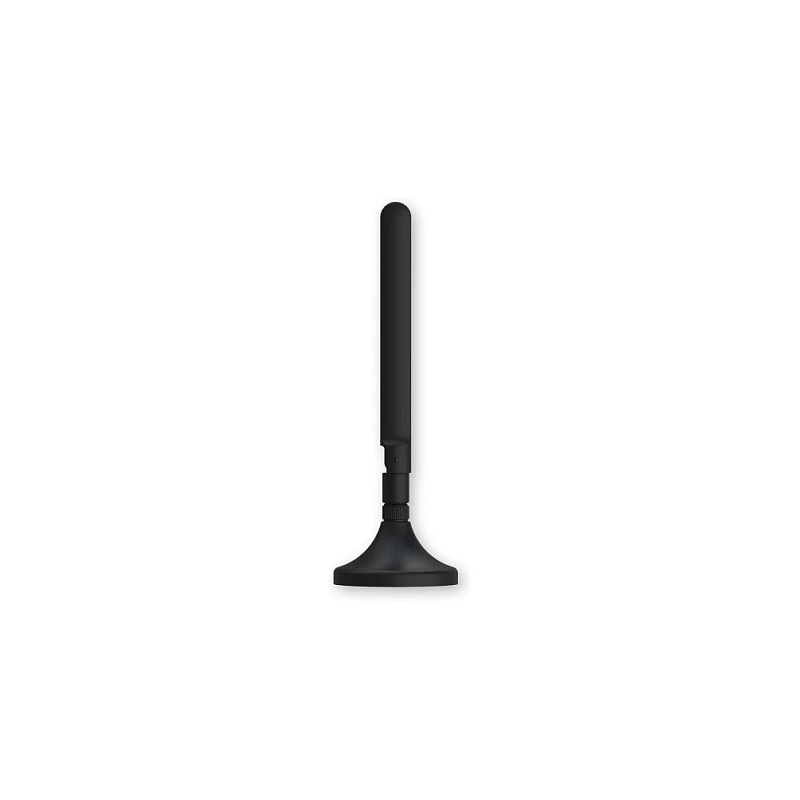

Teltonika 5G Mobile Magnetic SMA Antenna network antenna

Teltonika 5G Mobile Magnetic SMA Antenna. Antenna gain level (max): 3.6 dBi, Frequency band: 0.617 - 0.96, 1.4 - 2.69, 3.3 - 5.9 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Power source type: DC. Compliance certificates: RoHS. Height: 183.4 mm, Diameter: 6 cm, Weight: 150 g

Performance

Frequency band: 0.617 - 0.96, 1.4 - 2.69, 3.3 - 5.9 GHz
Impedance: 50 Ω
Antenna gain level (max): 3.6 dBi

Features

Antenna type: Omni-directional antenna

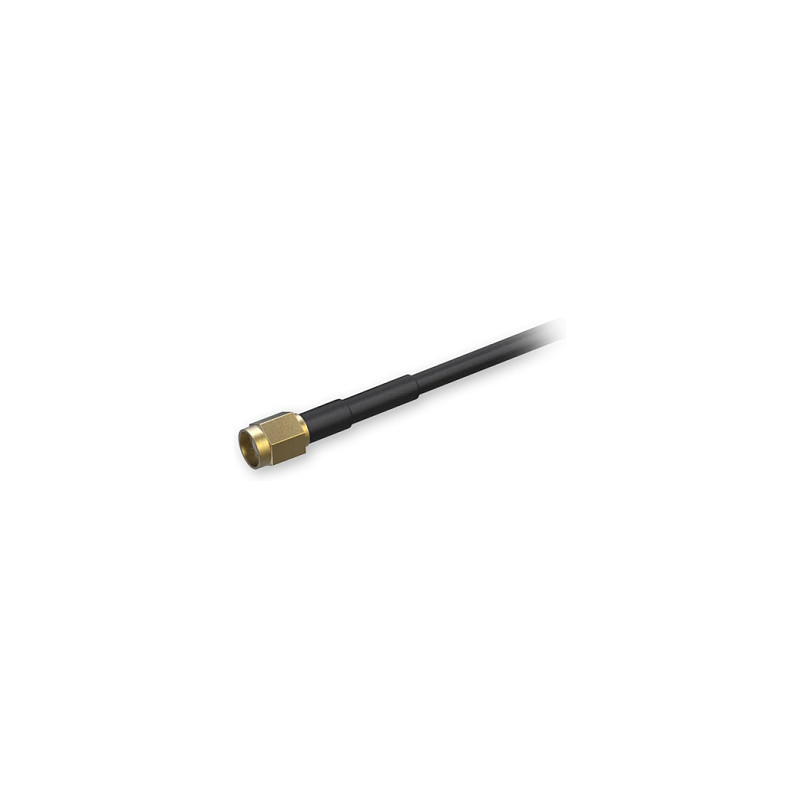

Antenna connector type: SMA
Connector gender: Male
Polarization: Linear polarization
Voltage Standing Wave Ratio (VSWR): 3.5
Product colour: Black
International Protection (IP) code: IP33
Power handling: 20 W
Cable length: 3 m
Cable type: RG-58

Power

Power source type: DC

Certificates

Feature: Sustainability compliance
Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): -20 - 65 °C

Weight & dimensions

Height: 183.4 mm
Diameter: 6 cm
Weight: 150 g

Packaging content

Quantity per pack: 1 pc(s)
