Synology VS600HD network surveillance server

Synology VS600HD. Ethernet interface type: Gigabit Ethernet. Maximum frame rate: 600 fps, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 4K (3840 x 2160), 30Hz 1080p (1920 x 1080), 60 Hz. Power consumption (max): 15.49 W, Power consumption (typical): 5.85 W, Power supply: 36 W. Width: 150 mm, Depth: 150 mm, Height: 41.8 mm. Cables included: AC, LAN (RJ-45)

Display your way
Simplify surveillance management with the VisualStation VS600HD, a PC-less compact surveillance client that pairs with Synology servers to create a comprehensive TV-wall monitoring solution.

High resolution dual display
Up to 4K video output and dual HDMI ports allow you to perform management tasks while monitoring multiple streams in crisp detail.

Minimalist design with TV mount option
The VS600HD can be affixed on the back of a monitor with the included VESA mount for optimized space utilization.

50-channel live view
Keep an eye on every corner of your premises with support for simultaneous monitoring of up to 50 channels at 600FPS/720p, as well as both H.265 and H.264 video compression standards.

Take security to the next level
Integrate the VS600HD as a powerful local management interface in a larger Synology surveillance deployment.

All-in-one security dashboard
Watch live video feeds, scrub through recorded footage, get alerts for security events and suspicious behavior, and control devices from one convenient overview.

Accurate security mapping
Import floor plans of your premises or wider-area maps, maintain a clear overview of camera locations and angles, and see at a glance where events are detected.

Deep learning analytics management
Combine the VS600HD with DVA Series Deep Learning NVRs and Synology Cameras, and leverage AI-powered analytics to boost incident response time.

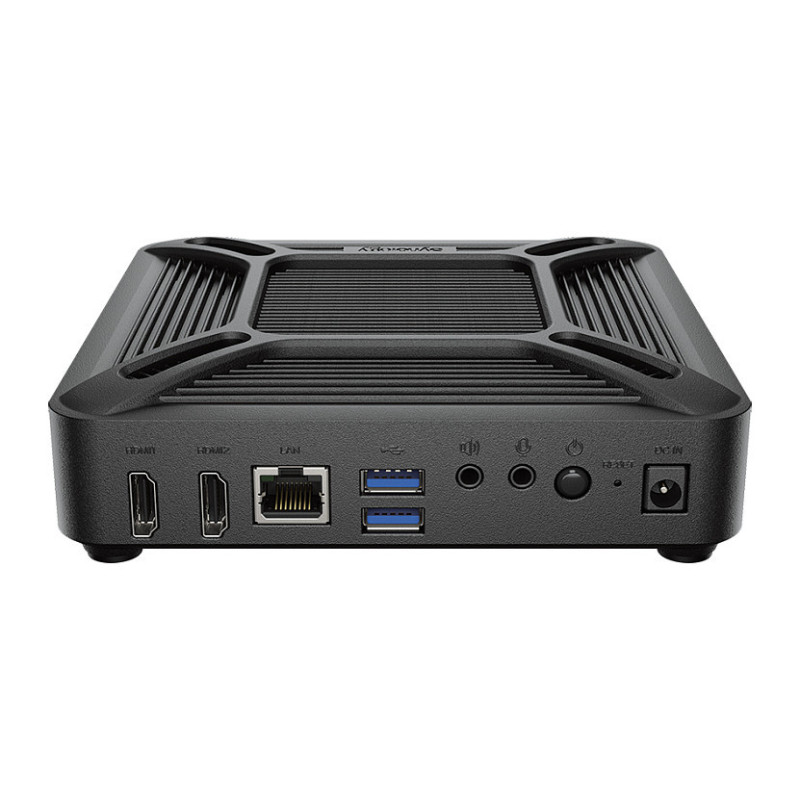

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Ethernet interface type: Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 2
Feature: Audio in/out

Features

Maximum frame rate: 600 fps
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 4K (3840 x 2160), 30Hz1080p (1920 x 1080), 60 Hz
Video compression formats: H.264
Feature: VESA mounting
Certification: FCCUKCACEBSMIEACRCMKCVCCI

Design

LED indicators: Yes

Power

Power consumption (max): 15.49 W
Power consumption (typical): 5.85 W
Power supply: 36 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Technical details

Compliance certificates: National Defense Authorization Act (NDAA)

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 41.8 mm
Weight: 360 g

Operational conditions

Operating temperature (T-T): -20 - 40 °C
Operating relative humidity (H-H): 8 - 80%

Packaging content

Cables included: AC, LAN (RJ-45)
Feature: Quick installation guide
Feature: Mounting kit
